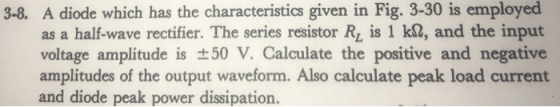

3-8. A diode which has the characteristics given in Fig. 3-30 is employed as a half-wave...
1. A half wave rectifier is supplied from a 100Vms source. For a load consisting of a 60V battery fed through a 2Ω resistor as shown in Fig. I 2Ω D+ + VR() bat Fig. 1 For the rectifier shown in Fig....
1. A half wave rectifier is supplied from a 100Vms source. For a load consisting of a 60V battery fed through a 2Ω resistor as shown in Fig. I 2Ω D+ + VR() bat Fig. 1 For the rectifier shown in Fig. 1, determine (a) a time varying expression for the current flowing into the battery 70.7sine -30 25.1 154.9) (b) (c) the average power flow into the battery (574W) the average power dissipation in the resistor (617W) A half...
breakdown, with respect to the input voltag. 4. BONUS: Fig. 5 presents a half sinusoidal, with...
breakdown, with respect to the input voltag. 4. BONUS: Fig. 5 presents a half sinusoidal, with 2V peak-to-peak, no DC offset. Fig. 5 presents a half wave rectifier. We assume Vin here is aw the Vout waveform when the diode has 0.7V voltage drop. Diode + 7 + vin Load Svout AC Voltage vir Source Fig.5. Half wave rectifier circuit
done on pspice thank you Part IV: Diode Rectifiers Procedure: 1. Build the circuit model for...
done on pspice thank you
Part IV: Diode Rectifiers Procedure: 1. Build the circuit model for full-wave diode rectifier in PSpice as shown in Fig. 4. The value of the load resistor is 10 k22. The input AC voltage source (VSIN in PSpice) is configured at 100 Hz and 20 V (peak-to- peak) in sinusoidal waveform. O 10K V.(t) V(A) A Figure 4. Circuit configuration for full-wave diode rectifier 2. Run the simulation and save the input and output voltage...
QUESTION 5 (15 points) a. You have a power supply which is a full-wave rectifier with a capacitor filter. It operates f...
QUESTION 5 (15 points) a. You have a power supply which is a full-wave rectifier with a capacitor filter. It operates from the mains and provides an output of Voc-20 V with 20% ripple, when the load current is 2 A Calculate the maximum and minimum values of the output waveform of this power supply. b. Now you will design a series voltage regulator between the power supply described in part (a) and an electronic device operating at 12 VDC...
Design a FULL WAVE BRIDGE RECTIFIER circuit that will: Take 120volts ac, 60 hz, sinusoidal waveform...
Design a FULL WAVE BRIDGE RECTIFIER circuit that will:
Take 120volts ac, 60 hz, sinusoidal waveform and convert
it to a “regulated “dc value
giving 12 volts +, - 1 volt across a 2000-ohm output
load resistor with no more than 2%
ripple voltage.
You may assume:
a. An ideal power transformer as discussed in class.
b. For hand computations, you must assume a diode given by
Figure 4.8 page 185.
c. A filter capacitor sized per the textbook equation...
Consider a 4-diode bridge rectifier that rectifies a +-240V square wave within a UPS. For now,...
Consider a 4-diode bridge rectifier that rectifies a +-240V square wave within a UPS. For now, assume a 100-ohm resistive load and draw the circuit. Model the forward characteristics of each diode with an on-voltage of 0.5 volt plus an internal resistance of 1 ohm. Model the reverse (leakage) characteristics of each diode as ideal. Draw tidy graphs of the input, output as well as (NB careful!) diode voltages. Show calculations to obtain graph values. Also draw tidy graphs of...
3. Perform the following calculations for the full-wave rectifier with filter capacitor in Fig. 5 Determine...
3. Perform the following calculations for the full-wave rectifier with filter capacitor in Fig. 5 Determine the maximum value of vo(f), vOpeak a. b. Determine the peak-to-peak ripple voltage, vr, peak-peak Determine the approximate average value of vo(t). You do not have to use integration. Assume the ripple waveform has an ideal sawtooth shape with each "tooth" being a right triangle having amplitude vr peak-peak as in Fig. 6 C. d. Sketch a realistic ripple waveform superimposed on the unfiltered...
Use matlab to solve Project A half-wave diode rectifier shown in the following Fig. 1 is...
Use matlab to solve
Project A half-wave diode rectifier shown in the following Fig. 1 is an electrical cirouit that coeverts AC voltage to DC voltage. The voltage of the source is y,Sin(utwhere -f in whicfis the frequency. The operation of the circuit is illustrated in Fig. 2 where the dashod line shows the source veltage and the solid line shows the voltage across the resistor Diode Time Fig. 1 In the first cycle, thediode is on (conductingcurrent)fromに0umi 4Atthstme thediodetums...
4. The half-wave rectifier in Fig. P3.94 is operating with an input voltage, V = 10...
4. The half-wave rectifier in Fig. P3.94 is operating with an input voltage, V = 10 sinat,at a frequency of 60 Hz and Von=1V. (25 points) C D Les = Figure P3.94 a. Draw the output voltage (Vo(t)) waveform. b. What is the minimum value of C required to maintain the ripple voltage to less than 0.25V if R=0.5 Q and the diode voltage drop is 1V? c. What is the PIV rating of the diode in this circuit? d....
A half-wave diode rectifier circuit is driven by a 60Hz sine wave with a peak value...
A half-wave diode rectifier circuit is driven by a 60Hz sine wave with a peak value of 19V. If the load resistance this circuit drives is 4.3kΩ and the ripple voltage at the output is 0.43 Vpeak-to-peak, then what is the peak current in the diode in milliamps? Answer: Check The diode circuit shown is a Select one: O a. Voltage doubler circuit O b. DC restorer circuit c. Limiter circuit O d. Peak detector circuit O e. None of...
1. A half wave rectifier is supplied from a 100Vms source. For a load consisting of a 60V battery fed through a 2Ω resistor as shown in Fig. I 2Ω D+ + VR() bat Fig. 1 For the rectifier shown in Fig. 1, determine (a) a time varying expression for the current flowing into the battery 70.7sine -30 25.1 154.9) (b) (c) the average power flow into the battery (574W) the average power dissipation in the resistor (617W) A half...
breakdown, with respect to the input voltag. 4. BONUS: Fig. 5 presents a half sinusoidal, with 2V peak-to-peak, no DC offset. Fig. 5 presents a half wave rectifier. We assume Vin here is aw the Vout waveform when the diode has 0.7V voltage drop. Diode + 7 + vin Load Svout AC Voltage vir Source Fig.5. Half wave rectifier circuit
done on pspice thank you
Part IV: Diode Rectifiers Procedure: 1. Build the circuit model for full-wave diode rectifier in PSpice as shown in Fig. 4. The value of the load resistor is 10 k22. The input AC voltage source (VSIN in PSpice) is configured at 100 Hz and 20 V (peak-to- peak) in sinusoidal waveform. O 10K V.(t) V(A) A Figure 4. Circuit configuration for full-wave diode rectifier 2. Run the simulation and save the input and output voltage...
QUESTION 5 (15 points) a. You have a power supply which is a full-wave rectifier with a capacitor filter. It operates from the mains and provides an output of Voc-20 V with 20% ripple, when the load current is 2 A Calculate the maximum and minimum values of the output waveform of this power supply. b. Now you will design a series voltage regulator between the power supply described in part (a) and an electronic device operating at 12 VDC...
Design a FULL WAVE BRIDGE RECTIFIER circuit that will:
Take 120volts ac, 60 hz, sinusoidal waveform and convert
it to a “regulated “dc value
giving 12 volts +, - 1 volt across a 2000-ohm output
load resistor with no more than 2%
ripple voltage.
You may assume:
a. An ideal power transformer as discussed in class.
b. For hand computations, you must assume a diode given by
Figure 4.8 page 185.
c. A filter capacitor sized per the textbook equation...
Consider a 4-diode bridge rectifier that rectifies a +-240V square wave within a UPS. For now, assume a 100-ohm resistive load and draw the circuit. Model the forward characteristics of each diode with an on-voltage of 0.5 volt plus an internal resistance of 1 ohm. Model the reverse (leakage) characteristics of each diode as ideal. Draw tidy graphs of the input, output as well as (NB careful!) diode voltages. Show calculations to obtain graph values. Also draw tidy graphs of...
3. Perform the following calculations for the full-wave rectifier with filter capacitor in Fig. 5 Determine the maximum value of vo(f), vOpeak a. b. Determine the peak-to-peak ripple voltage, vr, peak-peak Determine the approximate average value of vo(t). You do not have to use integration. Assume the ripple waveform has an ideal sawtooth shape with each "tooth" being a right triangle having amplitude vr peak-peak as in Fig. 6 C. d. Sketch a realistic ripple waveform superimposed on the unfiltered...
Use matlab to solve
Project A half-wave diode rectifier shown in the following Fig. 1 is an electrical cirouit that coeverts AC voltage to DC voltage. The voltage of the source is y,Sin(utwhere -f in whicfis the frequency. The operation of the circuit is illustrated in Fig. 2 where the dashod line shows the source veltage and the solid line shows the voltage across the resistor Diode Time Fig. 1 In the first cycle, thediode is on (conductingcurrent)fromに0umi 4Atthstme thediodetums...
4. The half-wave rectifier in Fig. P3.94 is operating with an input voltage, V = 10 sinat,at a frequency of 60 Hz and Von=1V. (25 points) C D Les = Figure P3.94 a. Draw the output voltage (Vo(t)) waveform. b. What is the minimum value of C required to maintain the ripple voltage to less than 0.25V if R=0.5 Q and the diode voltage drop is 1V? c. What is the PIV rating of the diode in this circuit? d....
A half-wave diode rectifier circuit is driven by a 60Hz sine wave with a peak value of 19V. If the load resistance this circuit drives is 4.3kΩ and the ripple voltage at the output is 0.43 Vpeak-to-peak, then what is the peak current in the diode in milliamps? Answer: Check The diode circuit shown is a Select one: O a. Voltage doubler circuit O b. DC restorer circuit c. Limiter circuit O d. Peak detector circuit O e. None of...
