The torque T is applied to fange C (Round the inal answers to two dealimal places)
We were unable to transcribe this imageTwo solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5 rotation of one fla...

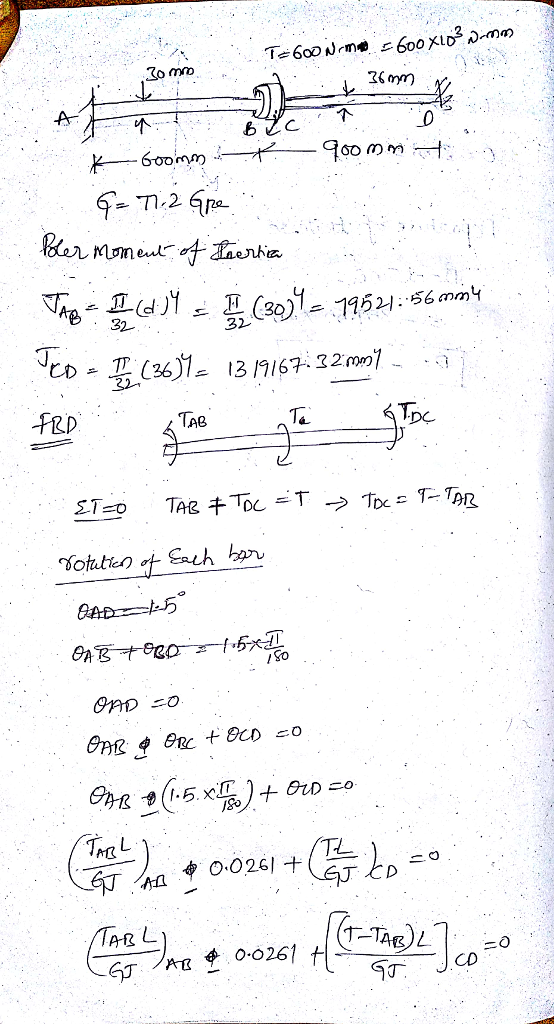

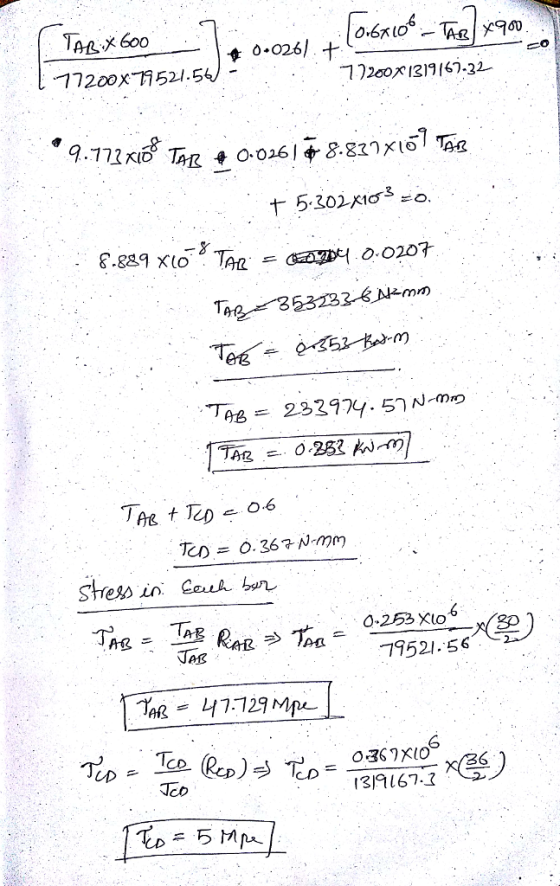

We were unable to transcribe this imageTwo solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5 rotation of one flange with respect to the other betore the flanges begin to rotate as a single unlt. Knowing that G 77.2 GPa, determine the maximum shearing stress in each shaft when a torque T of magnitude 600 N-m is applled to the flange Indicated The torque T...
4) A torque T is applied to two tubes having the cross sections shown. Compare the...
4) A torque T is applied to two tubes having the cross sections shown. Compare the shear flow developed in each tube. (Develop a relationship between the shear flow in the circle and the square)
A torque of magnitude T = 10 kN·m is applied to the end of a tank...
A torque of magnitude T = 10 kN·m is applied to the end of a
tank containing compressed air under a pressure of 8 MPa. Knowing
that the tank has a 180-mm inner diameter and a 12-mm wall
thickness, determine the maximum normal stress and the maximum
shearing stress in the tank. (Round the final answers to one
decimal place.)
The maximum normal stress in the tank
is MPa.
The maximum shearing stress in the tank
is MPa.
Find the t-value(s) for each of the following cases. Round your answers to 3 decimal places....
Find the t-value(s) for each of the following cases. Round your
answers to 3 decimal places. Enter negative values as negative
number.
Find the t-value(s) for each of the following cases. Round your answers to 3 decimal places. Enter negative values as negative number. a. Upper tail area of .10 with 15 degrees of freedom is . 1.341 2.678 b. Lower tail area of .005 with 50 degrees of freedom is c. Upper tail area of 20 with 30 degrees...
Please round answer A to three decimal places. Please round answers B and C to two....
Please round answer A to three decimal places. Please
round answers B and C to two.
The following table summarizes the yields to maturity on several one-year, zero-coupon securities: Security Treasury AAA corporate BBB corporate B corporate Yield (%) 3.12 3.19 4.27 4.93 a. What is the price (expressed as a percentage of the face value) of a one-year, zero-coupon corporate bond with a AAA rating? b. What is the credit spread on AAA-rated corporate bonds? c. What is the...
Find the t-value(s) for each of the following cases. Round your answers to 3 decimal places....
Find the t-value(s) for each of the following cases. Round your answers to 3 decimal places. Enter negative values as negative number. a. Upper tail area of 10 with 15 degrees of freedom is b. Lower tail area of .005 with 50 degrees of freedom is c. Upper tail area of .01 with 35 degrees of freedom is d. Where 98% of the area falls between these two t-values with 25 degrees of freedom. e. Where 99% of the area...
Determine za for the following of a. (Round your answers to two decimal places.) a =...
Determine za for the following of a. (Round your answers to two decimal places.) a = 0.0054 (a) 2.55 a = 0.16 (b) 1.41 (c) a = 0.659 .44 You may need to use the appropriate table in the Appendix of Tables to answer this question. Need Help? Talk to a Tutor
2) Two forces P- 18 kN and F 15 kN are applied to the shaft with a diameter of D - 40 mm, as shown. A torque T= 750 N·m is also applied on the free end of the shaft. Determine the location and magnit...
2) Two forces P- 18 kN and F 15 kN are applied to the shaft with a diameter of D - 40 mm, as shown. A torque T= 750 N·m is also applied on the free end of the shaft. Determine the location and magnitudes of maximum normal and shear stresses developed in the shaft. For full credit, show your work (40 points). T IP
2) Two forces P- 18 kN and F 15 kN are applied to the shaft...
Determine zα for the following of α. (Round your answers to two decimal places.) a) α...
Determine zα for the following of α. (Round your answers to two decimal places.) a) α = 0.0076 (b) α = 0.19 (c) α = 0.681
Determine zα for the following of α. (Round your answers to two decimal places.) (a) α =...
Determine zα for the following of α. (Round your answers to two decimal places.) (a) α = 0.0083 (b) α = 0.12 (c) α = 0.649
We were unable to transcribe this imageTwo solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5 rotation of one flange with respect to the other betore the flanges begin to rotate as a single unlt. Knowing that G 77.2 GPa, determine the maximum shearing stress in each shaft when a torque T of magnitude 600 N-m is applled to the flange Indicated The torque T...
4) A torque T is applied to two tubes having the cross sections shown. Compare the shear flow developed in each tube. (Develop a relationship between the shear flow in the circle and the square)
A torque of magnitude T = 10 kN·m is applied to the end of a
tank containing compressed air under a pressure of 8 MPa. Knowing
that the tank has a 180-mm inner diameter and a 12-mm wall
thickness, determine the maximum normal stress and the maximum
shearing stress in the tank. (Round the final answers to one
decimal place.)
The maximum normal stress in the tank
is MPa.
The maximum shearing stress in the tank
is MPa.
Find the t-value(s) for each of the following cases. Round your
answers to 3 decimal places. Enter negative values as negative
number.
Find the t-value(s) for each of the following cases. Round your answers to 3 decimal places. Enter negative values as negative number. a. Upper tail area of .10 with 15 degrees of freedom is . 1.341 2.678 b. Lower tail area of .005 with 50 degrees of freedom is c. Upper tail area of 20 with 30 degrees...
Please round answer A to three decimal places. Please
round answers B and C to two.
The following table summarizes the yields to maturity on several one-year, zero-coupon securities: Security Treasury AAA corporate BBB corporate B corporate Yield (%) 3.12 3.19 4.27 4.93 a. What is the price (expressed as a percentage of the face value) of a one-year, zero-coupon corporate bond with a AAA rating? b. What is the credit spread on AAA-rated corporate bonds? c. What is the...
Find the t-value(s) for each of the following cases. Round your answers to 3 decimal places. Enter negative values as negative number. a. Upper tail area of 10 with 15 degrees of freedom is b. Lower tail area of .005 with 50 degrees of freedom is c. Upper tail area of .01 with 35 degrees of freedom is d. Where 98% of the area falls between these two t-values with 25 degrees of freedom. e. Where 99% of the area...
Determine za for the following of a. (Round your answers to two decimal places.) a = 0.0054 (a) 2.55 a = 0.16 (b) 1.41 (c) a = 0.659 .44 You may need to use the appropriate table in the Appendix of Tables to answer this question. Need Help? Talk to a Tutor
2) Two forces P- 18 kN and F 15 kN are applied to the shaft with a diameter of D - 40 mm, as shown. A torque T= 750 N·m is also applied on the free end of the shaft. Determine the location and magnitudes of maximum normal and shear stresses developed in the shaft. For full credit, show your work (40 points). T IP
2) Two forces P- 18 kN and F 15 kN are applied to the shaft...
