Homework Answers
Add Answer to:

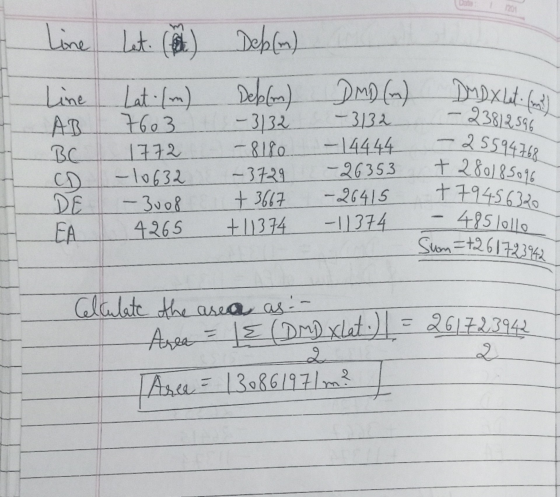

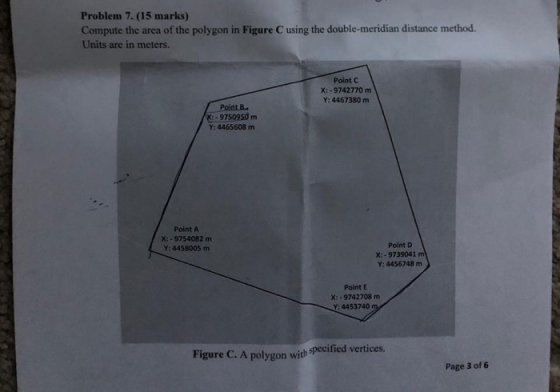

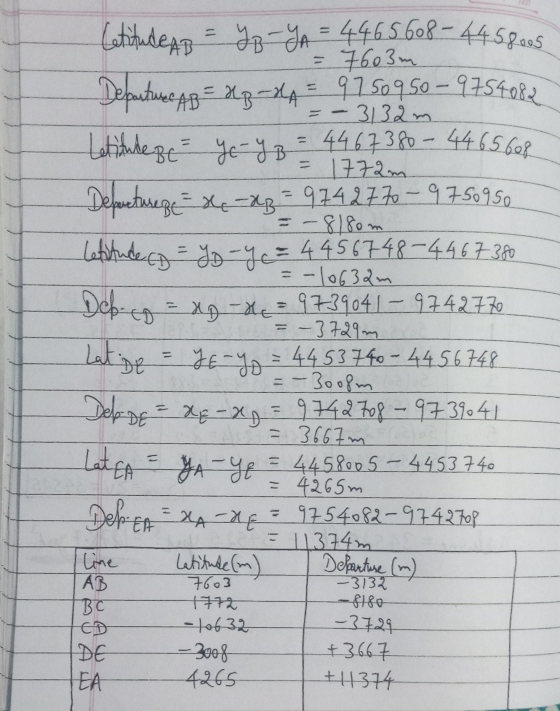

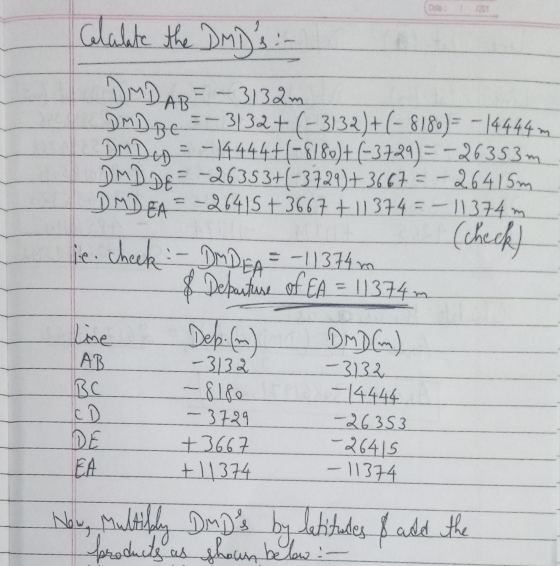

Problem 7. (15 marks) Compute the area of the polygon in Figure Cusing the double-meridian distance...
Problem 2 9.9 Geometry: n-sided regular polygon pg. 362 (25 points) Follow instructions as provided on...
Problem 2 9.9 Geometry: n-sided regular polygon pg. 362 (25 points) Follow instructions as provided on page 362, reprinted below 9.9 (Geometry: n-sided regular polygon) In an n-sided regular polygon, all sides have the same length and all angles have the same degree (i.e., the polygon is both equilateral and equiangular) Design a class named RegularPolygon that contains A private int data field named n that defines the number of sides in the polygon with default value of 3 A...
Problem 3 i) Let D be the polygon in R2 with vertices, in a counter-clockwise order, given by (zı, y), (x2,U2), , (Tm%). Use Green's Theorem to shows that the area of D is given by the formula ny...
Problem 3 i) Let D be the polygon in R2 with vertices, in a counter-clockwise order, given by (zı, y), (x2,U2), , (Tm%). Use Green's Theorem to shows that the area of D is given by the formula nyn-1 7 marks (i) Using the formula from (i) to derive the area of triangle with a base of width w 1 and a height of h 3 marks]
Problem 3 i) Let D be the polygon in R2 with vertices, in...
Problem 3 i) Let D be the polygon in R2 with vertices, in a counter-clockwise order, given by (zı, y), (x2,U2), , (Tm%)...
Problem 3 i) Let D be the polygon in R2 with vertices, in a counter-clockwise order, given by (zı, y), (x2,U2), , (Tm%). Use Green's Theorem to shows that the area of D is given by the formula nyn-1 7 marks (i) Using the formula from (i) to derive the area of triangle with a base of width w 1 and a height of h 3 marks]
Problem 3 i) Let D be the polygon in R2 with vertices, in...
Problem 12.16 Consider a closed polygon traverse whose comers have the follow X and Y coordinates...
Problem 12.16 Consider a closed polygon traverse whose comers have the follow X and Y coordinates (in meters : 9000.000, 6000 000 B 264 O 4694 365 C 1744 357 2022.378 D-n 8251 15 2.558 Part A Determine the area of the lot above Express your answer to five significant figures and include appropriate units. area =1 Value Units Submit Request Answer Provide Feedback
tively. If this area is to be leveled at RL-00 m 40) a (112,3, 78.42,5S.21. 32.81. 18.74) m compute the volume of earthwork 10 2 5.5 Problems L. The following are the balanced latitudes &...
tively. If this area is to be leveled at RL-00 m 40) a (112,3, 78.42,5S.21. 32.81. 18.74) m compute the volume of earthwork 10 2 5.5 Problems L. The following are the balanced latitudes & departures 2+55.21+3281)+18.74)-2319.6 m t,...。s e departures for polygon ABCDEA . Compute the total area by coordinates met nates method, if Side Latitude Departme 156.16 coordinate of point A (100, 100y in meters. . Ifthis polygon drawn on map with scale 5 cm-251-BC m. Compute the...
2. If n points are connected to form a closed polygon as shown below, the area...
2. If n points are connected to form a closed polygon as shown below, the area A of the polygon can be computed as n-2 Notice that although the illustrated polygon has only six distinct corners, n for this polygon is 7 because the algorithm expects that the last point, (es yo), wil be a repeat of the initial point, (ox Yo) (x0,y0) = (xi.y1) x2,y2) (x3.V3) (x5-%) (x4 Y4) a. Name your program file lab9p4 b. Do not write...
Figure 6 8 marks] (a) Locate the centroid E,) of the shaded areas. (b) Determine the moment of inertia of the shaded area about the x-axis 7 marks 0.2 m 3.0 m 0.9 m 0.9 m 0.9 m Figure 6: The pend...
Figure 6 8 marks] (a) Locate the centroid E,) of the shaded areas. (b) Determine the moment of inertia of the shaded area about the x-axis 7 marks 0.2 m 3.0 m 0.9 m 0.9 m 0.9 m Figure 6: The pendulum consists of a slender rod and a thin plate
Figure 6 8 marks] (a) Locate the centroid E,) of the shaded areas. (b) Determine the moment of inertia of the shaded area about the x-axis 7 marks 0.2...
In the double-slit experiment of the figure, the viewing screen is at distance D = 4.92...
In the double-slit experiment of the figure, the viewing screen is at distance D = 4.92 m, point P lies at distance y = 20.9 cm from the center of the pattern, the slit separation d is 5.30 μm' and the wavelength λ is 591 nm. what is the ratio of the intensity Ip at point P to the intensity Icen at the center of the pattern? Incident wave Y2 (a)B
Problem 7. Using direct integration, determine the centroidal distance, x ,of the shaded area. Then, using...
Problem 7. Using direct integration, determine the centroidal distance, x ,of the shaded area. Then, using the second theorem of Pappus-Guldinus, determine the volume of the solid generated by revolving the shaded area about the y-axis. 2 m
In the double-slit experiment of the figure, the viewing screen is at distance D = 4.77...
In the double-slit experiment of the figure, the viewing screen
is at distance D = 4.77 m, point P lies at distance y = 20.8 cm
from the center of the pattern, the slit separation d is 4.51 μm,
and the wavelength λ is 654 nm. What is the ratio of the intensity
IP at point P to the intensity Icen at the center of the
pattern?
Incident wave '2 Path length difference Δ.
Problem 2 9.9 Geometry: n-sided regular polygon pg. 362 (25 points) Follow instructions as provided on page 362, reprinted below 9.9 (Geometry: n-sided regular polygon) In an n-sided regular polygon, all sides have the same length and all angles have the same degree (i.e., the polygon is both equilateral and equiangular) Design a class named RegularPolygon that contains A private int data field named n that defines the number of sides in the polygon with default value of 3 A...
Problem 3 i) Let D be the polygon in R2 with vertices, in a counter-clockwise order, given by (zı, y), (x2,U2), , (Tm%). Use Green's Theorem to shows that the area of D is given by the formula nyn-1 7 marks (i) Using the formula from (i) to derive the area of triangle with a base of width w 1 and a height of h 3 marks]
Problem 3 i) Let D be the polygon in R2 with vertices, in...
Problem 3 i) Let D be the polygon in R2 with vertices, in a counter-clockwise order, given by (zı, y), (x2,U2), , (Tm%). Use Green's Theorem to shows that the area of D is given by the formula nyn-1 7 marks (i) Using the formula from (i) to derive the area of triangle with a base of width w 1 and a height of h 3 marks]
Problem 3 i) Let D be the polygon in R2 with vertices, in...
Problem 12.16 Consider a closed polygon traverse whose comers have the follow X and Y coordinates (in meters : 9000.000, 6000 000 B 264 O 4694 365 C 1744 357 2022.378 D-n 8251 15 2.558 Part A Determine the area of the lot above Express your answer to five significant figures and include appropriate units. area =1 Value Units Submit Request Answer Provide Feedback
tively. If this area is to be leveled at RL-00 m 40) a (112,3, 78.42,5S.21. 32.81. 18.74) m compute the volume of earthwork 10 2 5.5 Problems L. The following are the balanced latitudes & departures 2+55.21+3281)+18.74)-2319.6 m t,...。s e departures for polygon ABCDEA . Compute the total area by coordinates met nates method, if Side Latitude Departme 156.16 coordinate of point A (100, 100y in meters. . Ifthis polygon drawn on map with scale 5 cm-251-BC m. Compute the...
2. If n points are connected to form a closed polygon as shown below, the area A of the polygon can be computed as n-2 Notice that although the illustrated polygon has only six distinct corners, n for this polygon is 7 because the algorithm expects that the last point, (es yo), wil be a repeat of the initial point, (ox Yo) (x0,y0) = (xi.y1) x2,y2) (x3.V3) (x5-%) (x4 Y4) a. Name your program file lab9p4 b. Do not write...
Figure 6 8 marks] (a) Locate the centroid E,) of the shaded areas. (b) Determine the moment of inertia of the shaded area about the x-axis 7 marks 0.2 m 3.0 m 0.9 m 0.9 m 0.9 m Figure 6: The pendulum consists of a slender rod and a thin plate
Figure 6 8 marks] (a) Locate the centroid E,) of the shaded areas. (b) Determine the moment of inertia of the shaded area about the x-axis 7 marks 0.2...
In the double-slit experiment of the figure, the viewing screen is at distance D = 4.92 m, point P lies at distance y = 20.9 cm from the center of the pattern, the slit separation d is 5.30 μm' and the wavelength λ is 591 nm. what is the ratio of the intensity Ip at point P to the intensity Icen at the center of the pattern? Incident wave Y2 (a)B
Problem 7. Using direct integration, determine the centroidal distance, x ,of the shaded area. Then, using the second theorem of Pappus-Guldinus, determine the volume of the solid generated by revolving the shaded area about the y-axis. 2 m
In the double-slit experiment of the figure, the viewing screen
is at distance D = 4.77 m, point P lies at distance y = 20.8 cm
from the center of the pattern, the slit separation d is 4.51 μm,
and the wavelength λ is 654 nm. What is the ratio of the intensity
IP at point P to the intensity Icen at the center of the
pattern?
Incident wave '2 Path length difference Δ.
