A block is placed on a plane that is inclined at 30 o to the horizontal....
A block is placed on a plane that is inclined at 30 o to the horizontal. The coefficients of static and kinetic friction for the block on the inclined plane are 0.5 and 0.4, respectively. The block
|
a |
accelerates down the inclined plane. |
|
b |
travels down the inclined plane at constant velocity. |
|
c |
travels up the inclined plane at constant velocity. |
|
d |
remains stationary on the inclined plane. |
Homework Answers

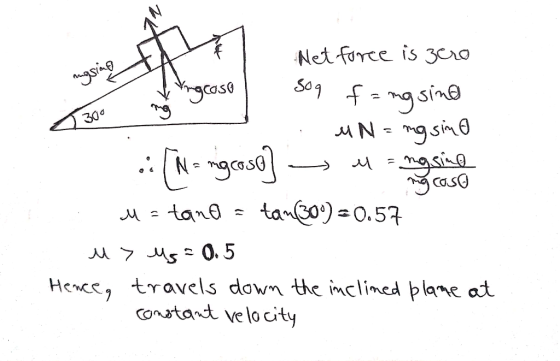

![l mysing E 300 Net force is zero Ingroso l sog f= mg sind 5380 .. un= mg sino .: (N = ngase] > Mangsing ngcoso u=tand = tan (](http://img.homeworklib.com/questions/29cc90e0-aa7c-11eb-8750-278181ac93e6.png?x-oss-process=image/resize,w_560)
