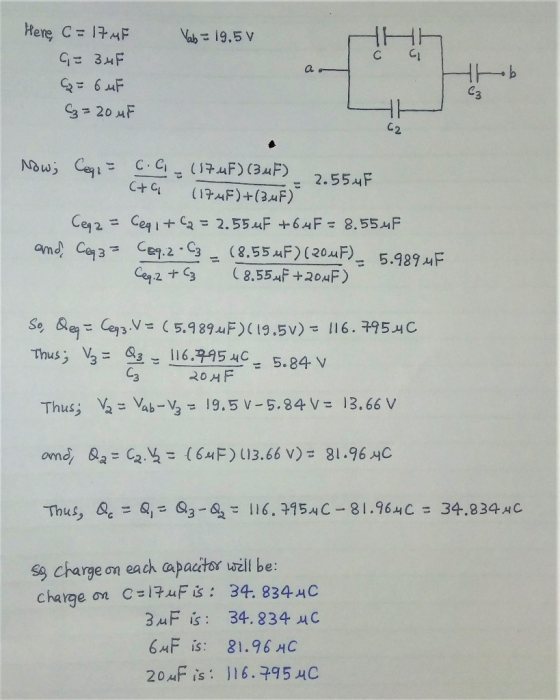

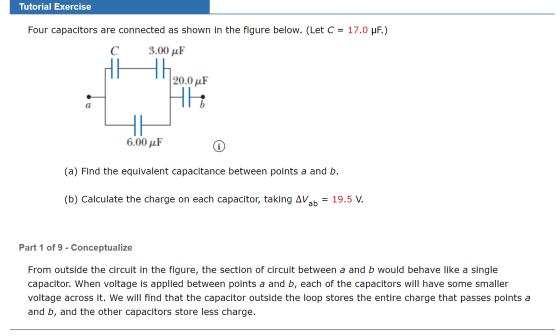

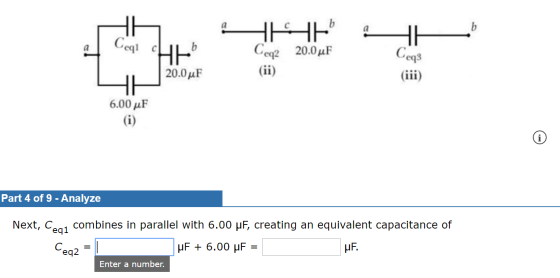

Tutorial Exercise Four capacitors are connected as shown in the figure below. (Let C = 17.0...
Four capacitors are connected as shown in the figure below. (C 16.0 μF.) С 3.00 F 20.0 μF 6.00 pF (a) Find the equivalent capacitance between points a and b 5.98 (b) Calculate the charge on each capacitor, taking AVab 17.0 v 11.22 Consider how the charge on the equivalent capacitor, as calculated from the voltage and equivalent capacitance between a and b, is related to the charge on the 20.0-HF capacitor. HC 67.2 Your incorrect answer may have resulted...
Four capacitors are connected as shown in the figure below. (C-18.0 μΚ) C 3.00 μF th 20.0 μF Ήτ 6.00 μF (a) Find the equivalent capacitance between points a and b. (b) Calculate the charge on each capacitor, taking ΔVab = 17.0 V. 20.0 μF capacitor 6.00 μF capacitor 3.00 μF capacitor capacitor C HC HC
Four capacitors are connected as shown in the figure below. (Let C = 10.0 μF) (a) Find the equivalent capacitance between points a and b. (b) Calculate the charge on each capacitor, taking ΔVab = 20.0 V.
(a) Find the equivalent capacitance between points a and b.(b) Calculate the charge on each capacitor if a 15 V battery isconnected acrosspoints a and b.the 20.0 µF capacitorµCthe 6.00 µF capacitorµCthe 3.00 µF capacitorµCcapacitor CµC
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C = 1.00 pF and another with a capacitance of 6.00 pF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 pF and another with a capacitance of C2 = 3.00 uF. C 6.00 uF 2.00 uF 90.0 V (a) What is the equivalent capacitance...
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values G = 22.5 UF, C = 45.5 pF, C; = 50.5 pF, and Cd = 40.5 pF, and the power supply is at voltage V = 23.5 V. What is the equivalent capacitance of the circuit? equivalent capacitance: What is the charge on capacitor C2? charge on C: What is the potential difference across capacitor C;? potential difference across C3: What is the potential...
20 of 22 > Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C 26.5 uF, C2 45.5 uF, C3 50.5 pF, and C4 40.5 uF, and the power supply is at voltage V 31.5 V C What is the equivalent capacitance of the circuit? C equivalent capacitance: 8.3 V What is the charge capacitor C2? on C. charge C2: 5.75 C on What is the potential difference across capacitor C3? about us...
The circuit in the figure below contains a 9.00 v battery and four capacitors. The two capacitors on the left and right both have same capacitance of C, -14.20. The capacitors in the top two branches have capacitances of 6.00 pF and C - 28.20 F 6.00 с. 9.00 V (a) What is the equivalent capacitance (in pf) of all the capacitors in the entire circuit? (b) What is the charge (in) stored by each capacitor? right 34.20 pf capacitor...
The circuit in the figure below contains a 90.0 V battery and four capacitors. In the top parallel branch, there are two capacitors, one with a capacitance of C1 = 3.00 µF and another with a capacitance of 6.00 µF. In the bottom parallel branch, there are two more capacitors, one with a capacitance of 2.00 µF and another with a capacitance of C2 = 6.00 µF. A circuit consists of a 90.0 V battery and four capacitors. The wire...
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
