Homework Answers
The mentioned equations are not given the question, hence the problem is completely solved.
Add Answer to:

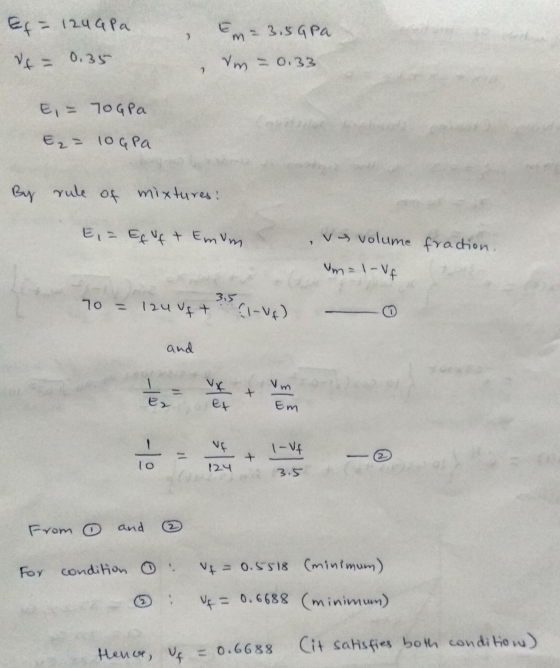

Consider a unidirectional Kevlar/Epoxy lamina. The stiffness in the fiber direction must be at least 70...
Thin composite lamina is to be made of Kevlar fibers aligned all in the same direction in elastic...
thin composite lamina is to be made of Kevlar fibers aligned all in the same direction in elastic modulus parallel to the fibers must be at least 70 GP must be at least 10 GPa. Kevlar modulus is 124 GPa, and Poisson ratio is 0.35. Epoxy modulus Poisson ratio is 0.33. Consider these calculations a "first cu" in terms of the level of accu a, and the elastic modulus perpendicular to the fibers is 3.5 GPa and a) What is...
Consider a single lamina of unidirectional kevlar-epoxy with a fiber orientation angle of 55 degress ....
Consider a single lamina of unidirectional kevlar-epoxy with a
fiber orientation angle of 55 degress . You may use a computer or
do the calculations by hand but must show your work. Use the lamina
properties provided in Lesson 3, Slide 19 in SI units. The lamina
is loaded with stresses {x, y,
xy} = {125, -10,
20} MPa. a. Sketch a complete and useful figure for this problem,
including all relevant coordinate systems. b. Calculate the strains
in the...
A unidirectional glass fiber-epoxy matrix composite containing 65 vol% fiber, calculate the modulus of elasticity in...
A unidirectional glass fiber-epoxy matrix composite containing 65 vol% fiber, calculate the modulus of elasticity in the longitudinal direction and the transverse direction. Epoxy has a density of 1.54 g/cm3, modulus of elasticity of 3.5 GPa, yield strength of 60 MPa, tensile strength of 95 MPa, and Poisson’s ratio of 0.33. Glass fiber has a Poisson’s ratio of 0.22.
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and ep...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix 2) Stiffness matrix 3) Resultant strain under the applied stresses 12-4 MP 2 MPa τ12 Typical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphitel epoxy epoxy Property Symbol Units epoxy Fiber volume fraction Longitudinal elastic modulus E Transverse elastic modulus E, Major Poisson's ratio Shear modulus Ultimate longitudinal tensile (σ1he 0.45 0.70 10.30 7.17 GPa GPa 38.6 8.27 18.50...
please solve 2 and 3 1- The reduced stiffness matrix [Q] is given for a unidirectional...
please solve 2 and 3
1- The reduced stiffness matrix [Q] is given for a unidirectional lamina as follows: 5.681 0.3164 0 ] [Q]=0.3164 1.217 0 Msi I 0 0 0.6006 Calculate the four engineering constants E1, E2, V12, G12 of the lamina. 2- Calculate the transformed reduced stiffness [Q] for the above problem for 0 = 30°. Glass 3- A glass/epoxy lamina consists of 70% fiber volume fraction. Use properties of glass and epoxy from the tables below to...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the pro...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the properties of a unidirectional boron/epoxy lamina from Table 2.1. Apply the maximum stress failure, maximum strain, Tsai-Hill, and Tsai-Wu failure theories. TABLE 2.1 Tvpical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphite/ Property SymbolUnits epoxy epoxy epoxy Fiber volume fraction Longitudinal elastic modulus Transverse elastic modulus Major Poisson's ratio Shear modulus Ultimate longitudinal tensile strength Ultimate longitudinal...
I need to know the steps and the answer of every single question in the images....
I need to know the steps and the answer of every single question
in the images. Thank you.
2. (35 points) Calculate the elastic modulus, percentage of load and stresses in the fibers and the matrix of a composite material. The composite is made of an epoxy matrix and 20% of fibers The fibers are either (a) high modulus carbon fiber, or (b) Kevlar 29 fibers. The fibers are continuous and uniaxially aligned. The dimensions of the composite are as...
3. A [0/90]s graphite/epoxy laminate is subjected to a tensile normal load of 1N/m in the x- dire...
3. A [0/90]s graphite/epoxy laminate is subjected to a tensile normal load of 1N/m in the x- direction (the direction parallel to the fibers in the 0° ply). Assume the thickness of each ply is 5 mm and use properties of unidirectional graphite/epoxy lamina from the table. a) Calculate the resultant strains of the laminate b) Calculate the global stresses in the laminate c) Calculate the principal stresses (stresses in material directions) of the top layer. Typical Mechanical Properties of...
H based carbon fiber containing a known amount of single walled 5. Consider a pitc Sartbon nanotu...
h based carbon fiber containing a known amount of single walled 5. Consider a pitc Sartbon nanotubes (SWNT), By adding small amounts of single walled carbon nanotubes SWNT) to the pitch prior to fiber pulling, the elastic fibers can be i the following questions a. (10 points) Estimate the elastic modulus for both the 1% and 5% SWNT loaded carbon fibers. modulus of the pitch based carbon ncreased. Use the figure below and the other information (given) to answer 700...
thin composite lamina is to be made of Kevlar fibers aligned all in the same direction in elastic modulus parallel to the fibers must be at least 70 GP must be at least 10 GPa. Kevlar modulus is 124 GPa, and Poisson ratio is 0.35. Epoxy modulus Poisson ratio is 0.33. Consider these calculations a "first cu" in terms of the level of accu a, and the elastic modulus perpendicular to the fibers is 3.5 GPa and a) What is...
Consider a single lamina of unidirectional kevlar-epoxy with a
fiber orientation angle of 55 degress . You may use a computer or
do the calculations by hand but must show your work. Use the lamina
properties provided in Lesson 3, Slide 19 in SI units. The lamina
is loaded with stresses {x, y,
xy} = {125, -10,
20} MPa. a. Sketch a complete and useful figure for this problem,
including all relevant coordinate systems. b. Calculate the strains
in the...
Composite Structures Tutorial 7 (week 8) 7.1 Find the five strength parameters of a unidirectional glass/epoxy lamina with 40% fiber volume fraction. Use the properties of glass and epoxy from Table 3.1 and Table 3.2. Assume the fibers have circular cross-section and are in a square array packing. 1-52.0-$01674870 225 47 Find 208 Mechanics of Composite Materials, Second Edi Convert PO or Excel Orl Select PDF I TABLE 3.1 Typical Properties of Fibers (SI System of Units) Units Graphite Glass...
2. For a graphite/epoxy unidirectional lamina (un-oriented lamina), find the following: ,--3 MPa 1) Compliance matrix 2) Stiffness matrix 3) Resultant strain under the applied stresses 12-4 MP 2 MPa τ12 Typical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphitel epoxy epoxy Property Symbol Units epoxy Fiber volume fraction Longitudinal elastic modulus E Transverse elastic modulus E, Major Poisson's ratio Shear modulus Ultimate longitudinal tensile (σ1he 0.45 0.70 10.30 7.17 GPa GPa 38.6 8.27 18.50...
please solve 2 and 3
1- The reduced stiffness matrix [Q] is given for a unidirectional lamina as follows: 5.681 0.3164 0 ] [Q]=0.3164 1.217 0 Msi I 0 0 0.6006 Calculate the four engineering constants E1, E2, V12, G12 of the lamina. 2- Calculate the transformed reduced stiffness [Q] for the above problem for 0 = 30°. Glass 3- A glass/epoxy lamina consists of 70% fiber volume fraction. Use properties of glass and epoxy from the tables below to...
235 Find the off-axis shear strength and mode of failure of a 60 boron/ epoxy lamina. Use the properties of a unidirectional boron/epoxy lamina from Table 2.1. Apply the maximum stress failure, maximum strain, Tsai-Hill, and Tsai-Wu failure theories. TABLE 2.1 Tvpical Mechanical Properties of a Unidirectional Lamina (SI System of Units) Glass Boron/ Graphite/ Property SymbolUnits epoxy epoxy epoxy Fiber volume fraction Longitudinal elastic modulus Transverse elastic modulus Major Poisson's ratio Shear modulus Ultimate longitudinal tensile strength Ultimate longitudinal...
I need to know the steps and the answer of every single question
in the images. Thank you.
2. (35 points) Calculate the elastic modulus, percentage of load and stresses in the fibers and the matrix of a composite material. The composite is made of an epoxy matrix and 20% of fibers The fibers are either (a) high modulus carbon fiber, or (b) Kevlar 29 fibers. The fibers are continuous and uniaxially aligned. The dimensions of the composite are as...
3. A [0/90]s graphite/epoxy laminate is subjected to a tensile normal load of 1N/m in the x- direction (the direction parallel to the fibers in the 0° ply). Assume the thickness of each ply is 5 mm and use properties of unidirectional graphite/epoxy lamina from the table. a) Calculate the resultant strains of the laminate b) Calculate the global stresses in the laminate c) Calculate the principal stresses (stresses in material directions) of the top layer. Typical Mechanical Properties of...
h based carbon fiber containing a known amount of single walled 5. Consider a pitc Sartbon nanotubes (SWNT), By adding small amounts of single walled carbon nanotubes SWNT) to the pitch prior to fiber pulling, the elastic fibers can be i the following questions a. (10 points) Estimate the elastic modulus for both the 1% and 5% SWNT loaded carbon fibers. modulus of the pitch based carbon ncreased. Use the figure below and the other information (given) to answer 700...
