determine the external torque........

Question

Question

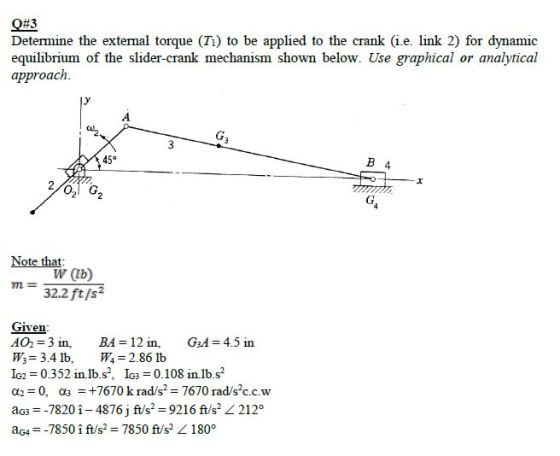

Q#3 Determine the external torque (Tl) to be applied to the crank (i.e. link 2) for dynamic equilibrium of the slider-crank m

college engineering Mechanical

Answer 1

Similar Homework Help Questions

If an object is in static equilibrium, there must be no net external torque: A) Group...

If an object is in static equilibrium, there must be no net external torque: A) Group of answer choices about an axis located at the edge of the object. B)about an axis located at the object's center of gravity. C)about an axis located beneath the object's center of gravity. D) about any axis.
Describe a situation in which there is a net external torque on an object but it’s...

Describe a situation in which there is a net external torque on an object but it’s angular velocity both magnitude and direction is constant?
A grinding wheel is initially at rest. A constant external torque of 50N*n is applied to...

A grinding wheel is initially at rest. A constant external torque of 50N*n is applied to the wheel for 20 s, giving the wheel an angular speed of 600 rev/min. The external torque is then removed, and the wheel comes to rest 120 s later. a) Find the amount of inertia of the wheel b)Find the frictional torque, which is assumed to be constant

Q2 A rotational mechanical system is shown in Figure 2.1. T(t) is the external torque and...

Q2 A rotational mechanical system is shown in Figure 2.1. T(t) is the external torque and is the input to the system. 01(t) is the angular displacement of inertia Ji and O2(t) is the angular displacement of inertia J2. C and C are friction coefficients and K, and K2 are spring constants. (a) Draw the free-body diagrams for J; and Jz. (7 marks) (b) Derive the equations of motion for the system shown in Figure 2.1. (8 marks) (c) Using...
a dynamic delivers 3.0A at 120V to an external circuit when operating at 120rpm. what torque...

a dynamic delivers 3.0A at 120V to an external circuit when operating at 120rpm. what torque is required to drive the generator at this speed if the total power losses are 400W?
When a spinning system contracts in the absence of an external torque, its rotational speed increases...

When a spinning system contracts in the absence of an external torque, its rotational speed increases and its angular momentum 1. decreases 2. remains unchanged 3. may increase or decrease 4. increases

Determine the resultant internal torque acting on the cross section

Determine the resultant internal torque acting on the cross-section through points B and C.
If it is spinning with an angular velocity of 4.9, d Determine the torque on a...

If it is spinning with an angular velocity of 4.9, d Determine the torque on a 10.6kg sphere of radius 0.738 when the axis of rotation is through its center.
Using the quick desk reference (Links to an external site.)Links to an external site., determine the...

Using the quick desk reference (Links to an external site.)Links to an external site., determine the risk factors, risk category and therapeutic lifestyle changes (TLC) recommended for a 50 year old male client who has: Peripheral arterial disease smokes BP of 145 mmHg/96 mmHg Mother who had CHD at age 68 HDL - 50mg/dL LDL- 110mg/dL Total Cholesterol- 230mg/dL prediabetic

Describe how torque and equilibrium determine the mass of an unknown object.

Describe how torque and equilibrium determine the mass of an unknown object.
