In the IR of acetylsalicylic acid what is the important stretching vibration that indicates reaction has occurred?
In the IR of acetylsalicylic acid what is the important stretching vibration that indicates reaction has occurred?
Homework Answers
Acetyl salicylic acid is obtained from reaction of salicylic acid with acetic anhydride
The reaction can be written as
Based on the structure we can make a difference in between Ir of aspirin and salicylic acid and anhydride as

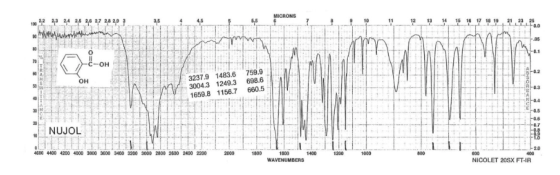

1) A strong O-H stretch in the region of roughly 3520 cm^-1
which must not be present in the product aspirin
2. C-O stretch
Now the C-O peak value will also differ from 1300-1200 cm-1 and
1140-1400 cm-1 in salicylic acid to the peak in near 1300-1000 cm-1
and 1200-1170 cm-1 in aspirin

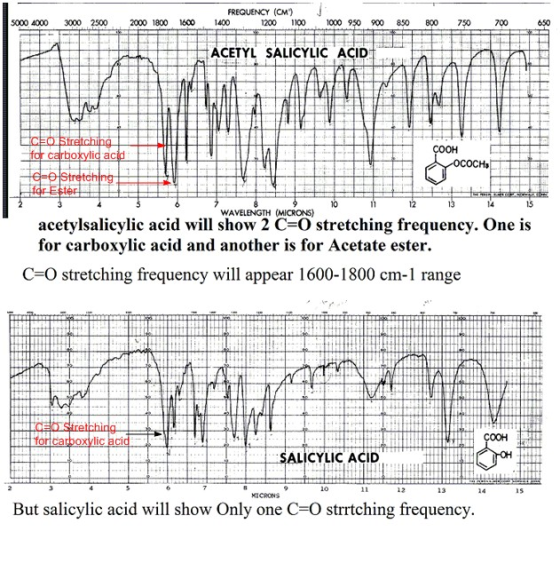

3. C=O stretch
There will be two peak for C=O group one typically of carboxylic acid and one of ester.
