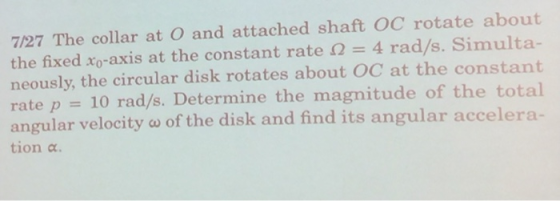

Sketch the space and bone cone. Find Va vector 7/27 The collar at O and attached...

Question

Question

Sketch the space and bone cone.

Find Va vector

engineering Mechanical-Engineering

Answer 1

Answer #1

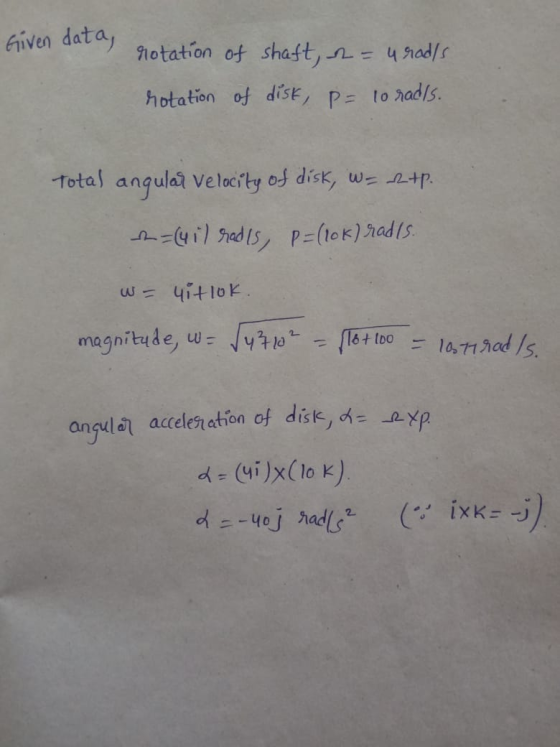

Given aan rotation of shaft, n= u rad/s rotation of disk, p= 10 radls. Total angular Velocity of disk, W- 2+p. de= (4 il radi

Answer 2

Similar Homework Help Questions

Question 1 40 Points The collar at O and attached shaft OC rotate about the fixed...

Question 1 40 Points The collar at O and attached shaft OC rotate about the fixed X-axis at a constant rate 12 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of ė = 10 rad/s and accelerates at a rate of P = 2 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the figure below. The following equations are to be used to find the velocity...
The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant...

The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of @ = 10 rad/s and accelerates at a rate of 8 = 3 rad/s2 An observer and xyz coordinate system are attached to the disk, as shown in the figure below. The following equations are to be used to find the velocity and acceleration of point...
The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant...

The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of @ = 10 rad/s and accelerates at a rate of 8 = 3 rad/s2 An observer and xyz coordinate system are attached to the disk, as shown in the figure below. The following equations are to be used to find the velocity and acceleration of point...

The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant...

The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of Ó = 10 rad/s and accelerates at a rate of Ö = 2 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the figure below. The following equations are to be used to find the velocity and acceleration of point...
solve them clear please with formeula & FBD The collar at O and attached shaft OC...

solve them clear please with formeula & FBD The collar at O and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of ) = 10 rad/s and accelerates at a rate of Ö = 2 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the figure below The following equations are to be used...
please be sure I post this three times and get 3 different answers please solve it...

please be sure I post this three times and get 3 different answers please solve it The collar at 0 and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of = 10 rad/s and accelerates at a rate of 7 = 3 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the figure below....

Please solve it clear they solve it two time wrong , solve it with find,given,FBD,formula ..thankyoooou...

Please solve it clear they solve it two time wrong , solve it with find,given,FBD,formula ..thankyoooou ????? The collar at O and attached shaft OC rotate about the fixed X-axis at a constant rate 1 = 4 rad/s. The circular disk with radius 300 mm rotates at an angular velocity of ) = 10 rad/s and accelerates at a rate of Ö = 2 rad/s2. An observer and xyz coordinate system are attached to the disk, as shown in the...
