2.22" Convert each of the following expressions into sum of products and product of sums: (a)...

Question

Question

2.22 Convert each of the following expressions into sum of products and product of sums: (a) (AB +C)(B + CD) (b) x +x(x y)(+z)

engineering Electrical-Engineering

Answer 1

Answer #1

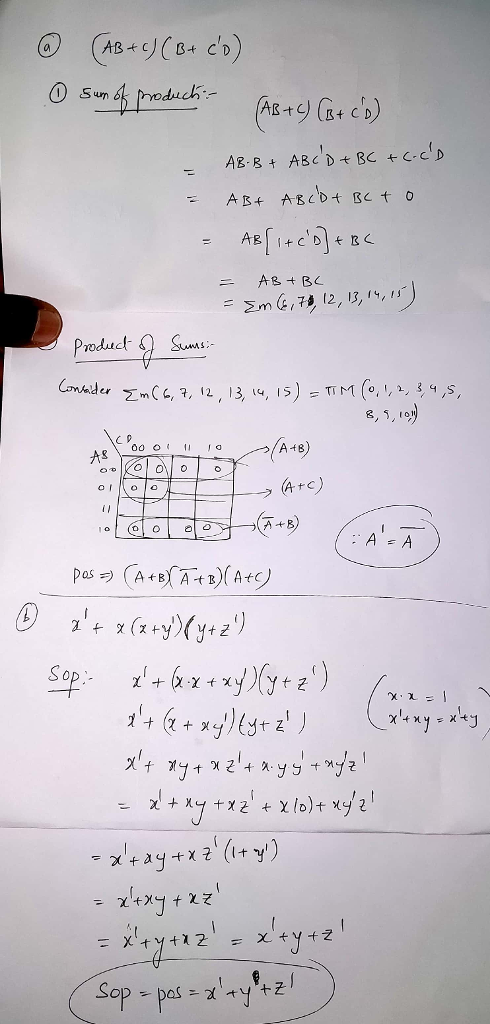

AB+B+ CD c) 8,1,1吵

Answer 2

Similar Homework Help Questions

Using K-maps, obtain the simplified product-of-sums and sum-of-products expressions for the following Boolean functions: a). b)....

Using K-maps, obtain the simplified product-of-sums and sum-of-products expressions for the following Boolean functions: a). b). F(x, y,2)-(3,5,6,7) d(0, 1,2) F(w,x, y, z) (0,1,2,3,7,8, 10)+ d(5,6,11, 15)
can help me to answer question b and c ,11, 12, 3.13 Simplify the following expressions...

can help me to answer question b and c ,11, 12, 3.13 Simplify the following expressions to (1) sum-of-products and (2) products-of-sums: (a) A'C' +B'C' +BC' + AB (b) ACD' + C'D + AB' + ABCD (c) ale (A' + B+ D')(A' + B' +C')( A' B' +C)(B' +C+ D') (d) BCD'+ABC' +ACD
[20 points] Q.3 (Problem 3.13) Sim product-of-sums form. plify the following Boolean function to (1) a...

[20 points] Q.3 (Problem 3.13) Sim product-of-sums form. plify the following Boolean function to (1) a sum-of-products form and (b) a (a) Fx'z y'z yz' + xy (b) F- ACD + C'D + AB + ABCD

Convert this Boolean function from a sum-of-products form to a simplified product-of-sums form: F(a,b,c,d) = ∑(0,1,2,5,8,10,13)

Convert this Boolean function from a sum-of-products form to a simplified product-of-sums form: F(a,b,c,d) = ∑(0,1,2,5,8,10,13)
Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy...

Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy + x'y' y'z 1. Implement it with AND, OR, and inverter 2. Implement it with OR and inverter gates, and 3. Implement it with AND and inverter gate 3. Express the following function in sum of minterms and product of maxterms: a) F(A,B,C,D) - B'DA'D BD b) F (AB+C)(B+C'D) 4.Express the complement of the following function in sum of minterms a) F (A,B,C,D)-2 (0,2,6,11,13,14)...
Minimize the following expression in (a) Sum of Products and (b) Product of Sums forms: (A’...

Minimize the following expression in (a) Sum of Products and (b) Product of Sums forms: (A’ + B’ + D)(A’ + D’)(A + B + D’)(A + B’ + C + D)

2. Find the minimum sum of products and the minimum product of sums for the following...

2. Find the minimum sum of products and the minimum product of sums for the following function fla, b, c, d) Il M(0, 1, 6, 8, 11, 12). Il D(3, 7, 14, 15)
Pearson's r is computed with the Sum of Products and two Sums of Squares, one for...

Pearson's r is computed with the Sum of Products and two Sums of Squares, one for X and the other for Y. If Pearson's r is negative, which of the following is true? O At least one Sum of Squares is negative. O Both Sums of Squares are negative. The Sum of Products is n gative. O Neither the sum of Products or Sums of Square can be negative because r can never be negative.
In the following diagram ifs,-1 and S 0 what will be the logic state at the...

In the following diagram ifs,-1 and S 0 what will be the logic state at the output K? S2 Co Using DeMorgan's theorem, express the function F #ABC+ A'C' + A, B, with only OR and complement operators Using DeMorgan's theorem, express the function F = ABC + A,C, + A'B. with only AND and complement operators Convert the following expressions (AB +CB+ C'D) into sum-of-products (minterms) and product-of-sums (maxterms) Simplify the Boolean expression AB +ABC +ABCD +ABCDE+ABCDEF Which logic...

Given the following truth table, build the following circuits using: SUM OF PRODUCTS PRODUCT OF SUMS...

Given the following truth table, build the following circuits using: SUM OF PRODUCTS PRODUCT OF SUMS Show both equation. Turn in the circuit (.circ) file(s). Use the labels from the Truth Table. Name of circuit file(s): ________________________ Inputs Output C B A Y 0 0 0 0 0 0 1 1 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 0 1 1 0 0 1 1 1 1
