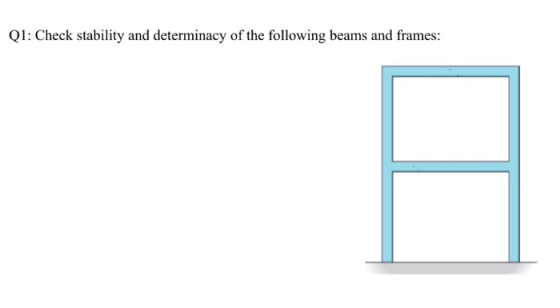

Q1: Check stability and determinacy of the following beams and frames:

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

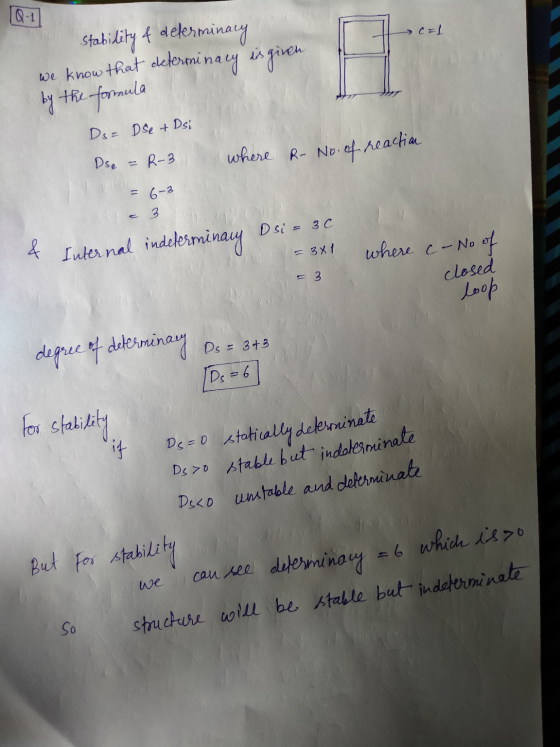

where R- No. of reaction 1Q-1 c=1 Stability f determinacy we know that determinacy is given by the formula Ds= Dse + Dsi Dse

Answer 2

Similar Homework Help Questions

Q1: For the frame shown in the Fig. (1), check the determinacy and stability then draw...

Q1: For the frame shown in the Fig. (1), check the determinacy and stability then draw the axial force, shearing force, and bending moment diagrams for the frame. 25% 1.2 k/ft Pin OC 25 k 15 ft 15k B 20 ft 15 ft A 30 ft Fig. (1)
Q1: For the frame shown in the Fig. (1), check the determinacy and stability then draw...

Q1: For the frame shown in the Fig. (1), check the determinacy and stability then draw the axial force, shearing force, and bending moment diagrams for the frame. 25% 1.2 k/ft Pin OC - 25 k 15 ft 15 k B 20 ft 15 ft D 30 ft Fig. (1)
Q.1) Find the stability and determinacy and the degree of determinacy for the ? (following structures...

Q.1) Find the stability and determinacy and the degree of determinacy for the ? (following structures (a) and (b TH (b) ه إضافة ملف

Ql: For the frame shown in the Fig. (1), check the determinacy and stability then draw...

Ql: For the frame shown in the Fig. (1), check the determinacy and stability then draw the axial force, shearing force, and bending moment diagrams for the frame. I need it in 30min or 1 h 1.2 k/ft Pin 25 k 15 ft 15 k B 20 ft 15 ft А 30 ft — Fig. (1) Fi
1) Check stability and determinacy of the structure 2) draw free body diagram 3) determine reactions...

1) Check stability and determinacy of the structure 2) draw free body diagram 3) determine reactions 4) draw shear diagram - correct values - correct shape - location of the maximum moment on member BC 5) draw moment diagram - correct values - correct shape - location of the maximum moment on member BC 6) draw deformation shape
i need the answer fast as you can Q1: For the frame shown in the Fig....

i need the answer fast as you can Q1: For the frame shown in the Fig. (1), check the determinacy and stability then draw the axial force, shearing force, and bending moment diagrams for the frame. 1.2 k/Ft Pin 25k 15 15k B 20 ft 15 ft 30 ft

Q1(a) Show whether the following structures shown in Figure Q1(a) and Q1(b) are structurally stable. (5...

Q1(a) Show whether the following structures shown in Figure Q1(a) and Q1(b) are structurally stable. (5 marks) (b) Determine the determinacy of each structure. (5 marks) Figure Q1(a) Figure Q1(b)
Section 11.1 For Problems 11.1 through 11.16, compute the reactions for the beams and frames. E...

Section 11.1 For Problems 11.1 through 11.16, compute the reactions for the beams and frames. E and I are constant unless noted otherwise. The force method (i.e., method of consistent distortions) is to be used.
