Two capacitors (C1 = 3.0 μF, C2 = 14.0μF) are charged individually to (V1 = 17.7...
Two capacitors (C1 = 3.0 μF, C2 = 14.0μF) are charged individually to (V1 = 17.7 V, V2 = 4.0 V). The two capacitors are then connected together in parallel with the positive plates together and the negative plates together.

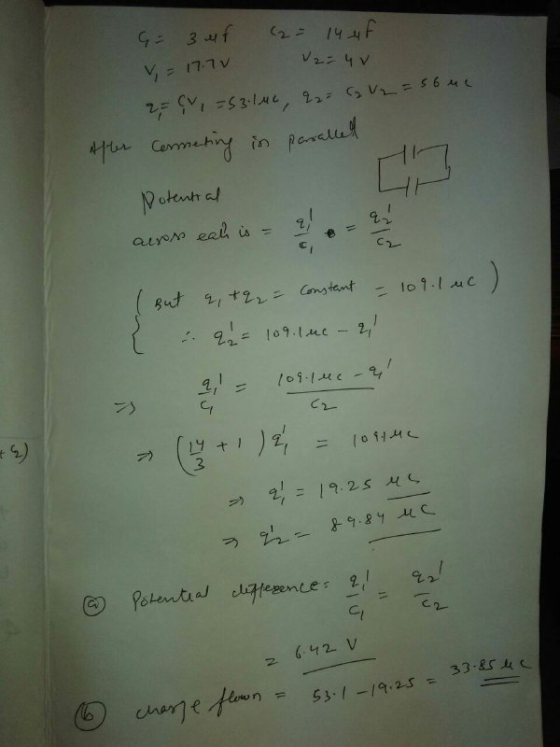

A) Calculate the final potential difference across the plates of the capacitors once they are connected.
B) Calculate the amount of charge (absolute value) that flows from one capacitor to the other when the capacitors are connected together.

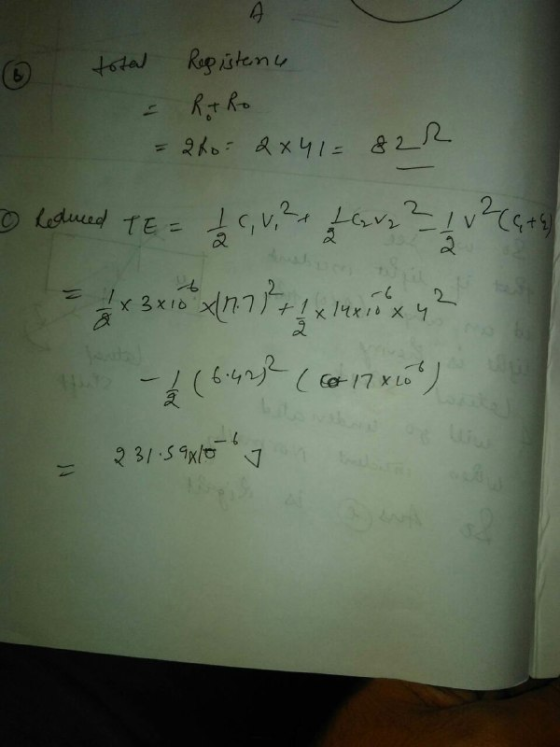

C) By how much (absolute value) is the total stored energy reduced when the two capacitors are connected?
Homework Answers
Add Answer to:
Two capacitors (C1 = 3.0 μF, C2 = 14.0μF) are charged
individually to (V1 = 17.7...
a) Two capacitors (C1 = 3.9 μF, C2 = 15.1μF) are charged individually to (V1 =...
a) Two capacitors (C1 = 3.9 μF, C2 = 15.1μF) are charged individually to (V1 = 17.7 V, V2 = 7.3 V). The two capacitors are then connected together in parallel with the positive plates together and the negative plates together. Calculate the final potential difference across the plates of the capacitors once they are connected. 9.435 V b) Calculate the amount of charge (absolute value) that flows from one capacitor to the other when the capacitors are connected together....
3 μF and C2 12 μF are independently charged to voltages V1 Two capacitors G 15...
3 μF and C2 12 μF are independently charged to voltages V1 Two capacitors G 15 and V2 45% respectively, when entering units, use micro for the metric system prefix μ.) (a) The capacltors are then connected In parallel as shown In the dlagram below C1 C2 (i) Once equilibrium is reached, what are the magnitudes of the charges on the two capacitors? Q1 45 microC Q2 540 microC (l1) What is the potential difference across each capacitor? (b) Instead...
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and...
Two capacitors, C1 = 4.41 μF and C2 = 13.9 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and...
Two capacitors, C1 = 4.35 μF and C2 = 12.5 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
Two capacitors, C1 = 4.74 μF and C2 = 10.8 μF, are connected in parallel, and...
Two capacitors, C1 = 4.74 μF and C2 = 10.8 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. μF (b) Find the potential difference across each capacitor. V1 = V V2 = V (c) Find the charge stored on each capacitor. Q1 = μC Q2 = μC
In the diagram two capacitors, C1 = 3.0 μF, and C2 = 6.0 μF are connected...
In the diagram two capacitors, C1 = 3.0 μF, and C2 = 6.0 μF are
connected in series to a battery and are fully charged. If the
electric energy stored in C1 is U1, then the energy stored in C2
equals to which of the following:
a. 4U1
b. 0.5U1
c. U1
d. 2U1
Ah C1 C2 E
Two capacitors, C1 = 19.0 μF and C2 = 38.0 μF, are connected in series, and...
Two capacitors, C1 = 19.0 μF and C2 = 38.0 μF, are connected in series, and a 21.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance μF total energy stored J (b) Find the energy stored in each individual capacitor. energy stored in C1 J energy stored in C2 J Show that the sum of these two energies is the same as the energy found in part (a)....
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and...
Two capacitors, C1 = 28.0 μF and C2 = 35.0 μF, are connected in series, and a 9.0-V battery is connected across them. (a) Find the equivalent capacitance, and the energy contained in this equivalent capacitor. equivalent capacitance ______ μF total energy stored _______ J (b) Find the energy stored in each individual capacitor. energy stored in C1 ______ J energy stored in C2 ______ J Show that the sum of these two energies is the same as the energy...
Two capacitors, C1 = 6.00 μF and C2 = 13.0 μF
Two capacitors, C1 = 6.00 μF and C2 = 13.0 μF, are connected in parallel, and the resulting combination is connected to a 9.00-V battery. (a) Find the equivalent capacitance of the combination. (b) Find the potential difference across each capacitor. (c) Find the charge stored on each capacitor.
A 0.50-μF and a 1.4-μF capacitor (C1 and C2, respectively) are connected in series to a...
A 0.50-μF and a 1.4-μF capacitor (C1 and C2, respectively) are connected in series to a 17-V battery. Part A: Calculate the potential difference across each capacitor. V1,V2= ?V Part B: Calculate the charge on each capacitor. Q1,Q2= ?C Part C: Calculate the potential difference across each capacitor assuming the two capacitors are in parallel. V1,V2= ?V Part D: Calculate the charge on each capacitor assuming the two capacitors are in parallel.Q1,Q2 = ?C Part D: Calculate the charge on...
3 μF and C2 12 μF are independently charged to voltages V1 Two capacitors G 15 and V2 45% respectively, when entering units, use micro for the metric system prefix μ.) (a) The capacltors are then connected In parallel as shown In the dlagram below C1 C2 (i) Once equilibrium is reached, what are the magnitudes of the charges on the two capacitors? Q1 45 microC Q2 540 microC (l1) What is the potential difference across each capacitor? (b) Instead...
In the diagram two capacitors, C1 = 3.0 μF, and C2 = 6.0 μF are
connected in series to a battery and are fully charged. If the
electric energy stored in C1 is U1, then the energy stored in C2
equals to which of the following:
a. 4U1
b. 0.5U1
c. U1
d. 2U1
Ah C1 C2 E
