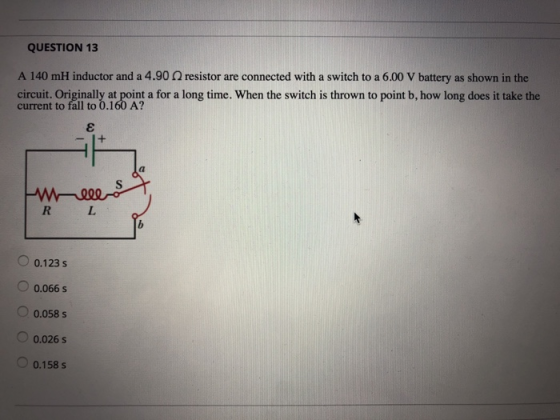

QUESTION 13 A 140 mH inductor and a 4.90 Ω resistor are connected with a switch...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

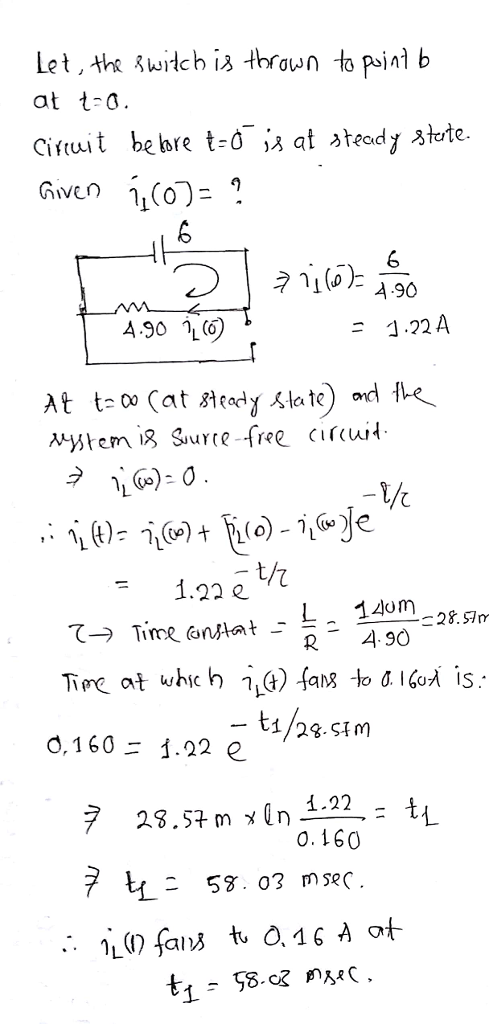

Let, th witch is thravn to poin b at t o Cisruit be bre t- at teady stote. 4.90 1.22 A t/ F1.22 e L140กา R4.90 28.57m d.160ニ1

Answer 2

Similar Homework Help Questions

A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an...

A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch.A 8.2-V battery is connected in series with a 38-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.110 ms after the switch is closed? unit (mA) Part B How much energy is stored in the inductor at this time? unit(micro J)
In a circuit, a parallel combination of a resistor R2 = 20.3 Ω and an inductor...

In a circuit, a parallel combination of a resistor R2 = 20.3 Ω and an inductor of L = 3.70 mH is connected in series with a resistor of R1 = 5.80 Ω, a 6.00-V dc battery, and a switch. What is the voltage across the 5.80-Ω resistor immediately after the switch is closed? What is the current in the 3.70-mH inductor after the switch has been closed for a long time? 6.00 V I SR,
A 8.2-V battery is connected in series with a 35-mH inductor, a 150-Ω resistor, and an...

A 8.2-V battery is connected in series with a 35-mH inductor, a 150-Ω resistor, and an open switch. Part A What is the current in the circuit 0.130 ms after the switch is closed? (in mA) Part B How much energy is stored in the inductor at this time? (in uJ)

Item 2.9 A 9.9-V battery is connected in series with a 36-mH inductor, a 180-Ω resistor,...

Item 2.9 A 9.9-V battery is connected in series with a 36-mH inductor, a 180-Ω resistor, and an open switch. Part A: What is the current in the circuit 0.120 ms after the switch is closed? Part B: How much energy is stored in the inductor at this time?
resistor a switch, and a 12 V battery 7) A 20 mH coil inductor is connected...

resistor a switch, and a 12 V battery 7) A 20 mH coil inductor is connected in series with a) (5 pts) What is the time constant of the circuit? b) (10 pts) How long after the switch is closed will it take for the current to reach 99 percent of final value? e) (5 pts) A long time after the switch is closed, what is the energy stored in the coil? W 10000
A resistor R = 10 Ω and an inductor L = 764 mH are connected to...

A resistor R = 10 Ω and an inductor L = 764 mH are connected to a power supply as shown below. A short time after the switch is closed, the current in the circuit has reached a steady value, and the energy stored in the inductor is 0.10 J. Calculate the emf of the power supply, in V, to the nearest V.

A 9.5-V battery is connected in series with a 44-mH inductor, a 180-Ω resistor, and an...

A 9.5-V battery is connected in series with a 44-mH inductor, a 180-Ω resistor, and an open switch. 1. What is the current in the circuit 0.120 msms after the switch is closed? Express your answer using two significant figures. 2. How much energy is stored in the inductor at this time? Express your answer using two significant figures.
A 8.0-V battery is connected in series with a 41-mH inductor, a 180-Ω resistor, and an...

A 8.0-V battery is connected in series with a 41-mH inductor, a 180-Ω resistor, and an open switch. Part A: What is the current in the circuit 0.110 ms after the switch is closed? Express your answer using two significant figures. Part B: How much energy is stored in the inductor at this time? Express your answer using two significant figures.
A 33.0-V battery with negligible internal resistance, a 49.0-Ω resistor, and a 1.25-mH inductor with negligible...

A 33.0-V battery with negligible internal resistance, a 49.0-Ω resistor, and a 1.25-mH inductor with negligible resistance are all connected in series with an open switch. The switch is suddenly closed. How long after closing the switch will the energy stored in the inductor reach one-half of its maximum value?

In the given circuit an inductor of L = 8.45-mH and a resistor of R =...

In the given circuit an inductor of L = 8.45-mH and a resistor of R = 16.9-Ω resistor are connected in series with a dc battery of E = 5.10-V. What is the current in the inductor after the switch has been closed for a long time?
