Homework Answers
Add Answer to:

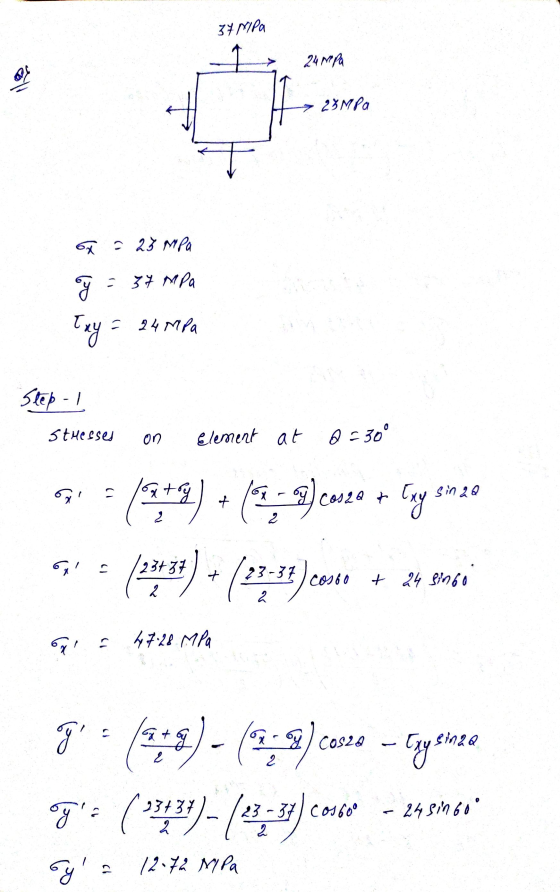

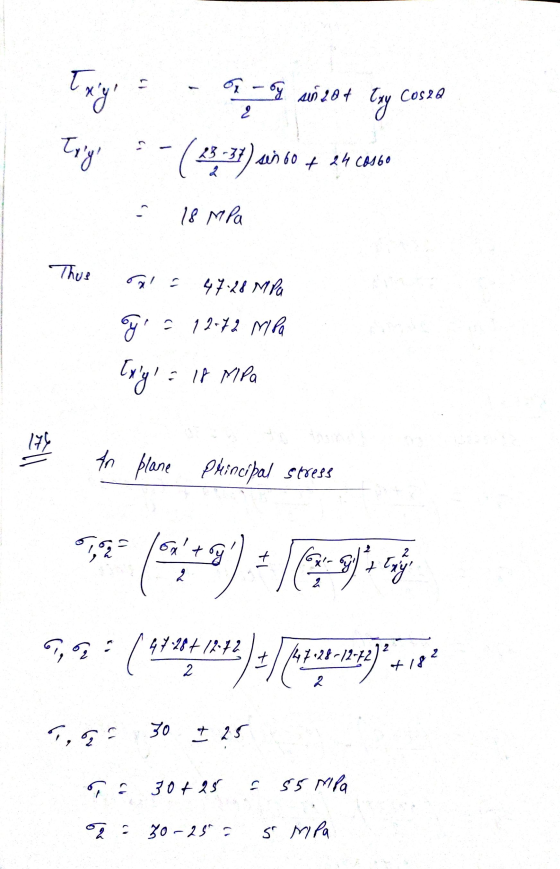

> A37 MPa 24 MPa 23 MPa -X Figure 8 x.y stress element loaded in plane...
1.3-4 An element in plane stress is subjected to stresses ?x-105MPa. ?y-75MPa, and T 25 MPa...
1.3-4 An element in plane stress is subjected to stresses ?x-105MPa. ?y-75MPa, and T 25 MPa (see the figure for Problem 7.3-|), xy Determine the principal stresses and show them on a sketch of a properly oriented element. Oy ay Tyx
Problem 73-2 An element in plane stress is subjected to stresses σ.-105 MPa, dry-75 MPa, and...
Problem 73-2 An element in plane stress is subjected to stresses σ.-105 MPa, dry-75 MPa, and Try-25 MPa (see the figure for Prob. 7.2-2) Determine the principal stresses and show them on a sketch of a properly oriented element.
Question 3 68 MPa 56 MPa 12 MPa Figure 3. Stress components acting on an element....
Question 3 68 MPa 56 MPa 12 MPa Figure 3. Stress components acting on an element. Figure 3 shows an element experiencing several stress components. Determine the following: 1. The stress components oxx, y, and Tyyacting on the element oriented at a counter clockwise angle 0 = 30° from the horizontal x axis 2. The principal stresses, the maximum shear stress and their associated angles Show all results on sketches of properly oriented elements. Note: Solutions MUST be obtained using...
Consider the following stress state in plane stress: Qx = 120 MPa Qy = -30 MPa...
Consider the following stress state in plane stress: Qx = 120 MPa Qy = -30 MPa Txy = 70 MPa a) Calculate the two in-plane principal stresses and show the principal stress state on a properly oriented stress element. b) Calculate the maximum in-plane shear stress. c) Calculate the maximum out-of-plane shear stress. On what plane (x-z or y-z) does this shear stress occur?
A state of plane stress consists of a tensile stress of ox=3 MPa, 0,=5 MPa, and...
A state of plane stress consists of a tensile stress of ox=3 MPa, 0,=5 MPa, and txy=-7 MPa a. Draw the original unrotated element and the corresponding 2-D Mohr's circle construction showing the x-face and y-face coordinates. b. Calculate the principal stresses, o, and O2 and their corresponding principal angles, 0p1,0p2 and show all of these on your Mohr's circle construction and a properly oriented stress element c. Calculate the maximum shear stresses, ITmax and their corresponding angles of maximum...
A state of plane stress consists of a tensile stress of ox=3 MPa, 0,=5 MPa, and...
A state of plane stress consists of a tensile stress of ox=3 MPa, 0,=5 MPa, and Txy=-7 MPa a. Draw the original unrotated element and the corresponding 2-D Mohr's circle construction showing the x-face and y-face coordinates. b. Calculate the principal stresses, 01 and 02 and their corresponding principal angles, 021,092 and show all of these on your Mohr's circle construction and a properly oriented stress element. c. Calculate the maximum shear stresses, ETmax and their corresponding angles of maximum...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below is subjected to the indicated stresses of magnitude 0,1 = 35 MPa, oyl = 57 MPa, and Tryl = 41 MPa Oy Txy Determine the principal normal stresses 01 and 02, the maximum in-plane shear stress Tmax,in-plane, and the angles at which they occur relative to the given stress element. Follow the sign convention. Suppose that when the element is oriented at an angle...
3. Figure shows a state of plane stress consists of normal stresses 60 MPa and Ly-40MPa;...
3. Figure shows a state of plane stress consists of normal stresses 60 MPa and Ly-40MPa; and unknown shear stress, The maximum principal stress was determined to be 104.34 MPa. Using Mohr's cirdle, determine a. the magnitude of the shear stress, b. the principal plane and the minimum principal stress. Then, sketch the element showing all stresses in its proper orientation, c. the maximum shear stress, associated normal stress and the orientation of the element. Then, sketch the element showing...
(17 Marks) 0.2. The state of plane stress at a point is shown on the element in the figure below. 50 MFa 1. Construct its representative Mohr's circle and specify its reference line. 2. Determ...
(17 Marks) 0.2. The state of plane stress at a point is shown on the element in the figure below. 50 MFa 1. Construct its representative Mohr's circle and specify its reference line. 2. Determine the orientation of an element at this point and subjected to the principle stresses. Show the result on the element. 40 SMPa 70 MPa 3. Determine the equivalent state of stress for an element oriented 20 clockwise from the element shown. Show the result on...
1. Given a plane element in a body is subjected to a normal tensile stress in the x-direction of 120 MPa, a normal stre...
1. Given a plane element in a body is subjected to a normal tensile stress in the x-direction of 120 MPa, a normal stress in the y-direction of-75 MPa and shear stresses of 50 MPa, as shown. Determing a. What is the maximum principal stress? b. What is the minimum principal stress? 75 MPa What is the maximum shear stress? 50 MPa c. d. what is the angle to the principal plane, θ e. What is the angle to the...
1.3-4 An element in plane stress is subjected to stresses ?x-105MPa. ?y-75MPa, and T 25 MPa (see the figure for Problem 7.3-|), xy Determine the principal stresses and show them on a sketch of a properly oriented element. Oy ay Tyx
Problem 73-2 An element in plane stress is subjected to stresses σ.-105 MPa, dry-75 MPa, and Try-25 MPa (see the figure for Prob. 7.2-2) Determine the principal stresses and show them on a sketch of a properly oriented element.
Question 3 68 MPa 56 MPa 12 MPa Figure 3. Stress components acting on an element. Figure 3 shows an element experiencing several stress components. Determine the following: 1. The stress components oxx, y, and Tyyacting on the element oriented at a counter clockwise angle 0 = 30° from the horizontal x axis 2. The principal stresses, the maximum shear stress and their associated angles Show all results on sketches of properly oriented elements. Note: Solutions MUST be obtained using...
A state of plane stress consists of a tensile stress of ox=3 MPa, 0,=5 MPa, and txy=-7 MPa a. Draw the original unrotated element and the corresponding 2-D Mohr's circle construction showing the x-face and y-face coordinates. b. Calculate the principal stresses, o, and O2 and their corresponding principal angles, 0p1,0p2 and show all of these on your Mohr's circle construction and a properly oriented stress element c. Calculate the maximum shear stresses, ITmax and their corresponding angles of maximum...
A state of plane stress consists of a tensile stress of ox=3 MPa, 0,=5 MPa, and Txy=-7 MPa a. Draw the original unrotated element and the corresponding 2-D Mohr's circle construction showing the x-face and y-face coordinates. b. Calculate the principal stresses, 01 and 02 and their corresponding principal angles, 021,092 and show all of these on your Mohr's circle construction and a properly oriented stress element. c. Calculate the maximum shear stresses, ETmax and their corresponding angles of maximum...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below is subjected to the indicated stresses of magnitude 0,1 = 35 MPa, oyl = 57 MPa, and Tryl = 41 MPa Oy Txy Determine the principal normal stresses 01 and 02, the maximum in-plane shear stress Tmax,in-plane, and the angles at which they occur relative to the given stress element. Follow the sign convention. Suppose that when the element is oriented at an angle...
3. Figure shows a state of plane stress consists of normal stresses 60 MPa and Ly-40MPa; and unknown shear stress, The maximum principal stress was determined to be 104.34 MPa. Using Mohr's cirdle, determine a. the magnitude of the shear stress, b. the principal plane and the minimum principal stress. Then, sketch the element showing all stresses in its proper orientation, c. the maximum shear stress, associated normal stress and the orientation of the element. Then, sketch the element showing...
(17 Marks) 0.2. The state of plane stress at a point is shown on the element in the figure below. 50 MFa 1. Construct its representative Mohr's circle and specify its reference line. 2. Determine the orientation of an element at this point and subjected to the principle stresses. Show the result on the element. 40 SMPa 70 MPa 3. Determine the equivalent state of stress for an element oriented 20 clockwise from the element shown. Show the result on...
1. Given a plane element in a body is subjected to a normal tensile stress in the x-direction of 120 MPa, a normal stress in the y-direction of-75 MPa and shear stresses of 50 MPa, as shown. Determing a. What is the maximum principal stress? b. What is the minimum principal stress? 75 MPa What is the maximum shear stress? 50 MPa c. d. what is the angle to the principal plane, θ e. What is the angle to the...
