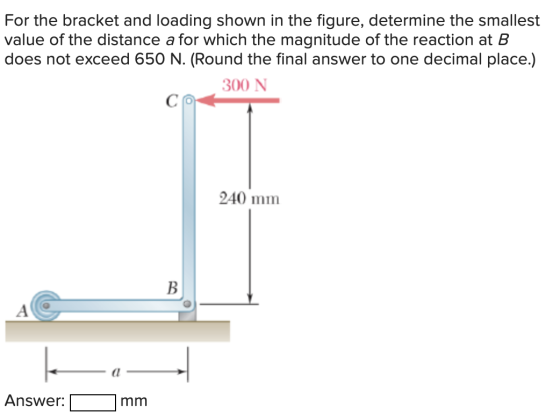

For the bracket and loading
shown in the figure, determine the smallest value of the distance a
for which the magnitude of the reaction at B does not exceed 650 N.
(Round the final answer to one decimal place.)

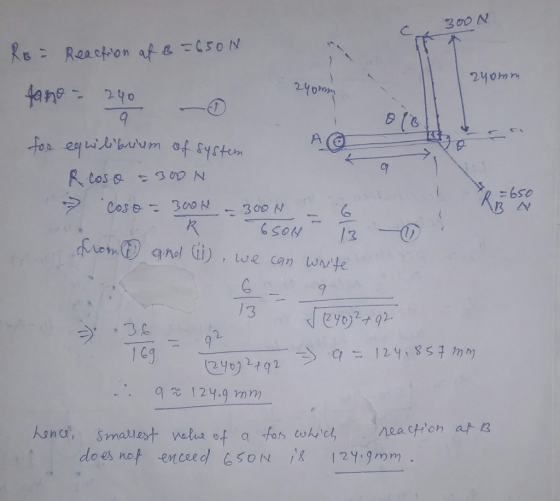

Homework Answers
Add Answer to:
For the bracket and loading
shown in the figure, determine the smallest value of the distance...
Consider the beam and loading shown. Given, P- 120 N and Q 300 N. O F A C 300 5 300 225 Dimensions in mm Identify the correct bending-moment diagram and determine the maximum absolute value of the be...
Consider the beam and loading shown. Given, P- 120 N and Q 300 N. O F A C 300 5 300 225 Dimensions in mm Identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment. Solve the problem using the method of sections. (Round the final answer to one decimal place.) Bending N ning Figure1 Figure 2 Figure 3 1000 Figure 4 The correct bending-moment diagram is Figure 1 The maximum absolute value of the...
For the beam and loading shown, and knowing that distance a = 2m, determine the maximum...
For the beam and loading shown, and knowing that distance a =
2m, determine the maximum value of the distributed load W so the
deflection at midpoint C does not exceed 5 mm Use E = 200 GPa and
Ix = 333 x 106 mm4.
D B D А E
300 lb 300 lb 6 in. A D For the beam and loading shown, determine the...
300 lb 300 lb 6 in. A D For the beam and loading shown, determine the range of the distance a for which the reaction at B does not exceed 100 lb downward or 200 lb upward. 50 11 8 in. 12 in 4 in
300 lb 300 lb - 6 in.-- For the beam and loading shown, determine the range...
300 lb 300 lb - 6 in.-- For the beam and loading shown, determine the range of the distance a for which the reaction at B does not exceed 100 lb downward or 200 lb upward. D С 50 lb Sin. 12 in 4 in 300 lb 6 in. B D C 150 lb 8 in. 12 in. 4 in
For the beam and loadinFor the beam and loading shown, determine (a) the distance a for which the maximum absolute value of the bending moment in the beam is as small as possible, (b) the corresponding value of Nmaxg shown, determine (a) the distance a f
For the beam and loading shown, determine (a) the distance a for which the maximum absolute value of the bending moment in the beam is as small as possible, (b) the corresponding value of Nmax
Consider the beam and loading shown. Given, p=4 ips. References eBook & Resources Section Break culty...
Consider the beam and loading shown. Given, p=4 ips. References eBook & Resources Section Break culty Medium Required in 10.00 points Identify the correct shear diagram and determine the maximum absolute value of the shear. Solve the problem using the method of sections. (Round the final answer to one decimal place.) Identify the correct shear diagram and determine the maximum absolute value of the shear. Solve the problem using the method of sections. (Round the final answer to one decimal...
For the beam and loading shown, design the cross section of the beam, knowing that the...
For the beam and loading shown, design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 12.5 MPa. Round the final answer to one decimal place.) 18 kN 3.6 kN 40 mm IS!
Consider the beam and loading shown. Given: P 8.8 kN 03 m 40 mm 12 mm...
Consider the beam and loading shown. Given: P 8.8 kN 03 m 40 mm 12 mm 150 mm 12 mm 100 mm -200 mm 1.5 m 1. Determine the largest shearing stress in section n-n. (Round the final answer to the nearest whole number.) kPa. The largest shearing stress is 02019 McGraw HIll Bducation Al rights cosorved For the beam and loading shown, consider section-nand take P 177 kN. 160 mm 20 mm 100 mm 30 mm 500 mm- 500...
QUESTION Two farces of 500 N and 300 N act on a bracket as shown, (a)...
QUESTION Two farces of 500 N and 300 N act on a bracket as shown, (a) The magnitude of the total moment of the two orces about point is a single force, (b) the magnitude of this single force is |NCm. When the two forces acting on thee bracket are reduced into N and (c) it would be looated 2 Momeot and Conple on a Bracket of 50 NCn in the clockwise direction is to be applied to the bracket...
The cable supports the loading shown in (Figure 1). Part A Determine the magnitude of the...
The cable supports the loading shown in (Figure 1). Part A Determine the magnitude of the horizontal force P so that XB = 8 m. Express your answer to three significant figures and include the appropriate units. uÀ ? P= Value Units Submit Previous Answers Request Answer Figure 1 of 1 X Incorrect; Try Again; 4 attempts remaining XB 4 m B < Return to Assignment Provide Feedback P 6 m 1 1 m 600 N D 1 -2 m-
Consider the beam and loading shown. Given, P- 120 N and Q 300 N. O F A C 300 5 300 225 Dimensions in mm Identify the correct bending-moment diagram and determine the maximum absolute value of the bending moment. Solve the problem using the method of sections. (Round the final answer to one decimal place.) Bending N ning Figure1 Figure 2 Figure 3 1000 Figure 4 The correct bending-moment diagram is Figure 1 The maximum absolute value of the...
For the beam and loading shown, and knowing that distance a =
2m, determine the maximum value of the distributed load W so the
deflection at midpoint C does not exceed 5 mm Use E = 200 GPa and
Ix = 333 x 106 mm4.
D B D А E
300 lb 300 lb 6 in. A D For the beam and loading shown, determine the range of the distance a for which the reaction at B does not exceed 100 lb downward or 200 lb upward. 50 11 8 in. 12 in 4 in
300 lb 300 lb - 6 in.-- For the beam and loading shown, determine the range of the distance a for which the reaction at B does not exceed 100 lb downward or 200 lb upward. D С 50 lb Sin. 12 in 4 in 300 lb 6 in. B D C 150 lb 8 in. 12 in. 4 in
Consider the beam and loading shown. Given, p=4 ips. References eBook & Resources Section Break culty Medium Required in 10.00 points Identify the correct shear diagram and determine the maximum absolute value of the shear. Solve the problem using the method of sections. (Round the final answer to one decimal place.) Identify the correct shear diagram and determine the maximum absolute value of the shear. Solve the problem using the method of sections. (Round the final answer to one decimal...
For the beam and loading shown, design the cross section of the beam, knowing that the grade of timber used has an allowable normal stress of 12.5 MPa. Round the final answer to one decimal place.) 18 kN 3.6 kN 40 mm IS!
Consider the beam and loading shown. Given: P 8.8 kN 03 m 40 mm 12 mm 150 mm 12 mm 100 mm -200 mm 1.5 m 1. Determine the largest shearing stress in section n-n. (Round the final answer to the nearest whole number.) kPa. The largest shearing stress is 02019 McGraw HIll Bducation Al rights cosorved For the beam and loading shown, consider section-nand take P 177 kN. 160 mm 20 mm 100 mm 30 mm 500 mm- 500...
QUESTION Two farces of 500 N and 300 N act on a bracket as shown, (a) The magnitude of the total moment of the two orces about point is a single force, (b) the magnitude of this single force is |NCm. When the two forces acting on thee bracket are reduced into N and (c) it would be looated 2 Momeot and Conple on a Bracket of 50 NCn in the clockwise direction is to be applied to the bracket...
The cable supports the loading shown in (Figure 1). Part A Determine the magnitude of the horizontal force P so that XB = 8 m. Express your answer to three significant figures and include the appropriate units. uÀ ? P= Value Units Submit Previous Answers Request Answer Figure 1 of 1 X Incorrect; Try Again; 4 attempts remaining XB 4 m B < Return to Assignment Provide Feedback P 6 m 1 1 m 600 N D 1 -2 m-
