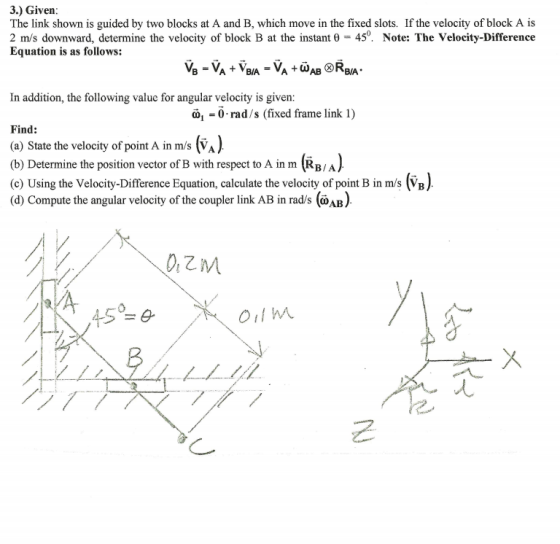

3.) Given: The link shown is guided by two blocks at A and B, which move...
Solve for the angular velocity of link AB in rad/s. Please use four significant figures in...
Solve for the angular velocity of link AB in rad/s.
Please use four significant figures in the answer.
Thank you very much for your help! :)
Solve for the angular velocity of link AB in rad/s B 1.5 m VB w = 30° VA = 3 m/s

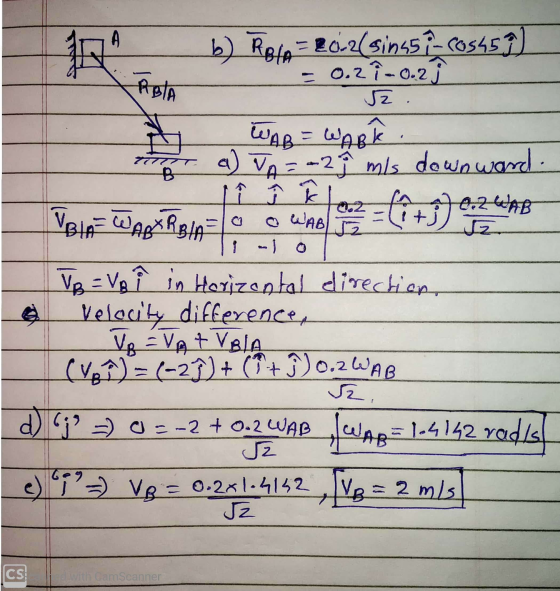

Solve for the angular velocity of link AB in rad/s. You may assume point A is...
Solve for the angular velocity of link AB in rad/s. You may assume point A is moving in the -y direction and point B moves in the x- direction. у A X TB/A 0.2m VA = 2 m/s 45° B VB
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1...
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
EXAMPLE 16.5 The large window in Fig. 16-10 is opened using a hydraulic cylinder AB. If...
EXAMPLE 16.5 The large window in Fig. 16-10 is opened using a hydraulic cylinder AB. If the cylinder extends at a constant rate of 0.5 m/s, determine the angular velocity and angular acceleration of the window at the instant 0 30° 1 m SOLUTION Position Coordinate Equation. The angular motion of the window can be obtained using the coordinate 0, whereas the extension or motion along the hydraulic cylinder is defined using a coordinate s, which measures its length from...
on link BC at the instant shown. Determine the velocity of point Express your answer to...
on link BC at the instant shown. Determine the velocity of point Express your answer to three significant figures and include the appropriate units. Link CD has an angular velocity of wCD (Figure 1) 6 rad/s. C. 7 Value Units UB = Figure 1 of 1 Submit Request Answern Part B 0.3 m 0.3 m Determine the angular velocity link AB at the instant shown. Express your answer to three significant figures and include the appropriate units. 0.6 m CD=...
(30 Points) Question 3: For the instant shown, link OA has a constant angular velocity wod=4...
(30 Points) Question 3: For the instant shown, link OA has a constant angular velocity wod=4 rad/s CCW, while link AB has an angular velocity of our l rad's CW. Determine (a) the angular acceleration of link AB, QAB. (b) the acceleration vector of point B, as. 15 WAB OA - 200 mm AB-400 mm БА WOA 750 o Kinematic Diagram of link OA Show position vector and acceleration component vectors Kinematic Diagram of link AB Show position vector and...
Block B of the mechanism is pin connected to the link BC while free to move...
Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of WBC = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) D с ---600--0A
point AB is pinned to the slider B. The wheel is fixed. The wheel has a...
point AB is pinned to the slider B. The wheel is fixed. The wheel
has a radius r=0.6m and the link AB of length L=3m. currently, the
slider is sliding along the horizontal track with a cinstant
velocity vb= 6m/s.
What is the angular velocity of the wheel and of link
AB.
What is the velocity of point A.
What is the angular accelearation, magnitude and direction, of
the wheel and of link AB.
What is the acceleration of point...
dynamics Given: VA = 2 m/s down incline 0.3m 60 Find VB 8 WAB velour *...
dynamics
Given: VA = 2 m/s down incline 0.3m 60 Find VB 8 WAB velour * Angular Velouty of B Velocity of AB Solve this using two Different methods. 1) Vector 2) I.C. 2 methods 3) graphical
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of t...
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...
Solve for the angular velocity of link AB in rad/s.
Please use four significant figures in the answer.
Thank you very much for your help! :)
Solve for the angular velocity of link AB in rad/s B 1.5 m VB w = 30° VA = 3 m/s
Solve for the angular velocity of link AB in rad/s. You may assume point A is moving in the -y direction and point B moves in the x- direction. у A X TB/A 0.2m VA = 2 m/s 45° B VB
The angular velocity of link AB is WAB = 3 rad/s. (Figure 1) Figure < 1 of 1 2 m Determine the velocity of block C at the instant 0 = 45° and 0 = 30° Express your answer to three significant figures and include the appropriate units. Enter positive value if the velocity is directed to the right and negative value if the velocity is directed to the left. μΑ ] ? Value Vc Units Part B Determine the...
EXAMPLE 16.5 The large window in Fig. 16-10 is opened using a hydraulic cylinder AB. If the cylinder extends at a constant rate of 0.5 m/s, determine the angular velocity and angular acceleration of the window at the instant 0 30° 1 m SOLUTION Position Coordinate Equation. The angular motion of the window can be obtained using the coordinate 0, whereas the extension or motion along the hydraulic cylinder is defined using a coordinate s, which measures its length from...
on link BC at the instant shown. Determine the velocity of point Express your answer to three significant figures and include the appropriate units. Link CD has an angular velocity of wCD (Figure 1) 6 rad/s. C. 7 Value Units UB = Figure 1 of 1 Submit Request Answern Part B 0.3 m 0.3 m Determine the angular velocity link AB at the instant shown. Express your answer to three significant figures and include the appropriate units. 0.6 m CD=...
(30 Points) Question 3: For the instant shown, link OA has a constant angular velocity wod=4 rad/s CCW, while link AB has an angular velocity of our l rad's CW. Determine (a) the angular acceleration of link AB, QAB. (b) the acceleration vector of point B, as. 15 WAB OA - 200 mm AB-400 mm БА WOA 750 o Kinematic Diagram of link OA Show position vector and acceleration component vectors Kinematic Diagram of link AB Show position vector and...
Block B of the mechanism is pin connected to the link BC while free to move within the slot of member AD. If link BC is rotating at a constant rate of WBC = 4 rad/s, determine the angular velocity and the Coriolis acceleration of member AD at the instant shown. BC= 200 mm, and AB = 300 m. (30 point) D с ---600--0A
point AB is pinned to the slider B. The wheel is fixed. The wheel
has a radius r=0.6m and the link AB of length L=3m. currently, the
slider is sliding along the horizontal track with a cinstant
velocity vb= 6m/s.
What is the angular velocity of the wheel and of link
AB.
What is the velocity of point A.
What is the angular accelearation, magnitude and direction, of
the wheel and of link AB.
What is the acceleration of point...
dynamics
Given: VA = 2 m/s down incline 0.3m 60 Find VB 8 WAB velour * Angular Velouty of B Velocity of AB Solve this using two Different methods. 1) Vector 2) I.C. 2 methods 3) graphical
1) The disk rolls without slipping with an angular velocity of o 2 rad's and an angular acceleration of -3 rad/s, Link AB is pin connected to the disk at point A which is on the periphery of the disk. The length of the link is 0.5 m and the radius of the wheel is 0.25 m. Find the velocity of point B when A is 0.25m above the ground. 10 points a) VA-W /o o.25 ,775 Find the acceleration...
