Two forces are acting on a box with mass 6.20 kg to pull it along a table (picture below). You are looking at the box from above as it is pulled along the surface of a frictionless table. Given the forces below calculate the net acceleration that the box will experience. Give your answer in m/s2. Round your answer to two decimal places.

F1 = 29.57 N

V1 = 20.64 Degrees

F2 = 44.04 N

V2 = 48.31 Degrees

F2 F1 01 82

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

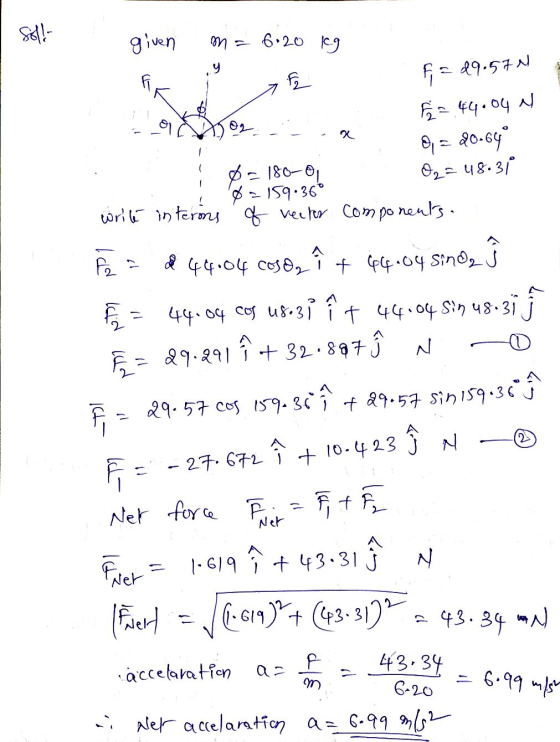

Solls given m = 6-20 kg = 49.57N 6 X = 44.04 N 8, = 80-649 0,48.31 180-01 159.36° write interns of vector components. F del 4plz rate it. thank you

0 0
