Question
Quick and clear steps please

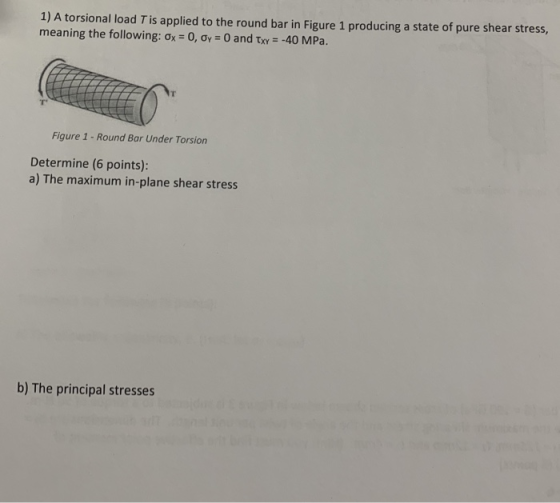

1) A torsional load T is applied to the round bar in Figure 1 producing a state of pure shear stress, meaning the following: σ,-0, σ,-0 and τΧΥ--40 MPa. Figure 1 -Round Bar Under Torsion Determine (6 points): a) The maximum in-plane shear stress b) The principal stresses

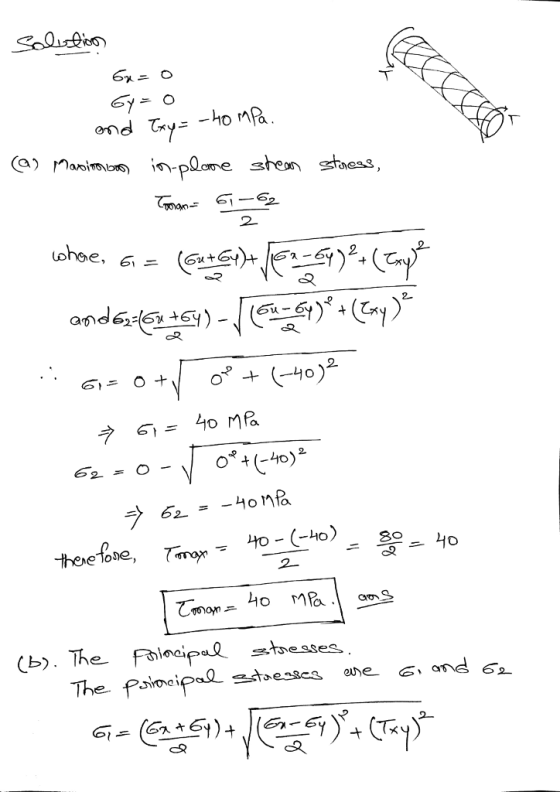

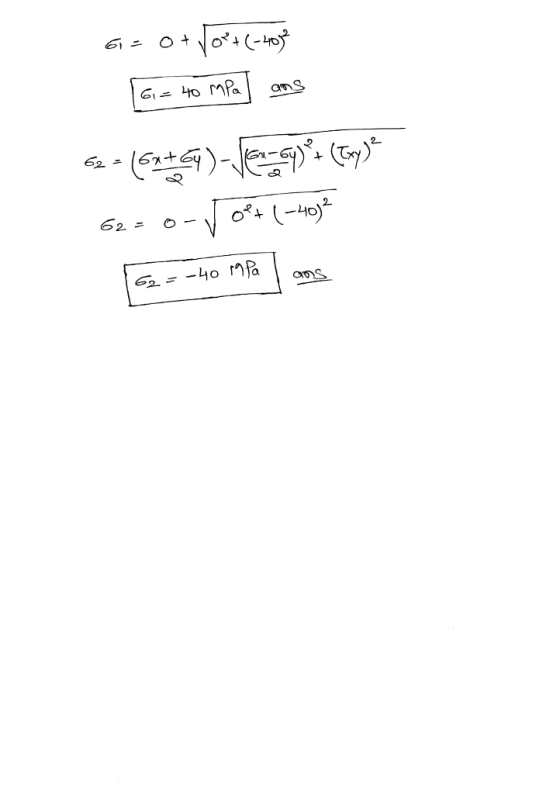

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Quick and clear steps please 1) A torsional load T is applied to the round bar...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 1) Given the following state of stress at a point in a continu 7 0 14...

    1) Given the following state of stress at a point in a continu 7 0 14 [a] =| 08 01 MPa, 14 04 determine the principal stresses and principal directions 2) Find the principal stresses, maximum in-plane shear stresses, maximum shear stress, and the orientations of the principal stresses for the stress state given below. Comment on the orientations of the maximum in-plane shear stresses 12 9 01 [o9 -12 0 MPa. 0 0 6 2

  • (50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to car...

    (50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to carry a tensile load. The engineer has proposed a circular bar with cross-section having a radius of 2X mm. It carries an axial tensile load of İY0 kN. By using equation; i) Calculate the values of principal stresses at the critical area of the bar....

  • The cantilever bar in the figure is made from AISI 1018 CD steel and is statically loaded

    The cantilever bar in the figure is made from AISI 1018 CD steel and is statically loaded with Fy = 800 N, and Fx = Fz = 0. The fillet radius at the wall is 2 mm with theoretical stress concentrations of 1.5 for bending, 1.2 for axial, and 2.1 for torsion.Sut = 440 MPa = 64 kpsi, Sy = 370 MPa = 54 kpsi. Analyze the stress situation in rod AB by obtaining the following information.a) Determine the precise...

  • 5. Due to an applied loading, an element at a point on a machine shaft is...

    5. Due to an applied loading, an element at a point on a machine shaft is subjected to the state of plane stress shown below. Determine the principal stresses and the absolute maximum shear stress at the point. 2 150 MPa 120 MPa 6

  • 1. Given a plane element in a body is subjected to a normal tensile stress in the x-direction of 120 MPa, a normal stre...

    1. Given a plane element in a body is subjected to a normal tensile stress in the x-direction of 120 MPa, a normal stress in the y-direction of-75 MPa and shear stresses of 50 MPa, as shown. Determing a. What is the maximum principal stress? b. What is the minimum principal stress? 75 MPa What is the maximum shear stress? 50 MPa c. d. what is the angle to the principal plane, θ e. What is the angle to the...

  • Handle structure comprised of 3 round bar elements (AB, BC, CD) as shown in the figure...

    Handle structure comprised of 3 round bar elements (AB, BC, CD) as shown in the figure below. The handle is fixed to the wall at A. A 150 lbf force is applied to the free end at D. The dimensions and cross sections are given in the figure. The handle structure is made from AISI 1020 cold drawn (CD) low carbon steel. a) draw the free body diagrams of rods AB, BC, and CD. b) Find the forces, moments and...

  • Consider a point in a structural member that is subjected to plane stress. Normal and shear...

    Consider a point in a structural member that is subjected to plane stress. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sx = 45 MPa, Sy = 10 MPa, and Sxy = 36 MPa. (a) Determine the principal stresses ( σ p 1 > σ p 2 ) and the maximum in-plane shear stress τ max acting at the point. (b) Find the smallest rotation angle θ p (counterclockwise is positive, clockwise is...

  • a) The state of stress at a point is shown on the element in Figure Q4(a)...

    a) The state of stress at a point is shown on the element in Figure Q4(a) Deternine i) The principal stresses (in-plane) and the corresponding principal planes; 1) The maximum in-plane shear stress and the orientation of the corresponding plane as well as the normal stress on that plane. 60 MPa 30 MPa 45 MPa Figure Q4(a)

  • The state of plane stress at a point under the surface of the ANKA airplane wing...

    The state of plane stress at a point under the surface of the ANKA airplane wing is represented on the element oriented as shown in the Figure. Deternine principal Stresses Calculate the maximum in-plane shear stress and associated average normal stress by using the analytical method and Mohr's circle. For each case, determine the corresponding orientation of the element with respect to the element shown and sketch the state of stress on the element. Determine the absolute maximum shear stress...

  • quick and clear steps please 71 A solid aluminum rod of diameter 25mm is made of...

    quick and clear steps please 71 A solid aluminum rod of diameter 25mm is made of Al-6061 and formed by the extrusion process The extrusion process creates a residual stress of 36 MPa in the rod. The rod is under a tensile load of p 50 kN. AI-6061 has a yield strength of 270 Mpa. (8 points) a) Is the 36 MPa residual stress in the center of the rod compressive or tensilei? b) Using your answer from part (a),...
