Need help finding the answer for part c. The emf in the figure below is 4.46...

Question

Question

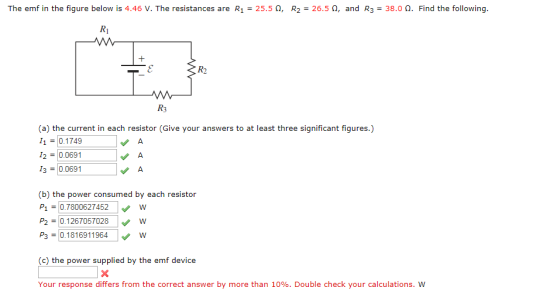

The emf in the figure below is 4.46 V. The resistances are R1-25.5 Ω, R-26.5 Ω, and R3 38.0 Ω. Find the following RI R2 Ri (a

Need help finding the answer for part c.

science physics

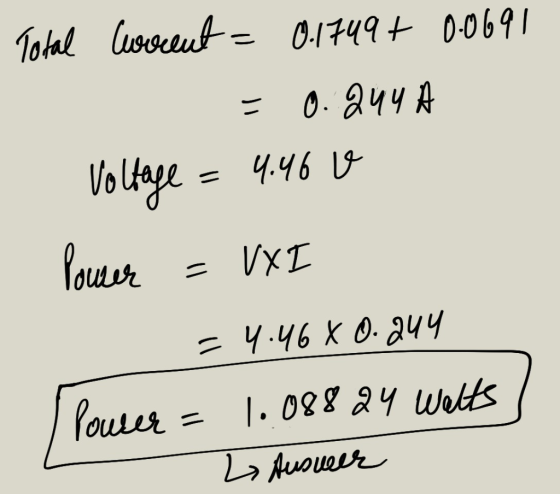

Answer 1

Answer #1

Answer 2
