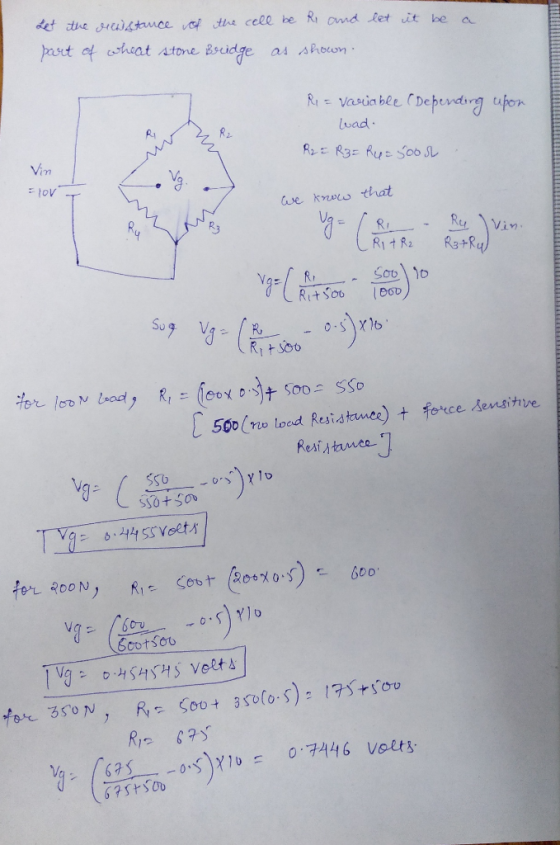

At no load , the resistance of the cell is 500N. When load is applied, the new resistance becomes initial resistance plus change in resistance due to force sensitivity trait.
So. R1 = 500 + sensitivity*load
Add Answer to:
7.13 A resistive element of a force cell forms one leg of a Wheatstion bridge. If...
A force sensor has as its output a change in resistance. The sensor forms one leg (Ri) of a basic Wheatstone bridge. The sensor resistance with no force load is 200 2, and its static sensitivity is...
A force sensor has as its output a change in resistance. The sensor forms one leg (Ri) of a basic Wheatstone bridge. The sensor resistance with no force load is 200 2, and its static sensitivity is 0.2 ОЛ. Each arm of the bridge is initially 200 Ri R2 0) 14 13 R3 1s o O V-10 V Determine the bridge output for applied loads of 100, 200, and 350N. The bridge is operated as a deflection bridge, with an...
2- A force sensor has as its output a change in resistance. The sensor forms one...
2- A force sensor has as its output a change in resistance. The sensor forms one leg (RI) of a basic Wheatstone bridge. The sensor resistance with no force load is 600 ohms and its static sensitivity is 0.6 ohms/Newton. Each arm of the bridge is initially 600 ohms. All resistors are 14 W. a- Determine the bridge output for an applied load of 300N with an input voltage of 12 volts. - Determine the current flow and power consumption...
A force sensor with the static sensitivity 2.5 Ohms/N generates a change in resistance on its...
A force sensor with the static sensitivity 2.5 Ohms/N generates a change in resistance on its output. This sensor is placed in one arm of the deflection bridge with an input voltage of 9 V in order to measure this resistance change. With no force applied, the transducer’s resistance is 200 Ohms, and all resistances in the bridge’s arms are equal. (a) Draw the schematic diagram of the deflection bridge: (b) Calculate the output voltage of the bridge for forces...
A worker lifts various loads with the same lever. The distance of the applied force from...
A worker lifts various loads with the same lever. The distance
of the applied force from the fulcrum is 4.00 m and the distance
from the fulcrum to the load is 0.750 m. A graph of resistance
force vs. effort force is shown. What is the mechanical advantage
of the lever? What is the ideal mechanical advantage of the lever?
What is the efficiency of the lever? Show your work.
Lever: Effort Force vs Resistance force 400 350 Z 300...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os,...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
1. According to the paper, what does lactate dehydrogenase (LDH) do and what does it allow...
1. According to the paper, what does lactate dehydrogenase
(LDH) do and what does it allow to happen within the myofiber? (5
points)
2. According to the paper, what is the major disadvantage of
relying on glycolysis during high-intensity exercise? (5
points)
3. Using Figure 1 in the paper, briefly describe the different
sources of ATP production at 50% versus 90% AND explain whether you
believe this depiction of ATP production applies to a Type IIX
myofiber in a human....
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
A force sensor has as its output a change in resistance. The sensor forms one leg (Ri) of a basic Wheatstone bridge. The sensor resistance with no force load is 200 2, and its static sensitivity is 0.2 ОЛ. Each arm of the bridge is initially 200 Ri R2 0) 14 13 R3 1s o O V-10 V Determine the bridge output for applied loads of 100, 200, and 350N. The bridge is operated as a deflection bridge, with an...
2- A force sensor has as its output a change in resistance. The sensor forms one leg (RI) of a basic Wheatstone bridge. The sensor resistance with no force load is 600 ohms and its static sensitivity is 0.6 ohms/Newton. Each arm of the bridge is initially 600 ohms. All resistors are 14 W. a- Determine the bridge output for an applied load of 300N with an input voltage of 12 volts. - Determine the current flow and power consumption...
A worker lifts various loads with the same lever. The distance
of the applied force from the fulcrum is 4.00 m and the distance
from the fulcrum to the load is 0.750 m. A graph of resistance
force vs. effort force is shown. What is the mechanical advantage
of the lever? What is the ideal mechanical advantage of the lever?
What is the efficiency of the lever? Show your work.
Lever: Effort Force vs Resistance force 400 350 Z 300...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
1. According to the paper, what does lactate dehydrogenase
(LDH) do and what does it allow to happen within the myofiber? (5
points)
2. According to the paper, what is the major disadvantage of
relying on glycolysis during high-intensity exercise? (5
points)
3. Using Figure 1 in the paper, briefly describe the different
sources of ATP production at 50% versus 90% AND explain whether you
believe this depiction of ATP production applies to a Type IIX
myofiber in a human....
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
