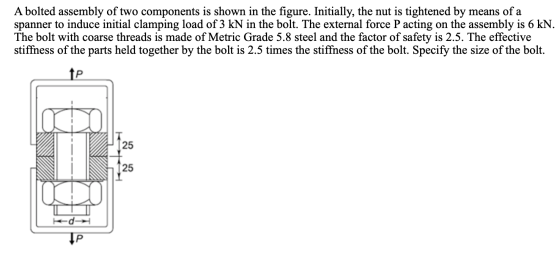

A bolted assembly of two components is shown in the figure. Initially, the nut is tightened by means of a spanner to induce i

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

The solution is shown below

The standard values are obtained from Design Data handbook by Dr.K.Lingaiah

If any doubts please post in comment section

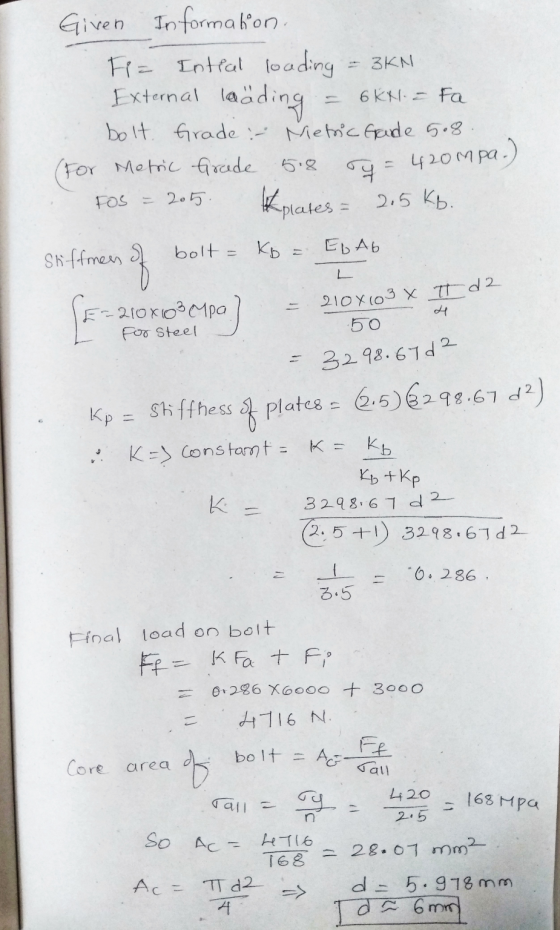

Given Information. Fi= Intial loading = 3KN External laäding = 6kN = Fa bolt Grade - Metric Gade 5.8. (For Metric freede 5.8Core diameter 6mm - di From Data hand book For d, = Gom maior diameters de Gomm or d=6 0084 0084 & Toom. 2) Pitch = Imm 3) pi

0 0
Add a comment
