Homework Answers

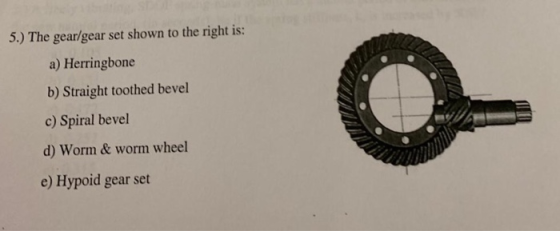

Answer is e) Hyphoid gear set.
Can be identified as the axis of the gears do not intersect. It is a type of spiral bevel gear ( here axis intersects )
