Could we use water instead of mercury to make a barometer? What advantages and disadvantages would...

Question

Question

science physics

Answer 1

Answer #1

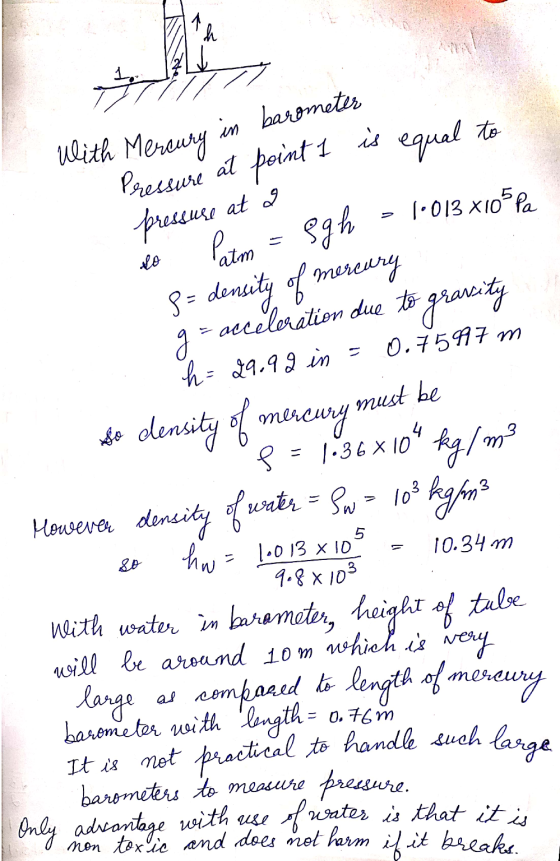

h in barometer is With Mercury equal to Pressure at point 1 1.013 x105 Pa lo pressure at a Patm = 9gh 8= density of mercury g

please rate it up thanks :)

Answer 2
