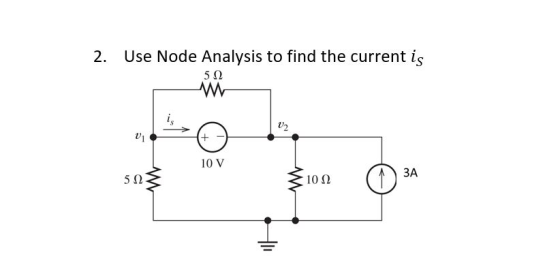

2. Use Node Analysis to find the current is 5Ω u2 U) 10 V 5Ω 10Ω...

2. Use Node Analysis to find the current is 5Ω u2 U) 10 V 5Ω 10Ω 3A

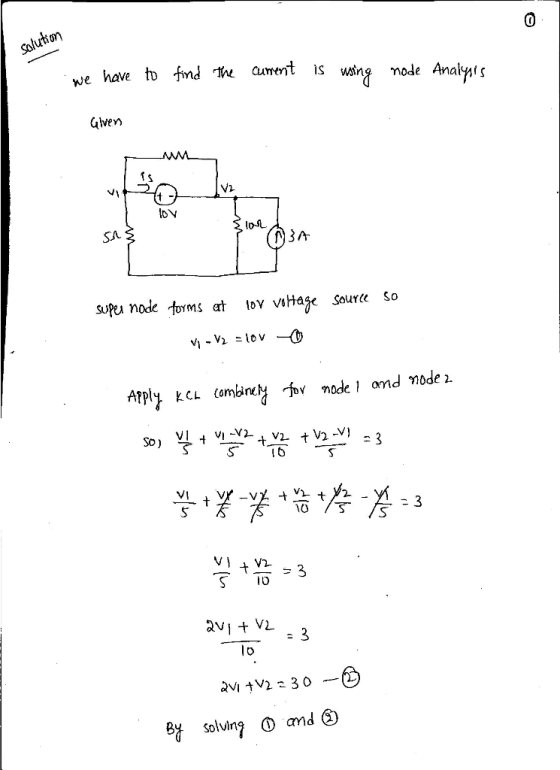

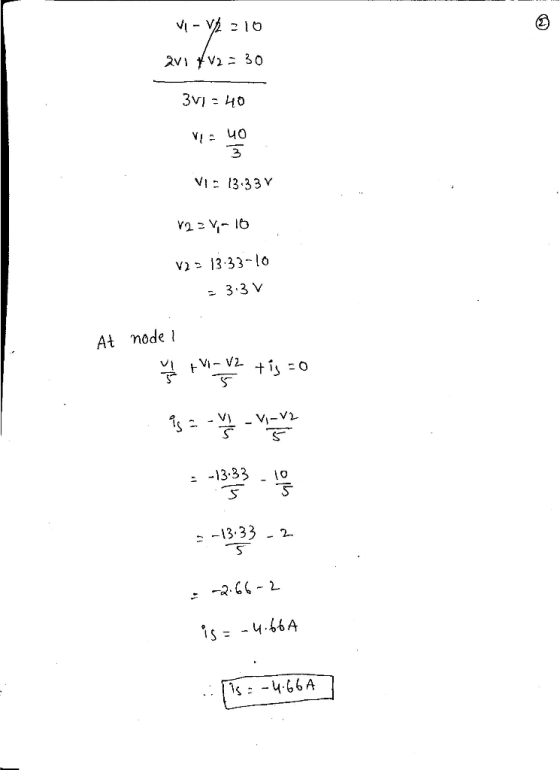

Earn Coin

Coins can be redeemed for fabulous gifts.

Similar Homework Help Questions
• Using mesh current analysis, what is the current I1 in the following circuit below. 10Ω 5Ω Ο 10 V 20 V 1Α 10Ω 5Ω Ο...

Using mesh current analysis, what is the current I1 in the following circuit below. 10Ω 5Ω Ο 10 V 20 V 1Α 10Ω 5Ω Ο 10 V 20 V 1Α

• 12Ω 2 A 10Ω 20Ω 15 Ω 5 A 15 V 5Ω 20 V Use the...

12Ω 2 A 10Ω 20Ω 15 Ω 5 A 15 V 5Ω 20 V Use the superposition method to determine the value of V AB

• Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω...

Problem 1. Perform the following for the circuit below using the node voltage method: 10Ω 10Ω 5i a) Calculate ia b) Calculate v c) Calculate Psource,5ia Problem 2. Perform the following for the circuit below using the node voltage method: 10Ω 1 4Ω 2 60V+ 30A V. 3 2Ω 5Ω 3 a) Calculate vi, v2 and vs b) Calculate Psource 30A c) Calculate Psource,Gov node voltage method Problem 3. Perform the following for the circuit below using the 10V 4Ω...

• explain clearly and step by step using to study for final exam. will rate tthanks Problem 1: Consider the electrical circuit below and assume R1 = 12Ω, 10Ω, R3-9 Ω, R4-8 Ω, i,-3A, and v.-2 V. Using,...

explain clearly and step by step using to study for final exam. will rate tthanks Problem 1: Consider the electrical circuit below and assume R1 = 12Ω, 10Ω, R3-9 Ω, R4-8 Ω, i,-3A, and v.-2 V. Using, Node-Voltage method, please, find the voltages vi, U2, v3 and the current i depicted in the figure. R1 Vs 1V2 VI RA releience Node . Problem 1: Consider the electrical circuit below and assume R1 = 12Ω, 10Ω, R3-9 Ω, R4-8 Ω, i,-3A,...

• 3. Use Node Voltage Analysis to determine the nodal voltages for the network below. [6 5Ω...

3. Use Node Voltage Analysis to determine the nodal voltages for the network below. [6 5Ω 5Ω V. i2 5290° 30L500V 5Ω is Va =

• Ri R2 Vi 5Ω 10Ω 10 V 10 Figure 1: The circuit of Problem 1 Find V2(t) for all time t20 for the ci...

Ri R2 Vi 5Ω 10Ω 10 V 10 Figure 1: The circuit of Problem 1 Find V2(t) for all time t20 for the circuit shown in Fig. 1 with initial conditions Vi(0) 3V anc ½(0) = 1 V. Ri R2 Vi 5Ω 10Ω 10 V 10 Figure 1: The circuit of Problem 1 Find V2(t) for all time t20 for the circuit shown in Fig. 1 with initial conditions Vi(0) 3V anc ½(0) = 1 V.

• For the given circuit where V- 14 V, use source transformation to find the current i....

For the given circuit where V- 14 V, use source transformation to find the current i. 5Ω 10Ω 2 A 5Ω In the given circuit, the current i is mA Hints References eBook & Resources Hint #1

• 3) Using Nodal analysis technique find Vx in the circuit shown below 10 V 20 2...

3) Using Nodal analysis technique find Vx in the circuit shown below 10 V 20 2 5Ω Vi V2 V3 9 A 10Ω 4) Using superposition theorem find lx for the circuit shown below: 10Ω 30 V+ 10 2 5 S2 -6 A

• Determine the maximum power transfer to terminals ab 5Ω 10 Ω 25 V 0.51, 10Ω OD

Determine the maximum power transfer to terminals ab 5Ω 10 Ω 25 V 0.51, 10Ω OD

• In the circuit below, v1 = -2 V and i1 = -4.5 A. Use mesh analysis...

In the circuit below, v1 = -2 V and i1 = -4.5 A. Use mesh analysis to find Vx and ix. ne crcat tatalsd 45U mesh 5i 30 Ω 16 Ω i1 20 Ω 10Ω 5Ω 2 Vx 40 Ω 50 Ω 25 Ω V. 10Ω 4 i 2013 Paul Hummel BY NC SA
