Question

THIS NEEDS TO BE CODED IN JAVA LANGUAGE

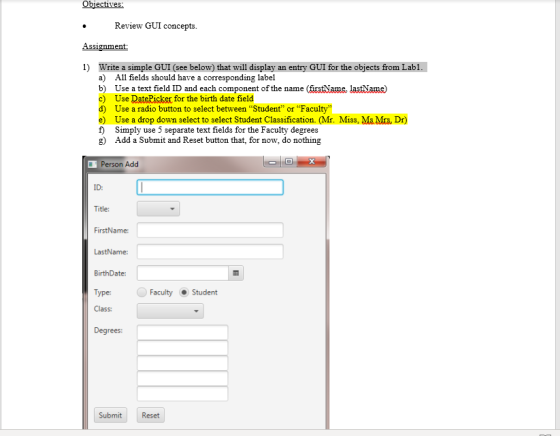

Obiectives: Review GUI concepts. en 1) Write a simple GUI (see below) that will display an entry GUI for the objects from Lab1. a) All fields should have a corresponding label b) Use a text field ID and each component of the name (fistName. lastName) c) Use DatePicker for the birth date field Use a radio button to select between "Student" or Faculty" e) Use a drop down select to select Student Classification. (Mr. Miss, Ms Mrs, Dr) f) Simply use 5 separate text fields for the Faculty degrees g) Add a Submit and Reset button that, for now, do nothing Title: FirstName LastName: BirthDate: Type: Class Degrees FacultyStudent SubmitReset

Answer 1

//javaFx code

import javafx.application.Application;
import javafx.collections.FXCollections;
import javafx.collections.ObservableList;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.*;
import javafx.scene.layout.GridPane;
import javafx.stage.Stage;

import javax.swing.*;
import java.util.ArrayList;
import java.util.Arrays;

public class AddPersonGUI extends Application {
    TextField txtId,txtFirstName,txtLastName,txtDegree1,
            txtDegree2,txtDegree3,txtDegree4,txtDegree5;
    Label lblId,lblTitle,lblFirstName,lblLastName,lblBirtDate,
            lblType,lblClass,lblDegrees;
    Button btnSubmit,btnReset;
    ToggleGroup btnGroup;
    RadioButton rdfaculty,rdStudent;
    DatePicker birthDatePicker;
    ComboBox comboBoxID,comboBoxClass;

    @Override
    public void start(Stage primaryStage) throws Exception {
        ObservableList<String> options =
                FXCollections.observableArrayList(
                        "Mr.",
                        "Miss.",
                        "Mrs.",
                        "Dr."
                        ,"Ms."
                );
        GridPane gridPane= new GridPane();
        //Setting size for the pane
        gridPane.setMinSize(400, 200);

        //Setting the padding
        gridPane.setPadding(new Insets(10, 10, 10, 10));

        //Setting the vertical and horizontal gaps between the columns
        gridPane.setVgap(5);
        gridPane.setHgap(5);

        //Setting the Grid alignment
        gridPane.setAlignment(Pos.TOP_LEFT);
        //=============
        lblId = new Label("ID: ");
        txtId = new TextField();
        gridPane.add(lblId,0,0,1,1);
        gridPane.add(txtId,1,0,1,1);

        //=========================
        lblTitle= new Label("Title: ");
        comboBoxID= new ComboBox();
        comboBoxID.setItems(options);
        gridPane.add(lblTitle,0,1,1,1);
        gridPane.add(comboBoxID,1,1,1,1);

        //==========================
        lblFirstName = new Label("FirstName: ");
        txtFirstName= new TextField();
        gridPane.add(lblFirstName,0,2,1,1);
        gridPane.add(txtFirstName,1,2,1,1);
        //==========================
        lblLastName = new Label("LastName: ");
        txtLastName= new TextField();
        gridPane.add(lblLastName,0,3,1,1);
        gridPane.add(txtLastName,1,3,1,1);
        //=====================================
        lblBirtDate = new Label("BirthDate: ");
        birthDatePicker = new DatePicker();
        gridPane.add(lblBirtDate,0,4,1,1);
        gridPane.add(birthDatePicker,1,4,1,1);

        //============================
        btnGroup= new ToggleGroup();
        lblType = new Label("Type: ");
        rdfaculty = new RadioButton("Faculty");
        rdStudent = new RadioButton("Student");
        //add to button group
        rdStudent.setToggleGroup(btnGroup);
        rdfaculty.setToggleGroup(btnGroup);
        gridPane.add(lblType,0,5);
        gridPane.add(rdfaculty,1,5,2,1);
        gridPane.add(rdStudent,2,5);
        //=============================
        lblClass= new Label("Class: ");
        comboBoxClass = new ComboBox();
        gridPane.add(lblClass,0,6);
        gridPane.add(comboBoxClass,1,6);

        //=====================

        lblDegrees = new Label("Degrees: ");
        txtDegree1 = new TextField();
        txtDegree2 = new TextField();
        txtDegree3 = new TextField();
        txtDegree4 = new TextField();
        txtDegree5 = new TextField();
        gridPane.add(lblDegrees,0,7);
        gridPane.add(txtDegree1,1,7);
        gridPane.add(txtDegree2,1,8);
        gridPane.add(txtDegree3,1,9);
        gridPane.add(txtDegree4,1,10);
        gridPane.add(txtDegree5,1,11);
        //========================

        btnSubmit = new Button("Submit");
        btnReset = new Button("Reset");
        gridPane.add(btnSubmit,0,12);
        gridPane.add(btnReset,1,12);


        Scene scene = new Scene(gridPane);

        primaryStage.setTitle("Person Add");
        primaryStage.setHeight(500);
        primaryStage.setWidth(350);
        primaryStage.setResizable(false);
        primaryStage.setScene(scene);
        primaryStage.show();
    }
    public static void main(String[] args)
    {
        launch(args);
    }
}

//output

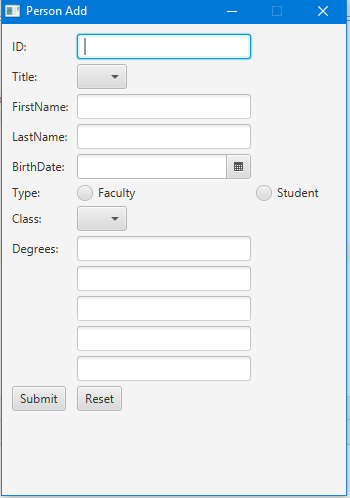

Person Add ID: Title: FirstName: LastName Faculty Type: Student Class Degrees SubmitReset
