LabView

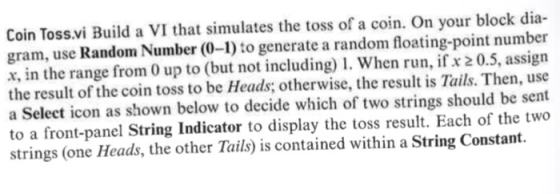

Coin Toss.vi Build a VI that simulates the toss of a coin. On your block dia- gram, use Random Number (0-1) to generate a random floating-point number x, in the range from 0 up to (but not including1. When run, ifx 20.5, assign the result of the coin toss to be Heads; otherwise, the result is Tails. Then, use a Select icon as shown below to decide which of two strings should be sent to a front-panel String Indicator to display the toss result. Each of the two strings (one Heads, the other Tails) is contained within a String Constant.
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Solution(s):

Answer:-

Implementation of Coin Toss in LabView.

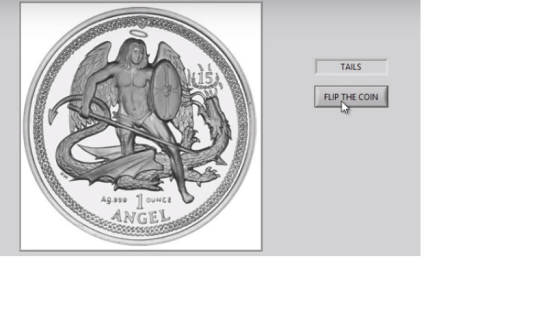

FRONTEND Part of the program

TAILS 15 FLIP THE COIN OUNCE ANGEL
Here,we have a UI which has a button stating "Flip the coin" and a textview which showcases the string based output in the form of either "Heads" or "Tails"

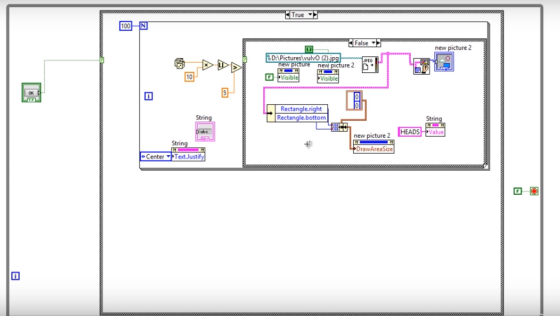

BACKEND Part of the program

True ▼ False new picture 2 10 Visibl 5 Rectangle.right Rectangle.bottonm HEADS Value abc new picture 2 Strin DrawAreaSize Center PTextJustifyHere we are generating a random number between 0 and 10 and if the number is greater than 5 it is Tails and else Head.So the probability of getting a head/tail is 0.5.We are repeating this procedure for 100 times.
