Question

4.70 A full-wave bridge-rectifier circuit with a 500-22 load operates from a 120-V (rms) 60-Hz household supply through a 6-t

1 0
Add a comment Improve this question Transcribed image text
Answer #1

Solution:

Given that

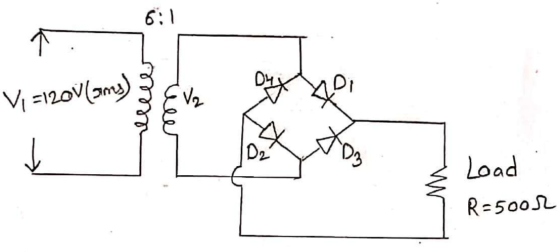

V1 =1200(sms) 3 € Ve Oy ܘܘܩܐ 3 R=5002

Kvi V2

Vi = 1 126 – 20 Vrms = 20 Vrms

V2(peak) = 20 X V2 = 28.2842 V

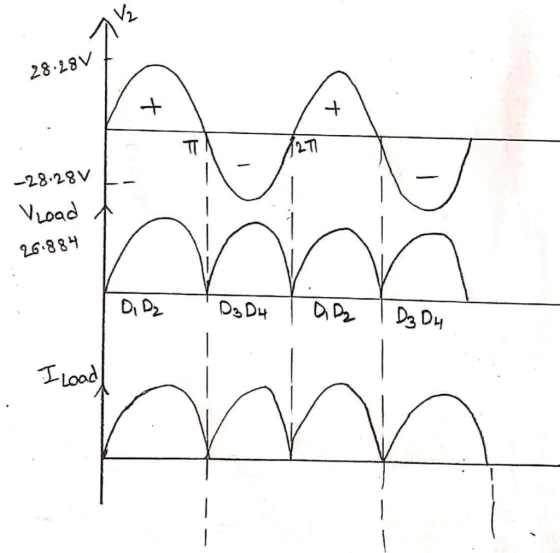

Here, positive half cycle D1 and D2 conducts during negative half cycle D3 and D4 conducts

- 28.280 7² -28.28V Vload 1 26.884 DI D2 D₂ D4 I QD2 D₂ DH

Here, load voltage peak value

= V2mar - 2 x voltage drop of diode during conduction

= V2mar - 2 x 0.7

= 28.2842 -1.4

= 26.884V

Peak value of the rectified voltage across load is V mar(Load) = 26.8841

Conduction time of each diode \infty = \pi rad/sec

T = 60 Hz

T= ==0.01666 sec

Conduction time T 0.01666 -= 8.333 msec

Average voltage:

V.= = | a Jo Vm sin wt

9 (7m soɔ - )A7=

2Vm [:. Vm = max voltage across load]

Average voltage of load :

2 x 26.884 V.=

V. = 17.1148V

Average current through load:

V. R 17.1148 500 -= 0.0342A

1.= 0.0342A = 34.2m A
