The switch in the circuit shown in the Figure is closed at t = 0....

Question

Question

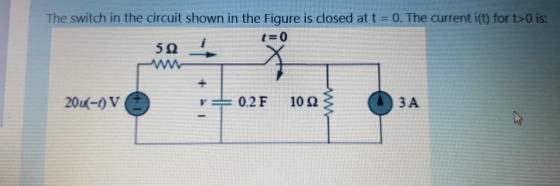

The switch in the circuit shown in the Figure is closed at t = 0. The current i(t) for t>0 is:

The switch in the circuit shown in the Figure is closed at t = 0. The current i(t) for t>O is: t=0 592 ir + 204(-1) V 0.2 F 1

engineering Electrical-Engineering

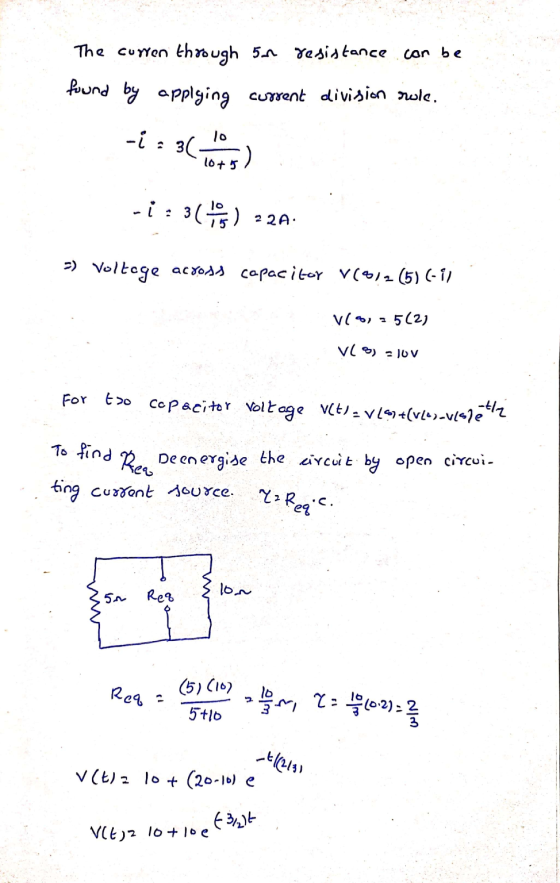

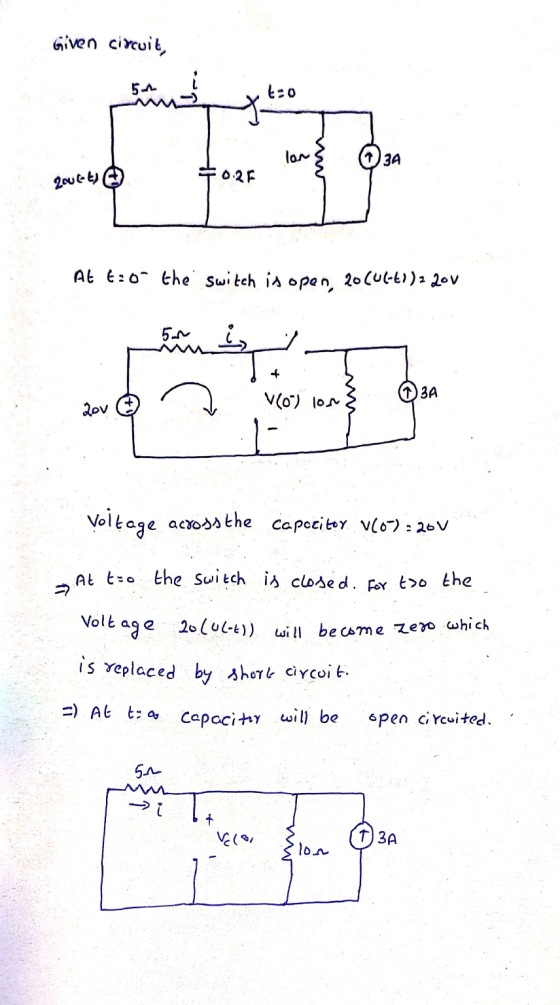

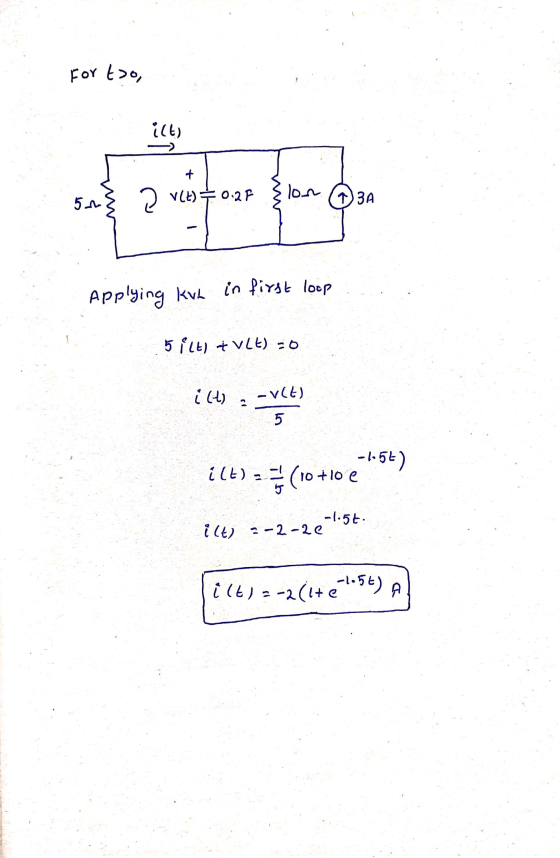

Answer 1

Answer #1

Answer 2
