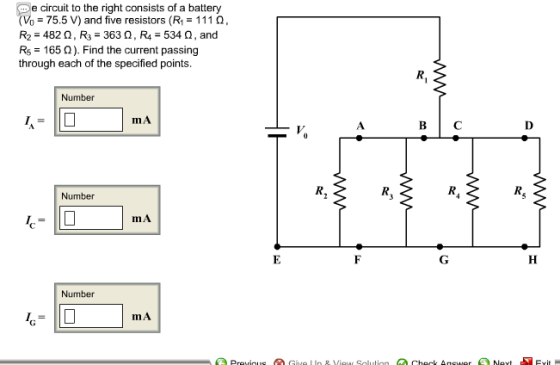

Q5 e circuit to the right consists of a battery (V0 = 75.5 V) and five...

Question

Question

Q5

science physics

Answer 1

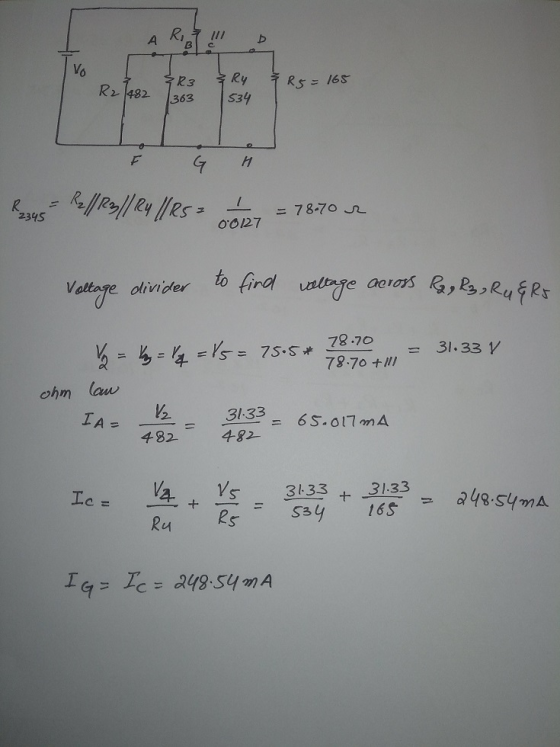

Answer #1

Answer 2

Similar Homework Help Questions

The circuit to the right consists of a battery (Vo = 70.0 V) and five resistors...

The circuit to the right consists of a battery (Vo = 70.0 V) and five resistors (R1 = 411 Ω, R2-482 Ω, R3 = 563 Ω, R4-634 Ω , and R5-565 Ω ). Find the current passing through each of the specified points Number mA B C Number MA Number MA
The circuit to the right consists of a battery (Vo-31.5 V) and five resistors (R1 711...

The circuit to the right consists of a battery (Vo-31.5 V) and five resistors (R1 711 Ω R2-382 Ω , R3 163 Ω , R4-634 Ω , and R5-565 Ω). Find the current passing through each of the specified points. Number mA B C R. Number MA Number MA
The circuit to the right consists of a battery Vo 31.5 V) and five resistors (R1...

The circuit to the right consists of a battery Vo 31.5 V) and five resistors (R1 411, R2-382 Ω , R3-163 Ω, R4-634 Ω, and R5-365 Ω ). Find the current passing through each of the specifie click to edit Number mA B C R. Number mA Number mA

The circuit to the right consists of a battery (V,-26.0 V) and five resistors (R1-511 Ω,...

The circuit to the right consists of a battery (V,-26.0 V) and five resistors (R1-511 Ω, R2-682 Ω , R3-263 Ω , R4-234 Ω,and Rs 365 2). Find the current passing through each of the specified points. Number mA R, Number mA Number mA
A circuit is constructed with five resistors and a battery as shown. The values for the...

A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
The five resistors are identical. The battery delivers 58 W of power to the circuit. What...

The five resistors are identical. The battery delivers 58 W of power to the circuit. What is the resistance R of each resistor? R1 R R3 45 V R R2 L2R R R R5 M R4

A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V =12 V in series with an internal resistance r as shown above left.

A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R1 = R3 = 24Ω, R4 = R5 = 112 Ω and R2 = 126 Ω. The measured voltage across the terminals of the batery is Vbattery = 11.73 V.2) What is r, the internal...
A circuit is constructed with five resistors and one real battery as shown above right. We...

A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The measured voltage across the terminals of the batery is Vbattery = 11.6 V. A circuit is constructed...
The circuit to the right consists of a battery (V = 6.00 V) and five resistors...

The circuit to the right consists of a battery (V = 6.00 V) and five resistors (R = 411 2, R21822, R 263 2, R = 3342, and Rs = 765 12). Determine the current passing through each of the specified points. In =

Consider the electric circuit shown in the figure. Assume that the voltage of the battery is...

Consider the electric circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V, and the resistors are R1 = R2 = R3 = R4 = R5 = 2.00 Ω. What is the equivalent resistance of the circuit? What is the electric current flowing through resistor R3? Consider the electri = R4 = R5 = 2.00 2 circuit shown in the figure. Assume that the voltage of the battery is V = 23.5 V,...
