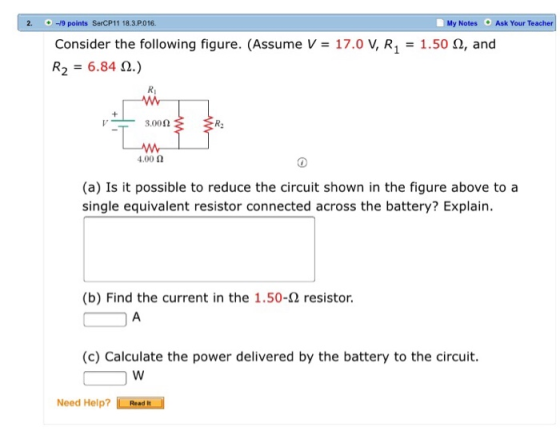

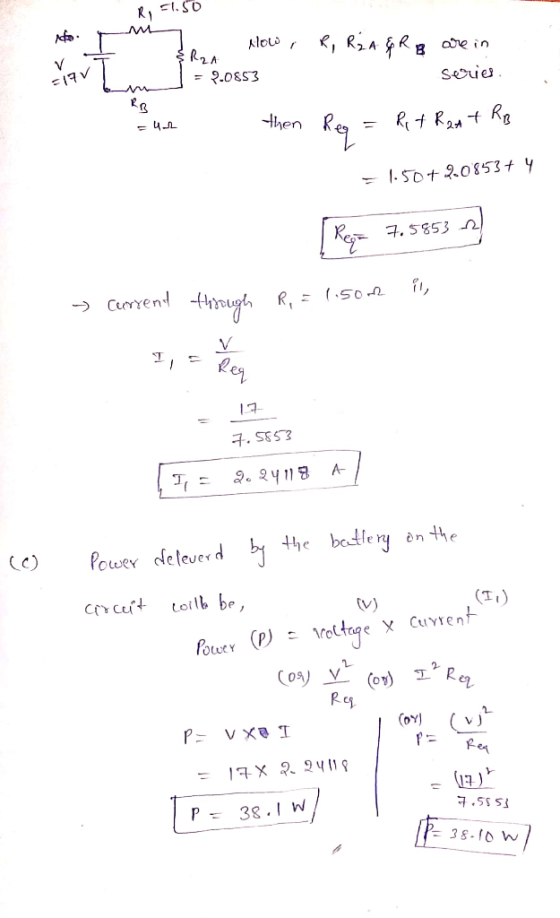

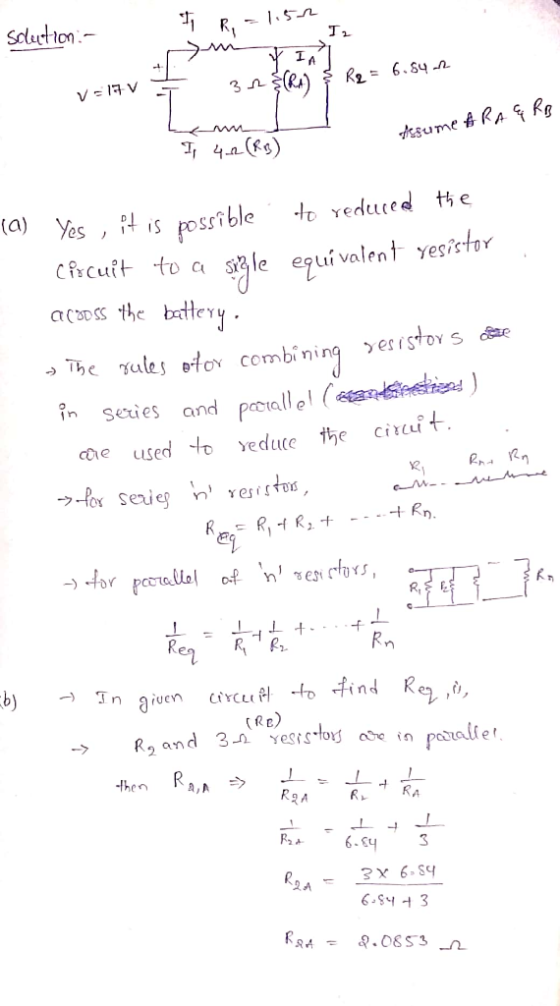

2. 9 points SerCP11 18.3.P016. My Notes Ask Your Teacher Consider the following figure. (Assume V-17.0...
2. -/1 points SerPSE10 27.2.P.013. My Notes Ask Your Teacher Calculate the power delivered to each...
2. -/1 points SerPSE10 27.2.P.013. My Notes Ask Your Teacher Calculate the power delivered to each resistor in the circuit shown in the figure below. (Let R1 = 3.00 2, R2 = 2.00 , and V = 15.0 V.) R 1.000 w 4.00 2 C resistor R1 4.00-ohm resistor resistor R2 1.00-ohm resistor Need Help? Read It Watch It
Motes Ask Your Teacher 10. 0/12 points| Previous Ansiwers PSEB 2B.AF.a4 Active Figure 28.4 Resist...
Motes Ask Your Teacher 10. 0/12 points| Previous Ansiwers PSEB 2B.AF.a4 Active Figure 28.4 Resistors Connected in Series The animation below shows a circuit diagram for two resistors connected in series acrass a battery Instructions Use the sliders to adjust the resistances and battery voltage and observe the effect on the current and voltages across each resistor. Explore In the animation, the two resistors are connected directly to the battery, so they both share a portion of the battery voltage...
(a) Find the equivalent resistance between points a and b in the figure. (R = 17.0...
(a) Find the equivalent resistance between points a and
b in the figure. (R = 17.0 Ω)
(b) Calculate the current in each resistor if a potential
difference of 58.0 V is applied between points a and
b.
I (4.00 Ω)
=
A
I (7.00 Ω)
=
A
I (17.0 Ω)
=
A
I (9.00 Ω)
=
A
Please answer all parts to A and B correctly!!!! Thank you so
much in advance!
Safari File Edit View History Bookmarks Window...
The circuit shown in the figure below is connected for 1.70 min. (Assume R1 = 8.40...
The circuit shown in the figure below is connected for 1.70 min.
(Assume R1 = 8.40 Ω, R2 =
1.80 Ω, and V = 17.0 V.)
(a) Determine the current and direction in each branch of the
circuit.
-Right Branch
-Left Branch
-Middle Branch
(b) Find the energy delivered by each battery.
4.00 V battery = ??????
J
17.0 V battery = ??????
kJ
(c) Find the energy delivered to each resistor.
8.40 Ω resistor = ???
J
5.00 Ω...
Four resistors are connected to a battery with a terminal voltage of 12 V, as shown...
Four resistors are connected to a battery with a terminal
voltage of 12 V, as shown in the figure below. (Assume
R1 = 31.0 Ω and R2 = 70.0
Ω.)
(a) How would you reduce the circuit to an equivalent single
resistor connected to the battery? Use this procedure to find the
equivalent resistance of the circuit.
Ω
(b) Find the current delivered by the battery to this equivalent
resistance.
A
(c) Determine the power delivered by the battery.
W...
Two resistors connected in series have an equivalent resistance of 580 Ω. When they are connected...
Two resistors connected in series have an equivalent resistance
of 580 Ω. When they are connected in parallel, their equivalent
resistance is 123 Ω. Find the resistance of each resistor.
Ω (small resistance)
Ω (large resistance)
Please answer all parts correctly!!!! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 46% DERI Mon 3:20:28 PM 6Ω 5 2 4Ω 8Ω 8. -10 points SerCP11 18.3.P.009 My Notes Ask Your Teacher Two resistors connected in series...
Four resistors are connected to a battery with a terminal voltage of 12 V, as shown in the...
Four resistorsare connected to a battery with a terminal voltage of 12 V, as shown in the figure below. Use the following variables as necessary: R1 = 34.0 Ω and R2 = 85.0Ω.(a) How would you reduce the circuit to an equivalent single resistor connected to the battery? Use this procedure to find the equivalent resistance of thecircuit.________ Ω(b) Find the current delivered by the battery to this equivalent resistance.________ A(c) Determine the power delivered by the battery.______ W(d) Determine...
The circuit shown in the figure below is connected for 2.70 min. (Assume R1 = 6.50...
The circuit shown in the figure below is connected for 2.70 min. (Assume R1 = 6.50 Ω, R2 = 2.60 Ω, and V = 11.0 V.) 5.00Ω 3.00Ω 1.00 Ω 4.00 V (a) Determine the current in each branch of the circuit branch magnitude (A) direction left branch middle branch right branch down down up $1 (b) Find the energy delivered by each battery 4.00 V battery 11.0 V battery kJ (c) Find the energy delivered to each resistor. 6.50...
The circuit shown in the figure below is connected for 2.70 min. (Assume R1 = 8.30...
The circuit shown in the figure below is connected for 2.70 min.
(Assume R1 = 8.30 Ω, R2 =
2.70 Ω, and V = 11.0 V.)
(a) Determine the current in each branch of the circuit. (left
branch, middle branch, right branch)
(b) Find the energy delivered by each battery.
4.00 V battery
J
11.0 V battery
kJ
(c) Find the energy delivered to each resistor.
8.30 Ω resistor
J
5.00 Ω resistor
J
1.00 Ω resistor
J
3.00 Ω...
Three 4.0 Ω resistors are connected in series with a 17.0 V battery. Find the following....
Three 4.0 Ω resistors are connected in series with a 17.0 V battery. Find the following. (a) the equivalent resistance of the circuit Ω (b) the current in each resistor A (c) Repeat for the case in which all three resistors are connected in parallel across the battery. equivalent resistance Ω current in each resistor A
2. -/1 points SerPSE10 27.2.P.013. My Notes Ask Your Teacher Calculate the power delivered to each resistor in the circuit shown in the figure below. (Let R1 = 3.00 2, R2 = 2.00 , and V = 15.0 V.) R 1.000 w 4.00 2 C resistor R1 4.00-ohm resistor resistor R2 1.00-ohm resistor Need Help? Read It Watch It
Motes Ask Your Teacher 10. 0/12 points| Previous Ansiwers PSEB 2B.AF.a4 Active Figure 28.4 Resistors Connected in Series The animation below shows a circuit diagram for two resistors connected in series acrass a battery Instructions Use the sliders to adjust the resistances and battery voltage and observe the effect on the current and voltages across each resistor. Explore In the animation, the two resistors are connected directly to the battery, so they both share a portion of the battery voltage...
(a) Find the equivalent resistance between points a and
b in the figure. (R = 17.0 Ω)
(b) Calculate the current in each resistor if a potential
difference of 58.0 V is applied between points a and
b.
I (4.00 Ω)
=
A
I (7.00 Ω)
=
A
I (17.0 Ω)
=
A
I (9.00 Ω)
=
A
Please answer all parts to A and B correctly!!!! Thank you so
much in advance!
Safari File Edit View History Bookmarks Window...
The circuit shown in the figure below is connected for 1.70 min.
(Assume R1 = 8.40 Ω, R2 =
1.80 Ω, and V = 17.0 V.)
(a) Determine the current and direction in each branch of the
circuit.
-Right Branch
-Left Branch
-Middle Branch
(b) Find the energy delivered by each battery.
4.00 V battery = ??????
J
17.0 V battery = ??????
kJ
(c) Find the energy delivered to each resistor.
8.40 Ω resistor = ???
J
5.00 Ω...
Four resistors are connected to a battery with a terminal
voltage of 12 V, as shown in the figure below. (Assume
R1 = 31.0 Ω and R2 = 70.0
Ω.)
(a) How would you reduce the circuit to an equivalent single
resistor connected to the battery? Use this procedure to find the
equivalent resistance of the circuit.
Ω
(b) Find the current delivered by the battery to this equivalent
resistance.
A
(c) Determine the power delivered by the battery.
W...
Two resistors connected in series have an equivalent resistance
of 580 Ω. When they are connected in parallel, their equivalent
resistance is 123 Ω. Find the resistance of each resistor.
Ω (small resistance)
Ω (large resistance)
Please answer all parts correctly!!!! Thank you so much in
advance!
Safari File Edit View History Bookmarks Window Help 46% DERI Mon 3:20:28 PM 6Ω 5 2 4Ω 8Ω 8. -10 points SerCP11 18.3.P.009 My Notes Ask Your Teacher Two resistors connected in series...
The circuit shown in the figure below is connected for 2.70 min. (Assume R1 = 6.50 Ω, R2 = 2.60 Ω, and V = 11.0 V.) 5.00Ω 3.00Ω 1.00 Ω 4.00 V (a) Determine the current in each branch of the circuit branch magnitude (A) direction left branch middle branch right branch down down up $1 (b) Find the energy delivered by each battery 4.00 V battery 11.0 V battery kJ (c) Find the energy delivered to each resistor. 6.50...
The circuit shown in the figure below is connected for 2.70 min.
(Assume R1 = 8.30 Ω, R2 =
2.70 Ω, and V = 11.0 V.)
(a) Determine the current in each branch of the circuit. (left
branch, middle branch, right branch)
(b) Find the energy delivered by each battery.
4.00 V battery
J
11.0 V battery
kJ
(c) Find the energy delivered to each resistor.
8.30 Ω resistor
J
5.00 Ω resistor
J
1.00 Ω resistor
J
3.00 Ω...
