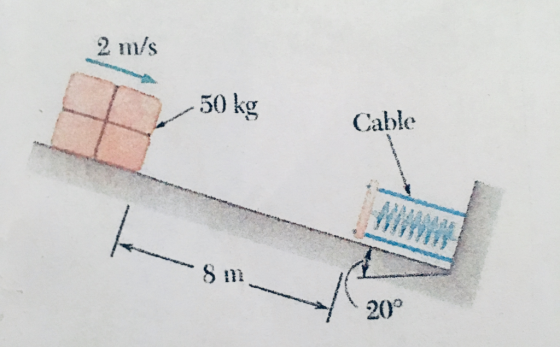

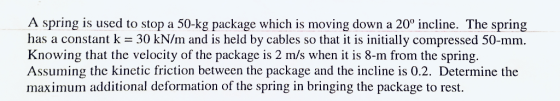

A spring is used to stop a 50-kg package which is moving down a 20 incline....

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

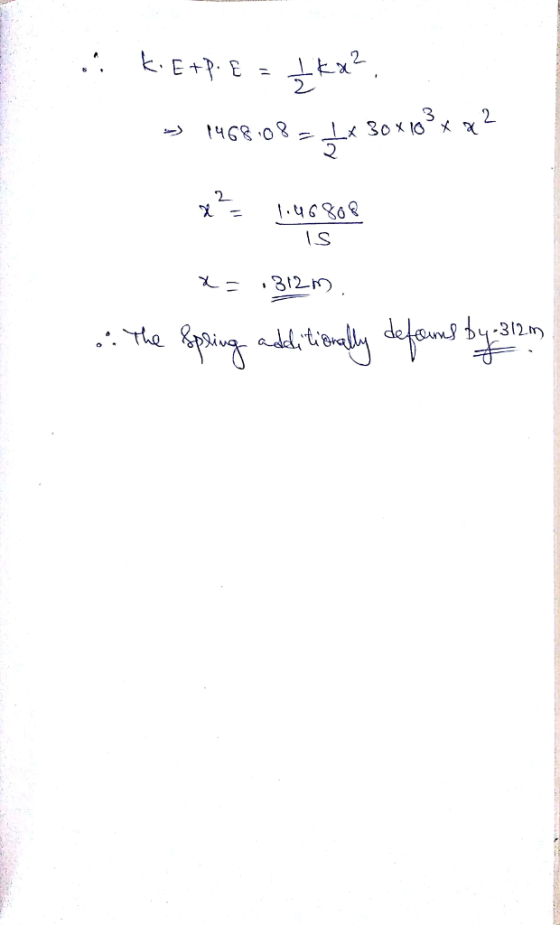

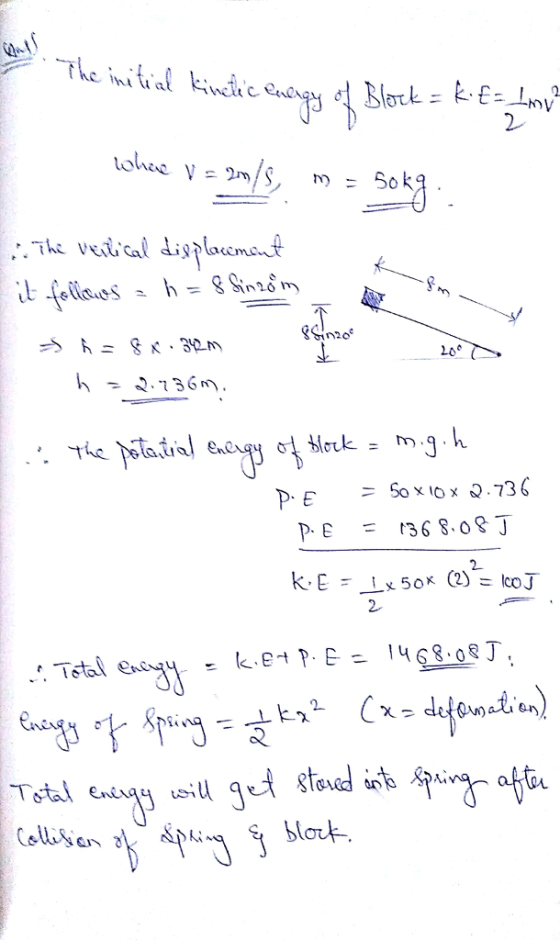

da 20 2 2 C. aend

Answer 2
