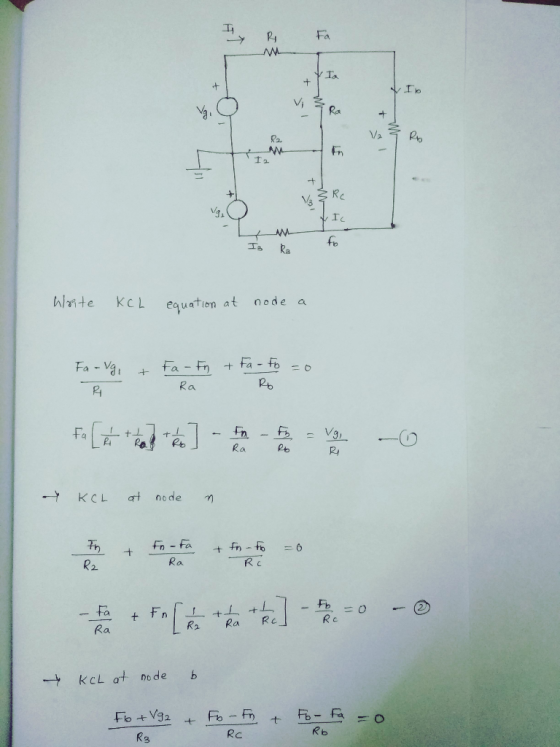

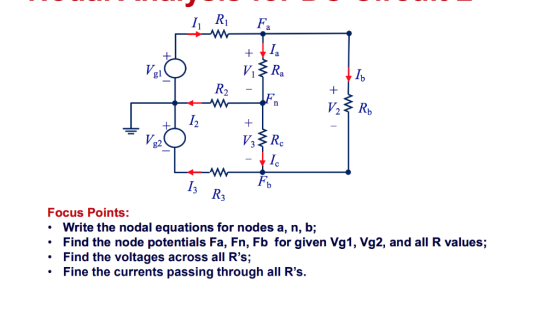

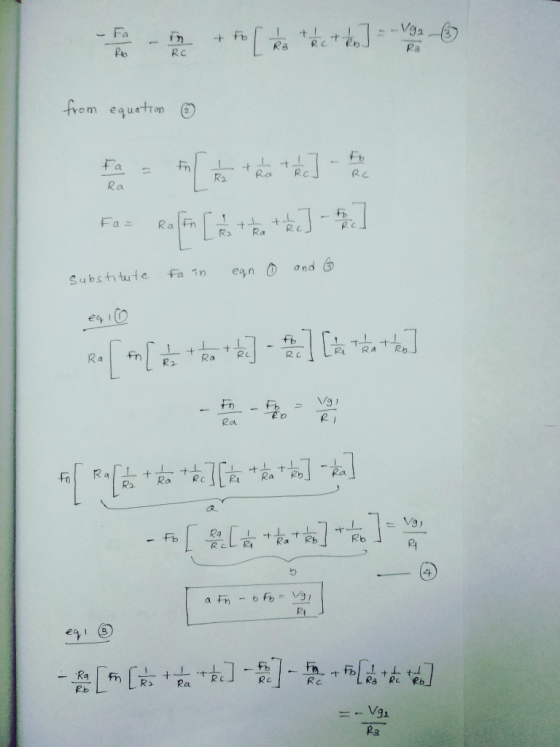

Write the nodal equations for nodes a, n, b

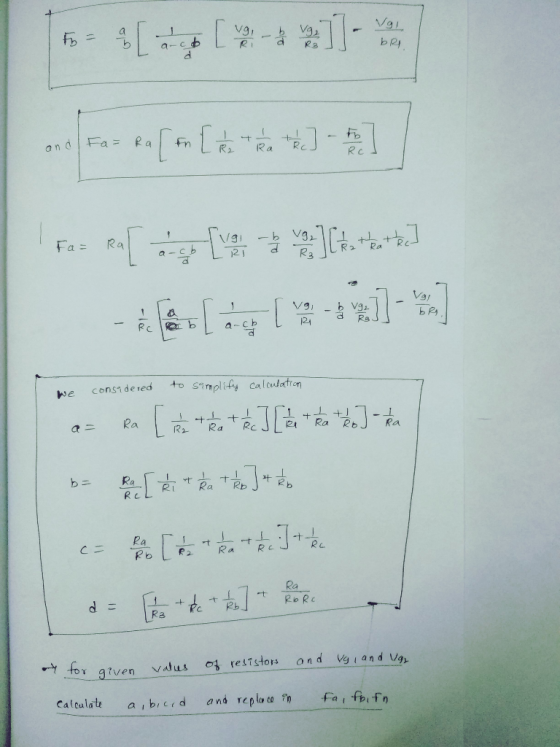

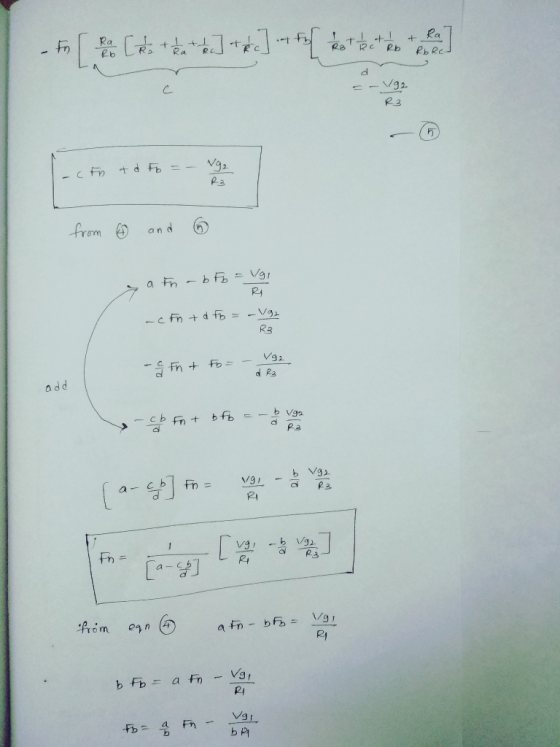

Find the node potentials Fa, Fn, Fb for given Vg1, Vg2, and all R values; •

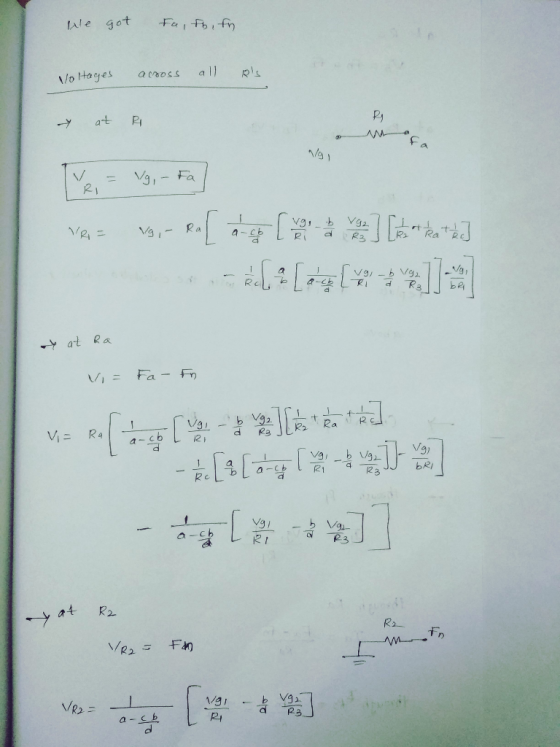

Find the voltages across all R’s;

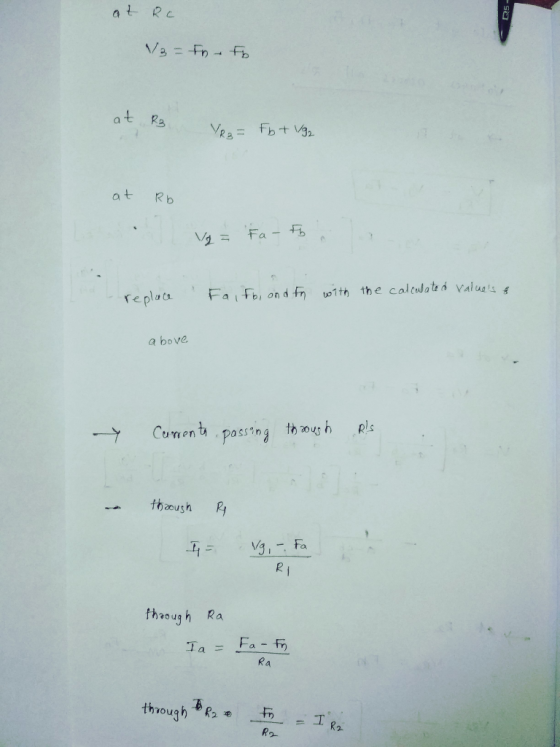

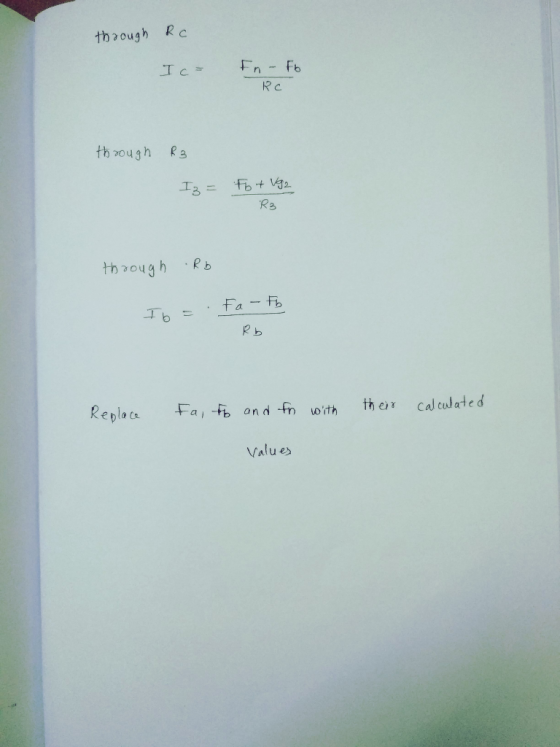

Find the currents passing through all R’s.
Homework Answers
![Fa Ra Rc Ra Fr 2 C らー \/g , [ r-lit .ii][hi..ii] í.] Rb 4+](http://img.homeworklib.com/questions/908791c0-b307-11eb-a20a-ed7d10a31bfa.png?x-oss-process=image/resize,w_560)
