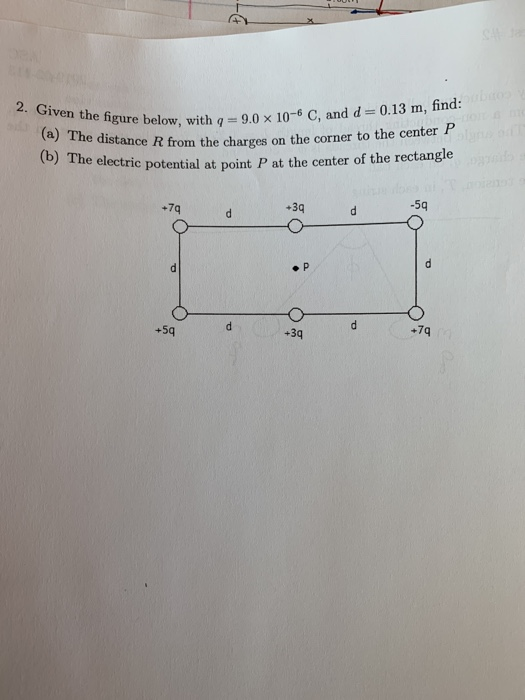

e figure below, with q-9.0 x 10-6 C, and d 0.13 m, find: P at the...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

a)

(2r)^2 = (2d)^2 + d^2

r = 1.118 m

========

b)

net potential at P

V = k * 9*10^-6* ( (3+3)/ (0.13/2)+ ( 7+7+5-5)/ (1.118))

V = 8.49*10^6 V

========

Comment in case any doubt, will reply for sure . Goodluck
