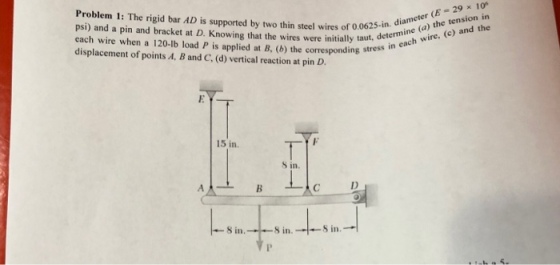

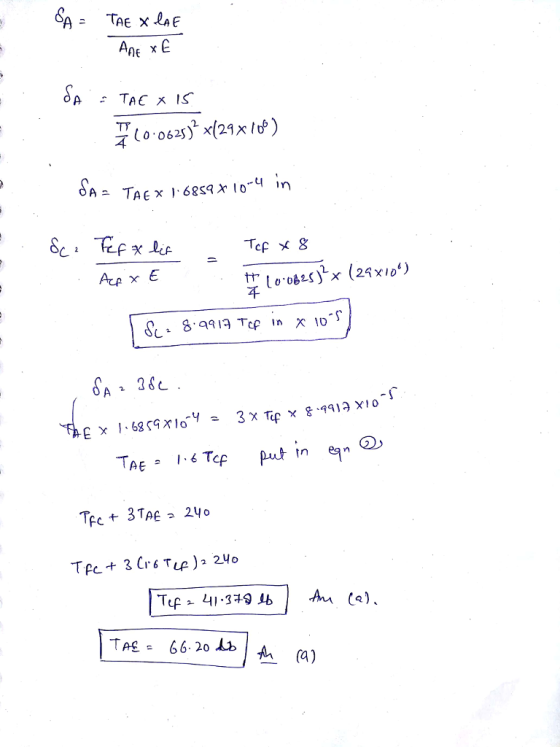

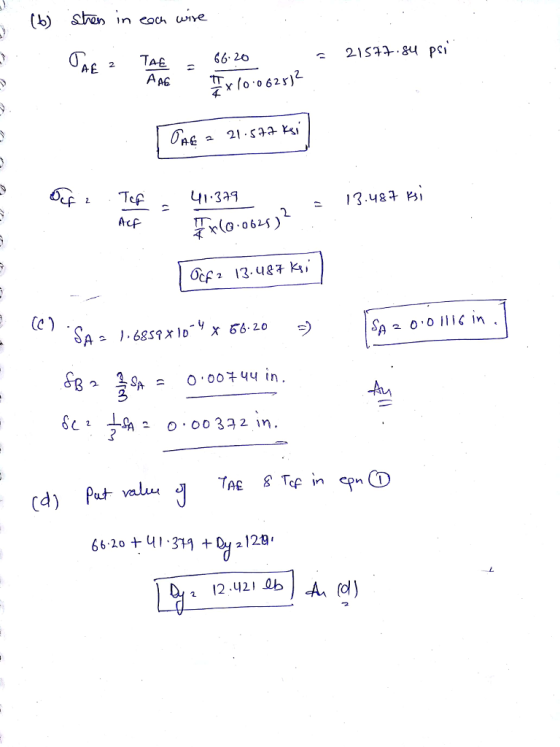

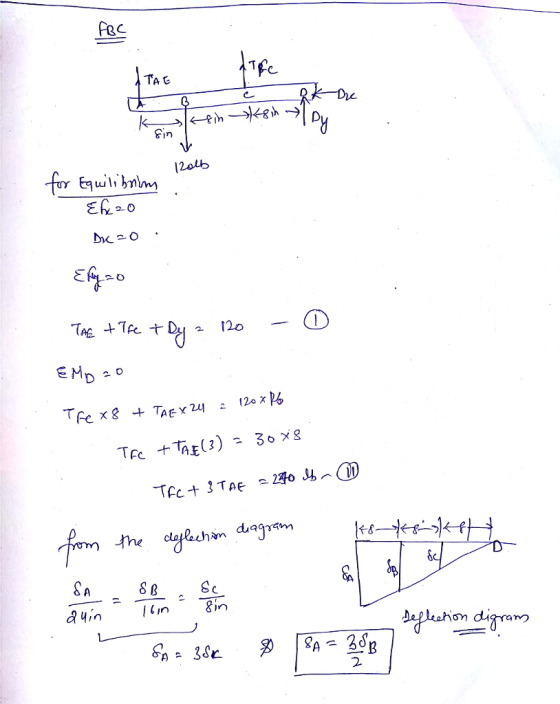

Problem 1: The rigid bar AD is supported by two thin stel wires of 0.0625.in. om...
The rigid bar ABC is supported by two links, AD and BE, of un mm rectangular...
The rigid bar ABC is supported by two links, AD and BE, of un mm rectangular cross section and made of a steel that is assumed to be elastic with E 200GPa. Knowing that a-0.8m, determine (a) the average normal stress in each link, (b) the deflection of points A and B iforn 40x10-11-T SAN
The rigid bar DEF is supported by three wires as shown in the figure below. There is a concentrat...
The rigid bar DEF is supported by three wires as shown in the figure below. There is a concentrated load P at E. The wires are all made of steel with E 289809 MPa, a vield stress of 400 MPa, each has a cross-sectional area of 1000 mm2 and each has a length of 6m. The coefficient of thermal expansion α of the wires is 20x10-6 per℃ Write down the equation of compatibility for the elongations in the three wires....
The rigid bar ABC is supported by a pin at point A and by two wires attached at B and C as shown in the figure
The rigid bar ABC is supported by a pin at point A and by two wires attached at B and C as shown in the figure. If the applied point load P produces a clockwise rotation of the rigid bar ABC of 5°, find the normal strain for both wires. All dimensions in mm.
1) Rigid bar ABC is supported by pin-connected axial member (1) and by a pin connection...
1) Rigid bar ABC is supported by pin-connected axial member (1) and by a pin connection at C, as shown in the figure. A concentrated load is applied to the rigid bar at A. Assume P = 5,300 b, a = 20 in, b= 30 in., c = 13 in., and d = 28 in. Determine the magnitude of the maximum internal shear force within pin C. A. 3670 lb B. 3720 lb C. 3850 lb D. 3940 lb E....
1. Consider the following system that consists of a rigid bar supported by a roller at...
1. Consider the following system that consists of a rigid bar supported by a roller at A and a pin at B Draw a free body diagram of the rigid body AB. Show the three equilibrium equations for the rigid body and circle them. Solve the system of equations to determine the reaction forces at A and B. a) b) c) 390 lb 800 lb ft 8 ft4 ft
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity....
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35º with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity....
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity....
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60'. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
The rigid bar ABC is supported by two links, AD and BE, of un mm rectangular cross section and made of a steel that is assumed to be elastic with E 200GPa. Knowing that a-0.8m, determine (a) the average normal stress in each link, (b) the deflection of points A and B iforn 40x10-11-T SAN
The rigid bar DEF is supported by three wires as shown in the figure below. There is a concentrated load P at E. The wires are all made of steel with E 289809 MPa, a vield stress of 400 MPa, each has a cross-sectional area of 1000 mm2 and each has a length of 6m. The coefficient of thermal expansion α of the wires is 20x10-6 per℃ Write down the equation of compatibility for the elongations in the three wires....
1) Rigid bar ABC is supported by pin-connected axial member (1) and by a pin connection at C, as shown in the figure. A concentrated load is applied to the rigid bar at A. Assume P = 5,300 b, a = 20 in, b= 30 in., c = 13 in., and d = 28 in. Determine the magnitude of the maximum internal shear force within pin C. A. 3670 lb B. 3720 lb C. 3850 lb D. 3940 lb E....
1. Consider the following system that consists of a rigid bar supported by a roller at A and a pin at B Draw a free body diagram of the rigid body AB. Show the three equilibrium equations for the rigid body and circle them. Solve the system of equations to determine the reaction forces at A and B. a) b) c) 390 lb 800 lb ft 8 ft4 ft
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35º with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60°. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar in m), measured...
A nonuniform horizontal bar of mass 15 kg is supported by two massless wires against gravity. The left wire makes an angle 35° with the horizontal, and the right wire makes an angle 60'. The bar has a length of 8 m. The bar is in equilibrium. Find: (a) the tension of the left wire (in N); (b) the tension of the right wire (in N); (c) the position of the center of mass of the bar (in m), measured...
