***Four*** Question 13 (1 point) To ensure maximum power to the load, the maximum power transfer...
***Four***
Question 13 (1 point)
To ensure maximum power to the load, the maximum power transfer
theorem is used to determine which of the following for the
load?
Question 13 options:
A)
Resistance
B)
Voltage
C)
Impedance
D)
Current
Question 14 (1 point)
Because the reactances of a circuit are frequently dependent,
the Thevenin circuit that is found for a particular network is
applicable at any frequency.
Question 14 options:
True
False
Question 15 (1 point)

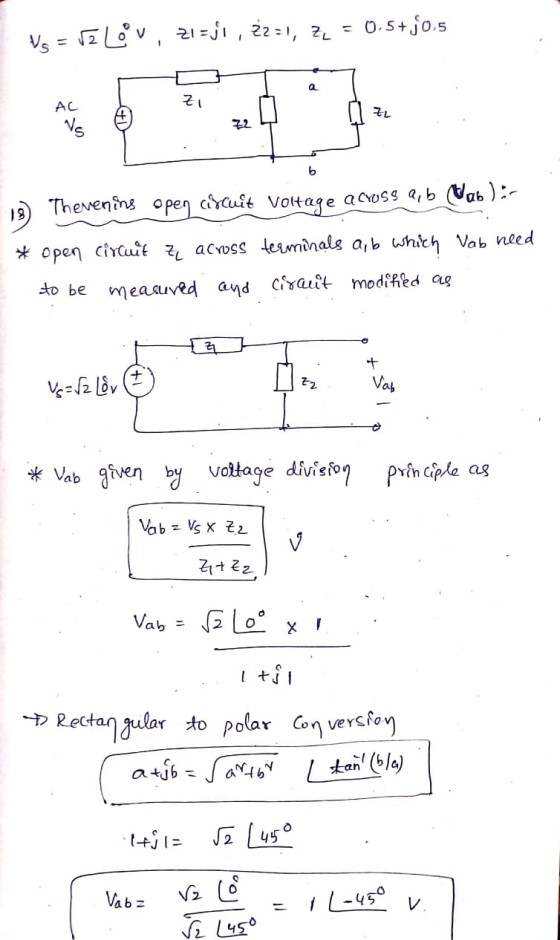

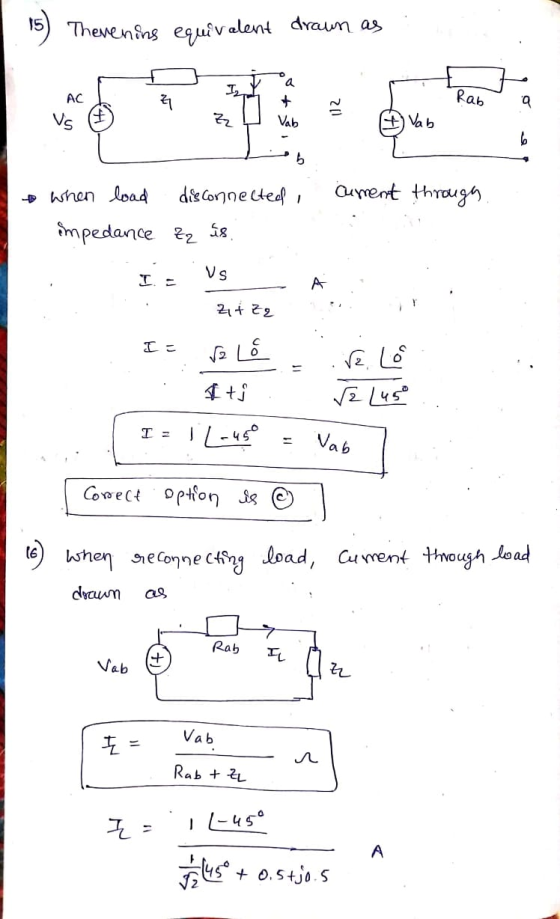

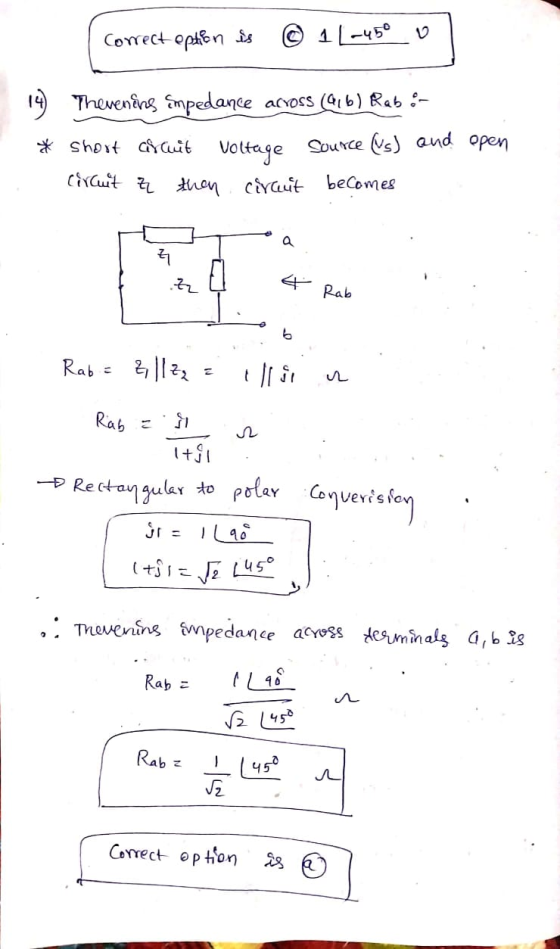

An application of the...
