The weight of the bucket is W = 1490 lb. The cable passes over pulleys at...
The weight of the bucket is W = 1490 lb. The cable passes over
pulleys at A and D. Determine the axial forces in member IK and
JL.

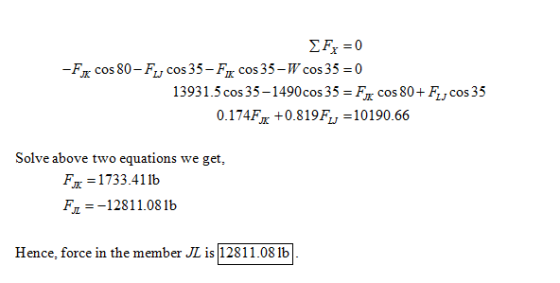

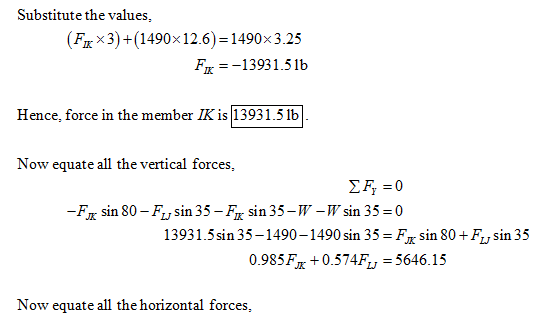

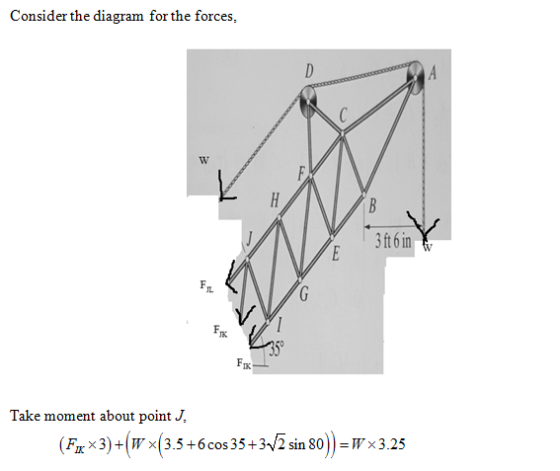

Homework Answers
Add Answer to:
The weight of the bucket is W = 1490 lb. The cable passes over
pulleys at...
Please solve this. Thank you. Required information A weight W= 4 kN is supported by a...
Please solve this. Thank you.
Required information A weight W= 4 kN is supported by a cable that passes over frictionless pulleys at D and F. The cable is attached to a winch at G, and cable segment DG is vertical. Member ABC is built in at A, and members ABC, DCEF, and BE are attached using pins at points B, C, and E. Neglect the weights of individual members. All dimensions are in meters. 0.2 -1.6 0.9 o. LKJI...
A rope, fixed at F, passes over two pulleys D and C. Determine the magnitude of...
A rope, fixed at F, passes over two pulleys D and C.
Determine the magnitude of the forces in all the members of the
truss shown in figure 1.36
SOM2601-2018-1 SOM2601-2017-1* 100% Question 1 A rope, fixed at F, passes over two pulleys D and C Determine the magnitude of the forces in the members BC, DC, BD and DE of the truss shoh in Figure 1 [10] 60 60 60 30P 450 15 kN Figure 1

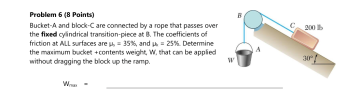

C 200 lb Problem 6 (8 Points) Bucket-A and block-C are connected by a rope that...
C 200 lb Problem 6 (8 Points) Bucket-A and block-C are connected by a rope that passes over the fixed cylindrical transition-piece at B. The coefficients of friction at ALL surfaces are us = 35%, and Mk = 25%. Determine the maximum bucket +contents weight, W, that can be applied without dragging the block up the ramp. 30° Wmax =
If the tension in the cable AB is 125 lb, determine the axial force in the...
If the tension in the cable AB is 125 lb, determine the axial force in the rod, the tension in cable AC. and the weight W, for equilibrium. Please note that the orientation of the x-y-z axes is not what has been generally used in class.
Name: 5. The bucket of the backhoe and its contents have a weight of 1,340 lb...
Name: 5. The bucket of the backhoe and its contents have a weight of 1,340 lb and a center of gravity at G. Determine the forces of the hydraulic cylinder AB and short links AC and AD in order to hold the load in the position shown. The bucket is pinned at E. n (Hint: Take it apart, look for 2-FM's, use Newton's 3rd Law.) FAB= FAC FAD 120 G 0.25 ft 1.5 ft
Part A-Finding the tension in cable AC A weight of 175 lb acts at C on...
Part A-Finding the tension in cable AC A weight of 175 lb acts at C on the strut. Find the magnitude of the tension in cable AC. Learning Goal: Express your answer to three significant figures and include the appropriate units. To apply the condition of equilibrium to three- dimensional systems and solve for unknown forces. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The dimensions...
All dimensions are in meters. 0.23 1.41 087 3.04 0.23 E p 1.30 0 2.48 A...
All dimensions are in meters. 0.23 1.41 087 3.04 0.23 E p 1.30 0 2.48 A weight W-2.57 kN Is supported by a cable that passes over frictionless pulleys at D and F. The cable is attached to a winch at G, and cable segment DG is vertical. Member ABC is built in at4, and members ABC, DCEF, and BE are attached using pins at points B, c, and E. Neglecting the weights of individual members, determine the internal forces...
a cart and a bucket are connected by a strong, lightweight cable over a massless, frictionless...
a cart and a bucket are connected by a strong, lightweight cable over a massless, frictionless pulley. The coefficient of static friction between the cart and the ramp is 0.30 and the coefficient of kinetic friction between the cart and the ramp is 0.15 The cart weight 750kg and the angle between the ramp and the ground is 15 degrees. If the system is initially at rest, what is the greatest mass that the bucket can be, so that the...
Three-Dimensional Force Systems cable AC Part A Finding the tension Learning Goal: weight of 115 lb...
Three-Dimensional Force Systems cable AC Part A Finding the tension Learning Goal: weight of 115 lb acts at C on the strut. Find the magnitude of the tension in cable AC To apply the condition of equilibrium to three-dimensional systems and solve for unknown forces. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The...
Question 2 30 Points The 644 lb weight in the figure is lifted by a motor...
Question 2 30 Points The 644 lb weight in the figure is lifted by a motor which is connected to two attached disks by cables. The total weight of the two disks are 322 lb and Kgyration about O is 18 in. If the motor provides constant 400 lb tension force in the cable, (a) determine the acceleration of the weight. (15 pts.) (b) Total forces applied to point O. (15 pts.) 24" 12" P = 400 lb W =...
Please solve this. Thank you.
Required information A weight W= 4 kN is supported by a cable that passes over frictionless pulleys at D and F. The cable is attached to a winch at G, and cable segment DG is vertical. Member ABC is built in at A, and members ABC, DCEF, and BE are attached using pins at points B, C, and E. Neglect the weights of individual members. All dimensions are in meters. 0.2 -1.6 0.9 o. LKJI...
A rope, fixed at F, passes over two pulleys D and C.
Determine the magnitude of the forces in all the members of the
truss shown in figure 1.36
SOM2601-2018-1 SOM2601-2017-1* 100% Question 1 A rope, fixed at F, passes over two pulleys D and C Determine the magnitude of the forces in the members BC, DC, BD and DE of the truss shoh in Figure 1 [10] 60 60 60 30P 450 15 kN Figure 1
C 200 lb Problem 6 (8 Points) Bucket-A and block-C are connected by a rope that passes over the fixed cylindrical transition-piece at B. The coefficients of friction at ALL surfaces are us = 35%, and Mk = 25%. Determine the maximum bucket +contents weight, W, that can be applied without dragging the block up the ramp. 30° Wmax =
If the tension in the cable AB is 125 lb, determine the axial force in the rod, the tension in cable AC. and the weight W, for equilibrium. Please note that the orientation of the x-y-z axes is not what has been generally used in class.
Name: 5. The bucket of the backhoe and its contents have a weight of 1,340 lb and a center of gravity at G. Determine the forces of the hydraulic cylinder AB and short links AC and AD in order to hold the load in the position shown. The bucket is pinned at E. n (Hint: Take it apart, look for 2-FM's, use Newton's 3rd Law.) FAB= FAC FAD 120 G 0.25 ft 1.5 ft
Part A-Finding the tension in cable AC A weight of 175 lb acts at C on the strut. Find the magnitude of the tension in cable AC. Learning Goal: Express your answer to three significant figures and include the appropriate units. To apply the condition of equilibrium to three- dimensional systems and solve for unknown forces. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The dimensions...
All dimensions are in meters. 0.23 1.41 087 3.04 0.23 E p 1.30 0 2.48 A weight W-2.57 kN Is supported by a cable that passes over frictionless pulleys at D and F. The cable is attached to a winch at G, and cable segment DG is vertical. Member ABC is built in at4, and members ABC, DCEF, and BE are attached using pins at points B, c, and E. Neglecting the weights of individual members, determine the internal forces...
Three-Dimensional Force Systems cable AC Part A Finding the tension Learning Goal: weight of 115 lb acts at C on the strut. Find the magnitude of the tension in cable AC To apply the condition of equilibrium to three-dimensional systems and solve for unknown forces. Express your answer to three significant figures and include the appropriate units. View Available Hint(s) As shown, a mass is being lifted by a strut that is supported by two cables AC and CD. The...
Question 2 30 Points The 644 lb weight in the figure is lifted by a motor which is connected to two attached disks by cables. The total weight of the two disks are 322 lb and Kgyration about O is 18 in. If the motor provides constant 400 lb tension force in the cable, (a) determine the acceleration of the weight. (15 pts.) (b) Total forces applied to point O. (15 pts.) 24" 12" P = 400 lb W =...
