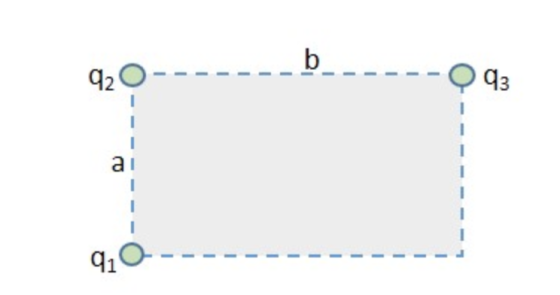

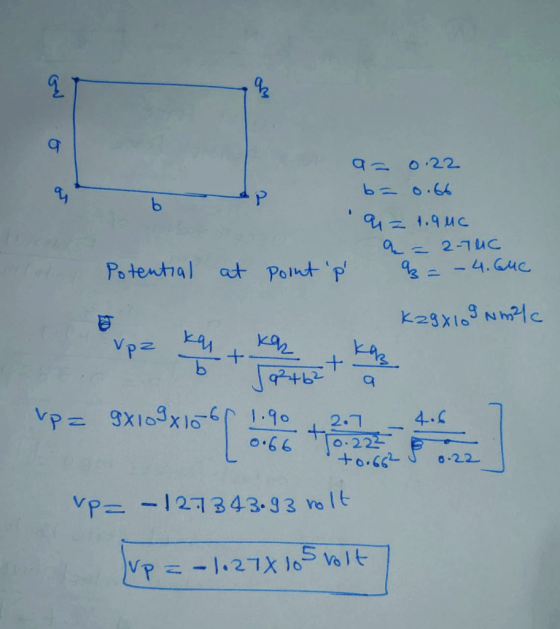

Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 66.0 cm. Find the electric potential at the empty corner. Let q11 = +1.90 µC, q22 = +2.70 µC, q33 = −4.60 µC.
Homework Answers
Add Answer to:
Three point-like charges are placed at the corners of a
rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 30.0 cm and b = 66.0 cm. Find
the magnitude of the electric force exerted on the charge q11. Let
q11 = −3.00 µC, q22 = −3.60 µC, q33 = −4.30 µC.
N
1. Three point-like charges are placed at the corners of a rectangle as shown in the...
1. Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC.
2. Two point-like charges are placed at the corners of a square
as shown in the figure, a = 48.0 cm. Find the magnitude of the
electric field at...
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 36.0 cm and b = 62.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +3.20 µC, q22 = +3.10 µC, q33 = +3.80 µC.
42
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 24.0 cm and b = 68.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +2.60 µC, q22 = −2.20 µC, q33 = +5.20 µC.
42
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 18.0 cm and b = 52.0 cm. Find
the magnitude of the electric field at the center of the rectangle.
Let q11 = q33 = +23.0 µC and q22 = −40.0 µC
93 q1
Three point-like charges are placed at the corners of a square as shown in the figure,...
Three point-like charges are placed at the corners of a square as shown in the figure, 44.0 cm on each side. Find the work done by the electric field force when the charge q11 is moved to infinity. Let q11 = −2.70 µC, q22 = +3.20 µC, q33 = −4.50 µC.
Three point-like charges are placed at the corners of a rectangle as shown in the figure,...
Three point-like charges are
placed at the corners of a rectangle as shown in the figure, a =
22.0 cm and b = 68.0 cm. Find the magnitude of the electric field
at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 =
+35.0 µC.
5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...
Three point-like charges are placed at the corners of a square as shown in the figure,...
Three point-like charges are placed at the corners of a square as shown in the figure, 24.0 cm on each side. Find the magnitude of the electric field at the center of the square. Let q11 = q33 = +28.0 µC and q22 = −24.0 µC.
7. Three point-like charges are placed at the corners of a rectangle as shown in the...
7. Three point-like charges are placed at the
corners of a rectangle as shown in the figure, a = 30.0 cm and b =
66.0 cm. Find the minimum amount of work required by an external
force to move the charge q to infinity. Let q = −2.30 µC, q = −3.20
µC, q = +5.10 µC.
in J
8. Four point-like charges are placed as shown
in the figure, three of them are at the corners and one at...
Three point-like charges are placed at the corners of an equilateral triangle as shown in the...
Three point-like charges are placed at the corners of an
equilateral triangle as shown in the figure, a = 32.0 cm. Find the
magnitude of the electric force exerted on the charge q33 . Let q11
= −1.60 µC, q22 = +4.20 µC, and q33 = −3.60 µC
2 1
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 30.0 cm and b = 66.0 cm. Find
the magnitude of the electric force exerted on the charge q11. Let
q11 = −3.00 µC, q22 = −3.60 µC, q33 = −4.30 µC.
N
1. Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 20.0 cm and b = 52.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +1.30 µC, q22 = +4.10 µC, q33 = −3.70 µC.
2. Two point-like charges are placed at the corners of a square
as shown in the figure, a = 48.0 cm. Find the magnitude of the
electric field at...
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 36.0 cm and b = 62.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +3.20 µC, q22 = +3.10 µC, q33 = +3.80 µC.
42
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 24.0 cm and b = 68.0 cm. Find
the magnitude of the electric force exerted on the charge q33. Let
q11 = +2.60 µC, q22 = −2.20 µC, q33 = +5.20 µC.
42
Three point-like charges are placed at the corners of a
rectangle as shown in the figure, a = 18.0 cm and b = 52.0 cm. Find
the magnitude of the electric field at the center of the rectangle.
Let q11 = q33 = +23.0 µC and q22 = −40.0 µC
93 q1
Three point-like charges are
placed at the corners of a rectangle as shown in the figure, a =
22.0 cm and b = 68.0 cm. Find the magnitude of the electric field
at the empty corner. Let q 1 = +24.0 µC, q 2 = ?31.0 µC, q 3 =
+35.0 µC.
5. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 680 cm. Find the...
7. Three point-like charges are placed at the
corners of a rectangle as shown in the figure, a = 30.0 cm and b =
66.0 cm. Find the minimum amount of work required by an external
force to move the charge q to infinity. Let q = −2.30 µC, q = −3.20
µC, q = +5.10 µC.
in J
8. Four point-like charges are placed as shown
in the figure, three of them are at the corners and one at...
Three point-like charges are placed at the corners of an
equilateral triangle as shown in the figure, a = 32.0 cm. Find the
magnitude of the electric force exerted on the charge q33 . Let q11
= −1.60 µC, q22 = +4.20 µC, and q33 = −3.60 µC
2 1
