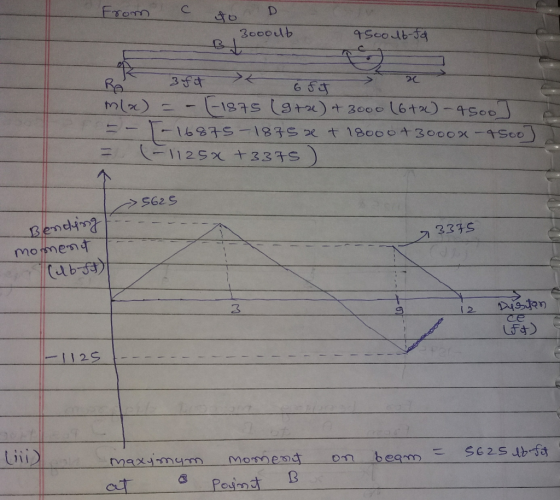

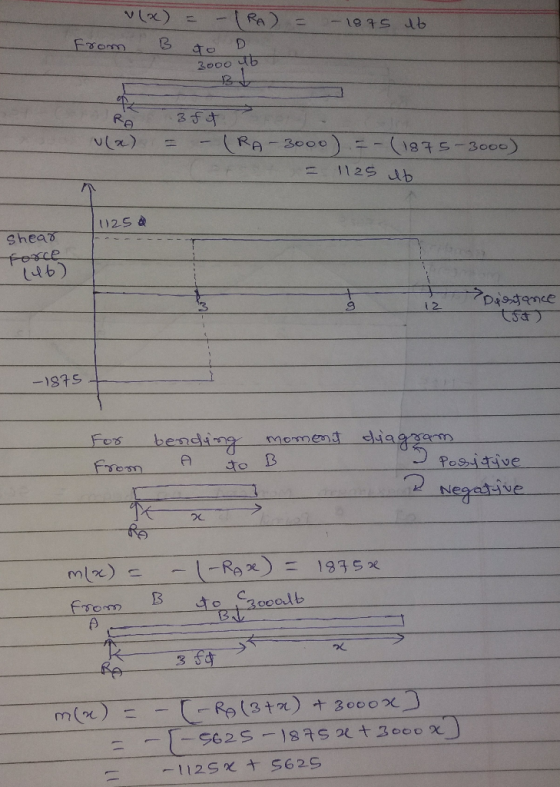

![From D to a 3oooub 95oolb-fa 2 - 3 ft x 6 fit m(x) = -1875 (stre) + 3000 (6 t ) - 4500] -- - 16875-1875 et 18000+3000x - 4500](http://img.homeworklib.com/questions/af2cca90-b457-11eb-974d-5ff269257823.png?x-oss-process=image/resize,w_560)

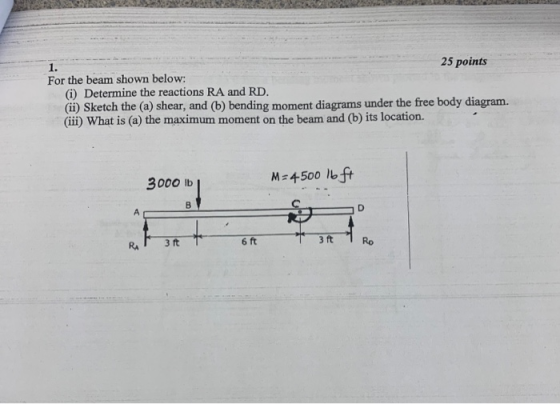

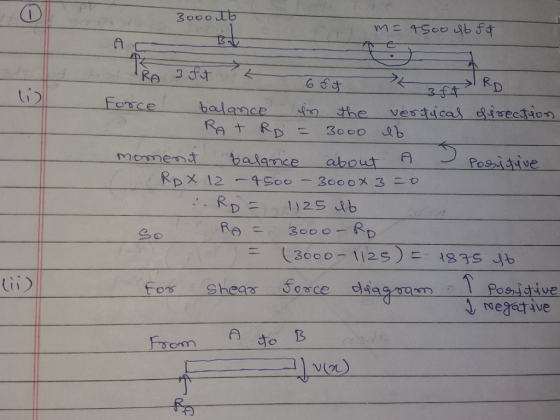

25 points For the beam shown below: (i) Determine the reactions RA and RD. (ii) Sketch...
1. (25 pts.) For the beam shown: a. Calculate the reactions loads at: i. Wall A b. Find the Equations of Shear and Bending Moments for the intervals A-B & B-C c. Find the Shear values 100 lb (V) and Bendin moments (M) at: 800 lb-ft i. Points A ii. Point B iii. Point C iv. Also the location and 5 ft Magnitud of the Maximum Bending Momentin d. Draw the Shear and Bending Moments Diagrams and indicate all values...
2. (25 pts.) For the beam shown: a. Calculate the reactions loads at: i. Pin support A ii. Roler B b. Find the Equations of Shear and Bending Moments for the intervals A-B & B-C c. Find the Shear values (V) and Bendinf moments (M) at: 50 lb/ft i. Points A ii. Point B iii. Point C iv. Also the location and Magnitud of the Maximum Bending Momentin d. Draw the Shear and Bending -20 ft — Moments Diagrams and...
beam problem
QUESTION 6: Draw the free body diagram of the beam shown below and determine the reactions and formulate the shear-force and bending moment equations for the beam. Sketch the shear and moment diagrams: Type your answers and intermediate calculations on the screen on the blackboard 400 N 100 N/m A 4 m 4 m
a. Draw a complete free-body diagram for the beam shown in Fig.
1. Must show and label x-y coordinate system, support reactions,
loads, and dimensions
b. Derive formulas for all support reactions using conditions of
equilibrium. Must show all work.
c. Using the student variables shown below, calculate beam
support reactions and draw shear and bending moment diagrams. To
receive full credit, support reactions and loads must be shown on a
free-body diagram. Each shear and bending moment diagram must...
For the beam and loading shown, please (a) determine the
reactions at A and C, (b) draw the shear and bending moment
diagrams, and (c) find the maximum normal stress on the
beam.
2000 lb 200 lb/ft 4 ft 4 ft 6 ft
Q3
(25 pts) 3. For the cantilever beam shown below and to the left, Determine the reactions at the wall at C. Draw the shear (V) and moment (M) diagram for the beam and label the appropriate values. For the given cross section, determine the magnitude of the maximum COMPRESSIVE bending stress and state where this occurs along the length of the beam and along the height of the beam (top or bottom). Sketch the NORMAL stress distribution (profile) for...
a. Draw a free-body diagram for the beam shown above and derive
expressions for the support reactions at A and B
b. Draw internal force (shear and bending moment) diagrams.
c. If a = 10 ft and M0 = 200 ft-lb, use the dimensions of the
beam cross-section, provided on the previous page, to compute the
maximum flexural and shear stresses on the beam cross-section.
d. If the allowable bending stress is 925 psi and the allowable
shear stress is...
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending moment
as a function of their positions along the beam. Finally, use these
expressions to construct shear and bending moment diagrams
Draw a free-body diagram of the beam on paper. Use your
free-body diagram to determine the reactions at...
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams. The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is fixed at
C. Determine the reactions at the support located at C. Then write
expressions for shear and bending moment as a function of their
positions...
Part 1 For the simply supported beam subjected to the loading shown, derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) Let a=1.750 m, b=5.75 m, PA = 75kN, and Pc = 80kN. Construct the shear-force and bending-moment diagrams on paper and use the results to answer the questions in the subsequent parts of this GO exercise. Calculate the reaction forces B, and D, acting...
