Add Answer to:

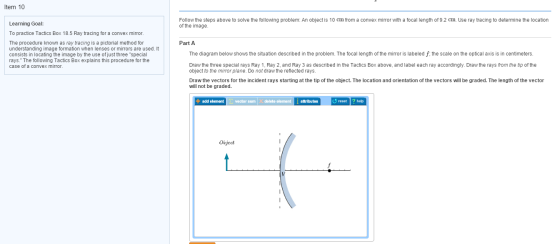

To practice Tactics Box 18.5 Ray tracing for a convex mirror. The procedure known as ray...

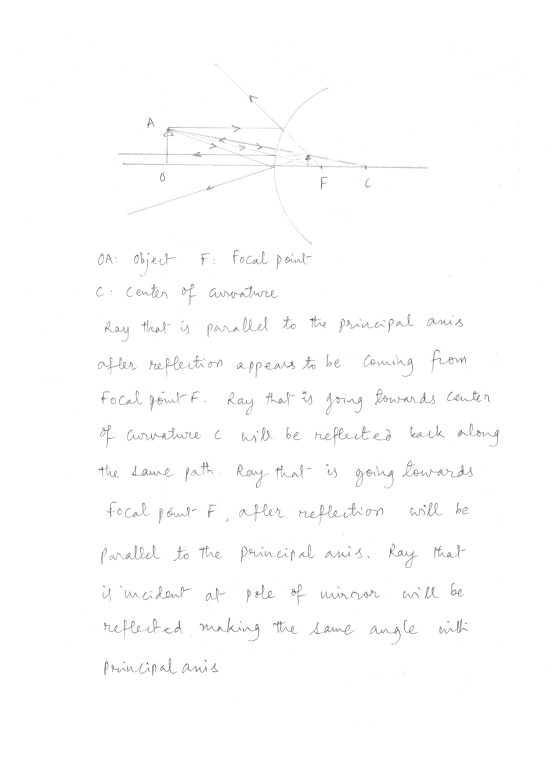

Follow the steps above to solve the following problem: An object is 9.0 cm from a...
Follow the steps above to solve the following problem: An object is 9.0 cm from a diverging lens with a focal length of 5.2 cm. Use ray tracing to determine the location of the image. Part A The diagram below shows the situation described in the problem. The focal length of the lens is labeled f; the scale on the optical axis is in centimeters.Draw the three special rays, Ray 1, Ray 2, and Ray 3, as described in the...
An object O is placed at the location shown in front of a convex spherical mirror....
An object O is placed at the location shown in front of
a convex spherical mirror. Use ray tracing to determine the
location and size of the image in the mirror. As you work, keep in
mind the following properties of principal rays:
A ray parallel to the axis, after reflection, passes through the
focal point F of a concave mirror or appears to come from
the (virtual) focal point of a convex mirror.
A ray through (or proceeding toward)...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. M...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. Measure, f.p. q. h and h and label them below (1 "large box" 1.0 cm). Indicate whether the image is: - real or virtual upright or inverted - enlarged or reduced - in front or behind the mirrorlens No pens allowed. Draw this in...
A convex mirror with a focal length of -3m is sitting 5m from a bookshelf. a. Draw a ray tracing diagram to find where...
A convex mirror with a focal length of -3m is sitting 5m from a bookshelf. a. Draw a ray tracing diagram to find where the image is. b. Use the mirror equation to check your result and to find where the image will be if the bookshelf is 2m away. c. Repeat a and b with a converging lens with a focal length of 4m.
5. An object 3 cm high is placed 20 cm from a convex mirror having a...
5. An object 3 cm high is placed 20 cm from a convex mirror having a focal length of 8 cm. Find the position of the image and its magnification. Draw a schematic ray diagram. 6. What are two major problems in using spherical mirrors and lenses for image formation?
2)A spherical mirror has a radius of curvature of 22 cm. if the mirror is convex,...
2)A spherical mirror has a radius of curvature of 22 cm. if the mirror is convex, what its focal length is? 3)If light of wavelength 600nm in air enters a medium with index of refraction 1.5, what is the wavelength in this new medium? 4) A concave mirror with a focal length of 40 cm has 2 cm tall object placed 35 cm in front of it, the image formed is? A) real and inverted B) real and upright C)...
An object is 16 cm in front of a convex mirror. The mirror creates an image that is 55 % as tall as the object. Use ray tracing to find the distance of the focal point from the mirror. Express your an...
An object is 16 cm in front of a convex mirror. The mirror creates an image that is 55 % as tall as the object. Use ray tracing to find the distance of the focal point from the mirror. Express your answer to two significant figures and include the appropriate units. f =
Friday Homework Problem 13.12 A convex mirror has a focal length of magnitude |f| = 20cm....
Friday
Homework Problem 13.12 A convex mirror has a focal length of
magnitude |f| = 20cm. An object is placed 13cm from the mirror.
(a)[10 pt(s) ]Draw the ray diagram with all possible rays and
locate the image. Label all relevant points and mark important
locations on the optical axis. The large block in the figure below
are 5cm. (b)[2 pt(s) ]From your ray diagram, what is the
magnification and image location? Make sure to report both with the
correct...
A convex mirror has a focal length of 70 cm. An object is placed 40 cm...
A convex mirror has a focal length of 70 cm. An object is placed 40 cm from the mirror. a. Draw the ray tracing diagram to locate the image. Is the image real or virtual? b. Calculate the image location and the magnification for the image. Compare your results with part a.
Physics 2BG Name: Due Date: Ray Tracing Activity For each situation below, draw the three primary...
Physics 2BG Name: Due Date: Ray Tracing Activity For each situation below, draw the three primary rays and the image. State if the image is real or virtual, upright or inverted, and if it is larger or smaller than the object. I. Convex Lens a. b. C. 2 Concave Lens b. c. 3. Concave Mirror b. C.
Follow the steps above to solve the following problem: An object is 9.0 cm from a diverging lens with a focal length of 5.2 cm. Use ray tracing to determine the location of the image. Part A The diagram below shows the situation described in the problem. The focal length of the lens is labeled f; the scale on the optical axis is in centimeters.Draw the three special rays, Ray 1, Ray 2, and Ray 3, as described in the...
An object O is placed at the location shown in front of
a convex spherical mirror. Use ray tracing to determine the
location and size of the image in the mirror. As you work, keep in
mind the following properties of principal rays:
A ray parallel to the axis, after reflection, passes through the
focal point F of a concave mirror or appears to come from
the (virtual) focal point of a convex mirror.
A ray through (or proceeding toward)...
PHYS 203 Name: Ray Tracing Name: Work in pairs. Turn in one copy per pair Part A: Ray Tracing (18 pts) For each of the following situations, draw the three principle rays and find the image. Measure, f.p. q. h and h and label them below (1 "large box" 1.0 cm). Indicate whether the image is: - real or virtual upright or inverted - enlarged or reduced - in front or behind the mirrorlens No pens allowed. Draw this in...
5. An object 3 cm high is placed 20 cm from a convex mirror having a focal length of 8 cm. Find the position of the image and its magnification. Draw a schematic ray diagram. 6. What are two major problems in using spherical mirrors and lenses for image formation?
Friday
Homework Problem 13.12 A convex mirror has a focal length of
magnitude |f| = 20cm. An object is placed 13cm from the mirror.
(a)[10 pt(s) ]Draw the ray diagram with all possible rays and
locate the image. Label all relevant points and mark important
locations on the optical axis. The large block in the figure below
are 5cm. (b)[2 pt(s) ]From your ray diagram, what is the
magnification and image location? Make sure to report both with the
correct...
Physics 2BG Name: Due Date: Ray Tracing Activity For each situation below, draw the three primary rays and the image. State if the image is real or virtual, upright or inverted, and if it is larger or smaller than the object. I. Convex Lens a. b. C. 2 Concave Lens b. c. 3. Concave Mirror b. C.
