1 In the system C(s) G(s) let Glo) ts Find the range of K for closed-loop...

Question

Question

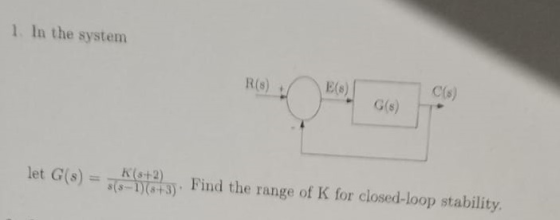

1 In the system C(s) G(s) let Glo) ts Find the range of K for closed-loop stability. let G(s)

engineering Electrical-Engineering

Answer 1

Answer #1

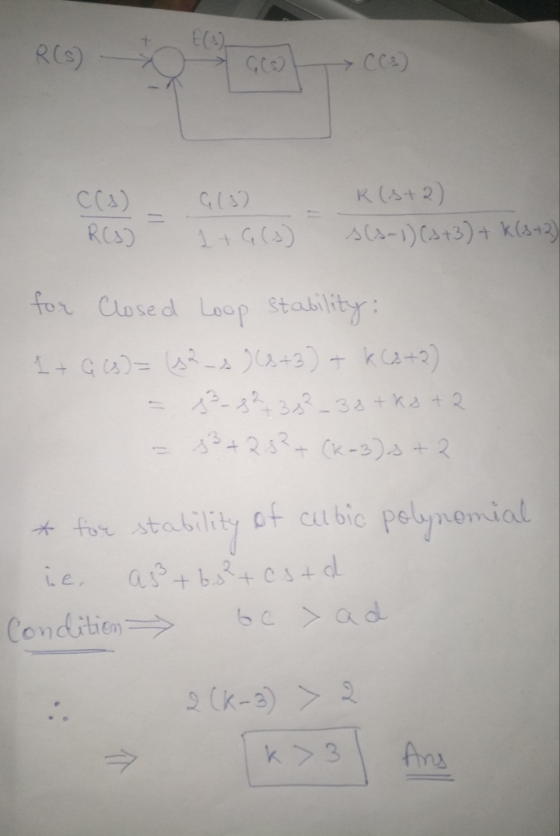

R(s) K (s+2) or Clused Lop Stalility for stability o cutbic pebmomial a d Conditien

Answer 2

Similar Homework Help Questions

5. (15 points) Find the range of the gain K for stability of a closed-loop system...

5. (15 points) Find the range of the gain K for stability of a closed-loop system with the following open- loop transfer function K G(s)H(s) s(s+1)(2s +1)
. S3 G(s) H (s) = K s2 + s-4 For the closed loop system use a Nyquist plot to, a. Classify the st...

. S3 G(s) H (s) = K s2 + s-4 For the closed loop system use a Nyquist plot to, a. Classify the stability of the system. b. Find the range of K for a stable system. (analytic by hand) c. Find the value of K for a marginally stable system. (analytic by hand) . S3 G(s) H (s) = K s2 + s-4 For the closed loop system use a Nyquist plot to, a. Classify the stability of the...
For the system of Figure P1: 1. a) Find the range of K for stability. b)...

For the system of Figure P1: 1. a) Find the range of K for stability. b) Find the value of K for marginal stability. c) Find the actual location of the closed-loop poles when the system is marginally stable. Cis) s(s+i)(s+2)6+5)

3. Given the closed loop transfer fanction bellow find a. The range of K for stability...

3. Given the closed loop transfer fanction bellow find a. The range of K for stability b. The val ue of K for marginally stable system and the frequency of oscillation roots of auxiliary even polynomial to find system poles 5K (s 4) 5 s3 + 16 s2 + (12 +5 K)s + 20 K
i. Given the closed loop transfèr function bellow find a The range of K for stability...

i. Given the closed loop transfèr function bellow find a The range of K for stability b. The value of K for marginally stable system and the frequency of oscillation. Hint: Use the roots of auxiliary even polynomial to find system poles] 5K(s + 4) 5 s3 + 16 s (12+5 K)s 20K 7(s)
F(G) = list 62 Transfer function: F(s) = K, s + K2 with closed loop 54...

F(G) = list 62 Transfer function: F(s) = K, s + K2 with closed loop 54 + 5g3+ 45²-10s control system a) H(s) = + F(s) 5(5-1)(8+3+;)(5+3) Find the range of gains in the K, , Kz plane for which closed loop system is stable. And sketch the result. b With K,K, K₂=0.1K, sketch the root locus for system of part (a). Show topen loop poles and zeros, asymptotes of loci fork loci segments on real axis and imaginary axis...

Question# 1 (25 points) For a unity feedback system with open loop transfer function K(s+10)(s+20) (s+30)(s2-20s+2...

Question# 1 (25 points) For a unity feedback system with open loop transfer function K(s+10)(s+20) (s+30)(s2-20s+200) G(s) = Do the following using Matlab: a) Sketch the root locus. b) Find the range of gain, K that makes the system stable c) Find the value of K that yields a damping ratio of 0.707 for the system's closed-loop dominant poles. d) Obtain Ts, Tp, %OS for the closed loop system in part c). e) Find the value of K that yields...
Q5) Consider the following closed-loop control system Error к G(s) Let G(s) = -, a >...

Q5) Consider the following closed-loop control system Error к G(s) Let G(s) = -, a > 0. Find the range for K, in terms of a, such that: • 5/95 rise time does not exceed 2 seconds • The 3% settling time does not exceed 5 seconds
Consider the closed-loop system shown in following. Determine the range of K for stability. Assume that...

Consider the closed-loop system shown in following. Determine the range of K for stability. Assume that K>0. (Hint: using Routh’s Method) R(s) C(s) S-2 K (s + 1)(52 +65 + 25)

Consider the following control system: R + Let G(s) s +23-3 and H(s) K where K is some positive c...

Consider the following control system: R + Let G(s) s +23-3 and H(s) K where K is some positive constant. The transfer function H(s) can be considered a proportional feedback controller. (a) Examine the behavior of the system for different values of K. Try the values K 2, 4, 8. In each case, plot the pole-zero map of the closed-loop system and examine the step response. Comment on the stability of the system. Find the value of K for which...
