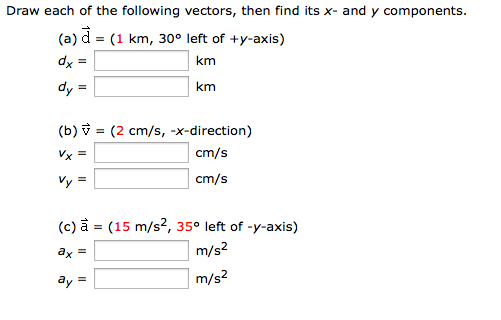

Help Greatly Apprecitated. Draw each of the following vectors, then find its x- and y components,...

Question

Question

Help Greatly Apprecitated.

science physics

Answer 1

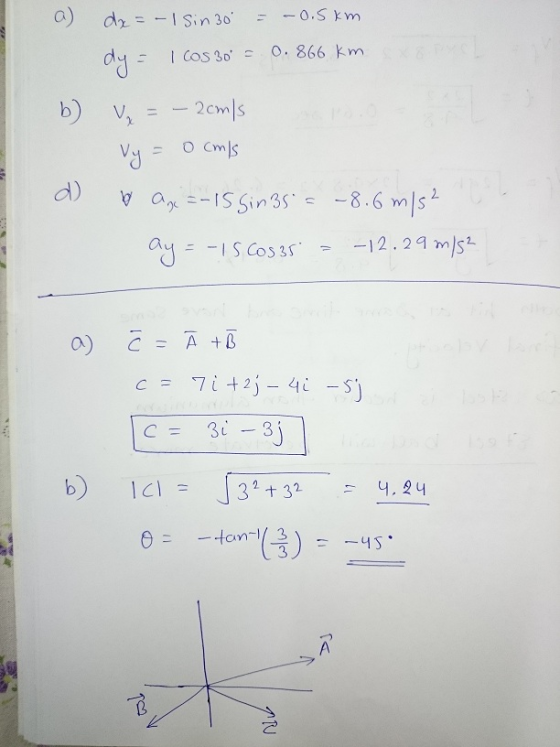

Answer #1

Answer 2

Similar Homework Help Questions

In this problem, the x and y components of four vectore are given. You will find...

In this problem, the x and y components of four vectore are given. You will find the magnitude and the direction of the vectors. Report the direction with an angle (in degrees) COUNTERCLOCKWISE from +x axis. Keep 2 decimal places in all answers. -The x and y components of vector A are given as: Ax = 6.0 m, Ay = 8.0 m Its magnitude is: -The direction of vector A (in degrees) is : -The x and y components of...
Each of the following vectors is given in terms of its x- and y-components. Part A...

Each of the following vectors is given in terms of its x- and y-components. Part A vx = 20 m/s , vy = 40 m/s . Find the vector's magnitude. Express your answer in meters per second. Part B vx = 20 m/s , vy = 40 m/s . Find the vector's direction. Express your answer in degrees. θ θ = nothing ∘ above + x-axis SubmitRequest Answer Part C ax = 2.0 m/s2 , ay = -6.5 m/s2...
Each of the following vectors is given in terms of its x- and y-components. Part A:...

Each of the following vectors is given in terms of its x- and y-components. Part A: vx = 20 m/s , vy = 31 m/s . Find the vector's magnitude. Express your answer with the appropriate units. Part B: vx = 20 m/s , vy = 31 m/s . Find the vector's direction. Express your answer in degrees. Part C: ax = 26 m/s2 , ay = 15 m/s2 . Find the vector's magnitude. Express your answer with the appropriate...

Three vectors A, B, and C have the following components: Ax = 5.20, Ay = 6.37;...

Three vectors A, B, and C have the following components: Ax = 5.20, Ay = 6.37; Bx = 3.92, By = -3.00; Cx = -2.00, Cy = 5.00. (a) Find the x and y components of A + B + C. x-component units y-component units (b) Find the magnitude and direction of A + B + C. magnitude units direction counterclockwise from the positive x-axis
Sarah choose for the class four vectors A, B, C, and D with components: Ax=23.5, Ay=...

Sarah choose for the class four vectors A, B, C, and D with components: Ax=23.5, Ay= -9.7; Bx=-17.3, By=2.3; Cx=51.9, Cy=-32.5; Dx=-10.1, Dy=-12.2. Determine magnitude and direction (as measured from the positive x-axis) of the vector A+B-C-D *the answer my professor gave was 51.6, -46(angle)
Part A: Find the x- and y-components of the vector d⃗ = (9.0 km , 21 ∘...

Part A: Find the x- and y-components of the vector d⃗ = (9.0 km , 21 ∘ left of +y-axis). Express your answer in kilometers. Enter the x and y components of the vector separated by a comma. Part B: Find the x- and y-components of the vector v⃗ = (3.0 cm/s , −x-direction). Express your answer in centimeters per second. Enter the x and y components of the vector separated by a comma. Part C: Find the x- and y-components of...

Adding and Subtracting Vectors using Components Add or subtract the vectors. Express the result in both...

Adding and Subtracting Vectors using Components Add or subtract the vectors. Express the result in both component form. Also find the Magnitude and direction of the resultant vector Find: 3A+4C and 2A- İ 16 F-27-7. what is the magnitude and direction (angle from +x) of this vector? Draw the vector on a properly labelled coordinate system. 17 A ramp makes a 32° angle with the horizontal. Orient your axis such that the x-direction is along the ramp and the y...
Vector A⃗ has components Ax= 1.80 cm , Ay= 2.25 cm ; vector B⃗ has components...

Vector A⃗ has components Ax= 1.80 cm , Ay= 2.25 cm ; vector B⃗ has components Bx= 4.10 cm , By= -3.50 cm . Find the direction of A⃗ +B⃗ . (Let the direction be the angle that the vector makes with the +x-axis, measured counterclockwise from that axis.) please show calculations
Activity 1-5: Breaking up Vectors into components Every vector can be thought of as two vectors...

Activity 1-5: Breaking up Vectors into components Every vector can be thought of as two vectors that add together to form a right triangle. One ve point in the horizontal direction while the other will point in the vertical. tor will Ay Dy в, While you can determine the components of vectors Ä, B, C, and D visually above since there are grid lines, you can also use trigonometry to determine the values of each component. For each vector shown...

Vector A⃗ has components Ax = 1.30 cm, Ay = 2.15 cm; vector B⃗ has components...

Vector A⃗ has components Ax = 1.30 cm, Ay = 2.15 cm; vector B⃗ has components Bx = 4.00 cm, By = -3.65 cm. a) Find the components of the vector sum A⃗ +B⃗ . b) Find the magnitude of the vector sum A⃗ +B⃗ . c) Find the counterclockwise angle the vector sum A⃗ +B⃗ makes with the +x axis. d) Find the components of the vector difference B⃗ −A⃗ . e) Find the magnitude of the vector difference...
