10. Determine the magnetic field midway between two long straight wires 2.0 cm apart if the current in each wire is 25 A in opposite directions.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

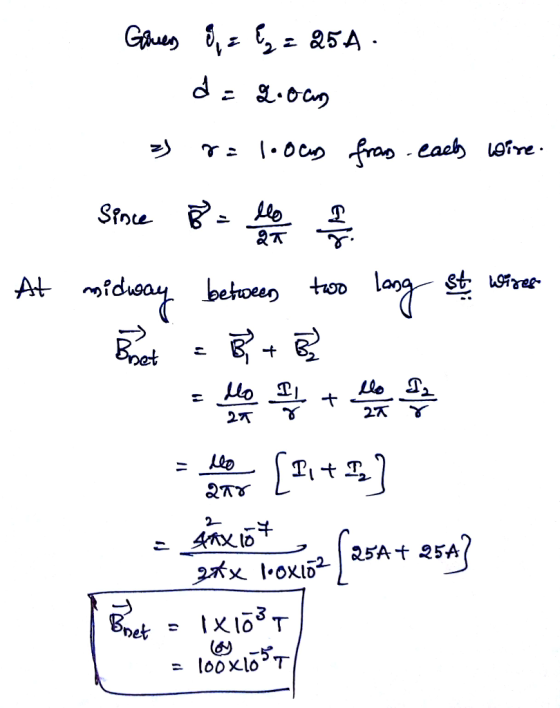

Answer #1

dニ 요.ba grme f)te- behou, too l 27 Y

0 0
Add a comment
Know the answer?
Add Answer to:
10. Determine the magnetic field midway between two long straight wires 2.0 cm apart if the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Part A Determine the magnetic field midway between two long straight wires 2.0 cm apart in...

    Part A Determine the magnetic field midway between two long straight wires 2.0 cm apart in terms of the current I in one when the other carries 25 A. Assume these currents are in the same direction. O Bnet = (2.0 x 10-5 T/A)(I – 25 A) Bret = (1.0 x 10-5 T/A)(1 – 25 A) Bnet = (2.0 x 10-5 T/A)(I + 25 A) O Bnet = (1.0 x 10-5 T/A)(I +25 A) Submit Request Answer Part B Determine...

  • Part A Determine the magnitude and direction of the force between two parallel wires 30 m...

    Part A Determine the magnitude and direction of the force between two parallel wires 30 m long and 3.0 cm   apart, each carrying 30 A in the same direction. The force on each wire will be attractive. The force on each wire will be repulsive. The wires will not interact. ----------------------- A long horizontal wire carries 23.0 A of current due north. The Earth's field 20.0 cm due west of the wire points north but downward, 45 ∘ below the...

  • Determine the magnitude of the magnetic field midway between two long straight wires separated by a...

    Determine the magnitude of the magnetic field midway between two long straight wires separated by a distance d if one carries current I1 when the other carries I2. Assume I1>I2. a.) Assume these currents are in the same direction. Express your answer in terms of the variables d, I1, I2, and appropriate constants. b.) Assume these currents are in opposite directions. Express your answer in terms of the variables d, I1, I2, and appropriate constants.

  • Two long, straight wires are parallel and 10 cm apart. One carries a current of 2.0...

    Two long, straight wires are parallel and 10 cm apart. One carries a current of 2.0 A, the other a current of 5.0 A. (a) If the two currents flow in opposite directions, what is the magnitude and direction of the force per unit length of one wire on the other? (b) What is the magnitude and direction of the force per unit length if the currents flow in the same direction?

  • Two long, parallel wires are separated by 2.0 m . Each wire has a 25-A current,...

    Two long, parallel wires are separated by 2.0 m . Each wire has a 25-A current, but the currents are in opposite directions . a) Determine the magnitude of the net magnetic field midway between the wires. b) Determine the magnitude of the net magnetic field at a point 1 m to the side of one wire and 3.0 m from the other wire. The point is in the same plane as the wires.

  • The magnetic field 37.0 cm away from a long, straight wire carrying current 9.00 A is...

    The magnetic field 37.0 cm away from a long, straight wire carrying current 9.00 A is 4860 µT. (a) At what distance is it 486 µT?   cm (b) At one instant, the two conductors in a long household extension cord carry equal 9.00-A currents in opposite directions. The two wires are 3.00 mm apart. Find the magnetic field 37.0 cm away from the middle of the straight cord, in the plane of the two wires.    How far is the...

  • Two long, straight parallel wires are 10.0 cm apart and carry 3.20 A currents in the...

    Two long, straight parallel wires are 10.0 cm apart and carry 3.20 A currents in the same direction (see the figure). Find the direction of the magnetic field at point P1, midway between the wires. Find the magnitude of the magnetic field at point P1, midway between the wires. Find the direction of the magnetic field at point P2, 25.0 cm to the right of P1. Find the magnitude of the magnetic field at point P2, 25.0 cm to the...

  • The magnetic field 43.0 cm away from a long, straight wire carrying current 9.00 A is...

    The magnetic field 43.0 cm away from a long, straight wire carrying current 9.00 A is 4190 UT. (a) At what distance is it 419 HT? cm (b) At one instant, the two conductors in a long household extension cord carry equal 9.00-A currents in opposite directions. The two wires are 3.00 mm apart. Find the magnetic field 43.0 cm away from the middle of the straight cord, in the plane of the two wires. nt (c) At what distance...

  • The magnetic field 37.0 cm away from a long, straight wire carrying current 7.00 A is...

    The magnetic field 37.0 cm away from a long, straight wire carrying current 7.00 A is 3780 nT. (a) At what distance is it 378 nt? cm (b) At one instant, the two conductors in a long household extension cord carry equal 7.00-A currents in opposite directions. The two wires are 3.00 mm apart. Find the magnetic field 37.0 cm away from the middle of the straight cord, in the plane of the two wires. ni (c) At what distance...

  • The magnetic field 39.0 cm away from a long, straight wire carrying current 4.00 A is...

    The magnetic field 39.0 cm away from a long, straight wire carrying current 4.00 A is 2050 nT. (a) At what distance is it 205 nT? cm (b) At one instant, the two conductors in a long household extension cord carry equal 4.00-A currents in opposite directions. The two wires are 3.00 mm apart. Find the magnetic field 39.0 cm away from the middle of the straight cord, in the plane of the two wires. nT (c) At what distance...
