PROBLEM #2.15 Calculate the discharge through a pipe of diameter 200 mm when the difference of...
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200...

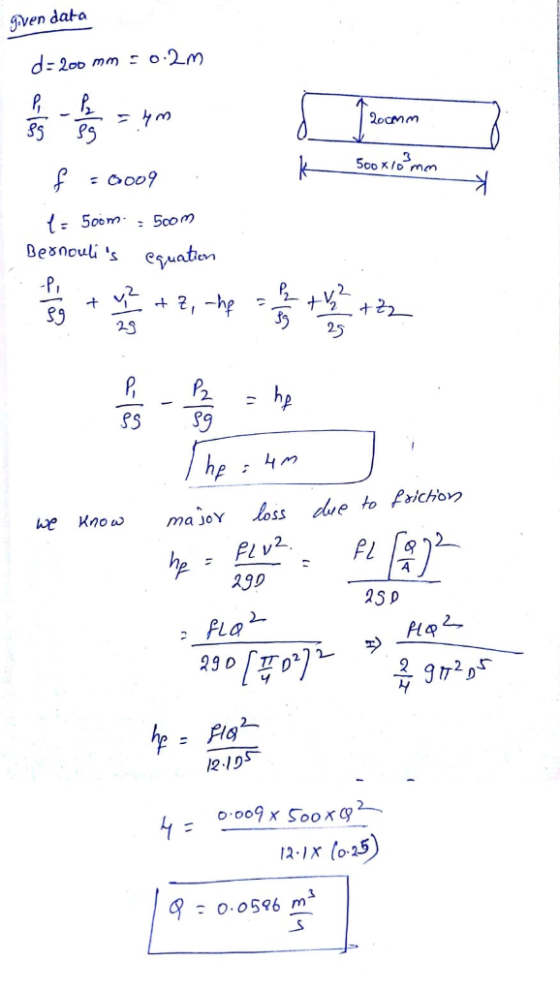

CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
Q2 A 200 mm diameter cast iron pipe with wall thickness of 15 mm is carrying water when the outle...
Q2 A 200 mm diameter cast iron pipe with wall thickness of 15 mm is carrying water when the outlet is suddenly closed. Calculate the maximmum discharge if the pressure rise is not to exceed 180 kN/m2 (a) assuming the pipe is rigid; (b) allowing for hoop stress but not longitudinal stress in the pipe wall; (c) assuming the pipe to have expansion joints throughout its length. (K-2.1 × 109 N/m 2, E 100x 109 N/m2)
Q2 A 200 mm...
(a) A horizontal pipe, of constant internal diameter 500 mm, has a 90° bend (Figure Q3a)....
(a) A horizontal pipe, of constant internal diameter 500 mm, has a 90° bend (Figure Q3a). The discharge of water through the pipe is 0.15 ms and the entry pressure head is 28 m. Determine the magnitude and direction of the force exerted by the fluid on the bend. [9 marks] Figure Q3a
2.2 A 250 mm diameter pipe is 1500 m long. When the discharge is 0.095 m3/s...
2.2 A 250 mm diameter pipe is 1500 m long. When the discharge is 0.095 m3/s in this pipe, the pressure drop between the ends of the pipe is measured as 98.06 kPa. The elevation at the end of the pipe is 10 m below its beginning. What type of flow is this? What is the equivalent sand-grain roughness of the pipe wall? What is the Hazen-Williams roughness coefficient? How much energy is dissipated by fluid friction during each hour...
35. (a) A reservoir A discharges water to a lower reservoir B through a 3600 m long pipe of diameter 600 mm. The flow i...
35. (a) A reservoir A discharges water to a lower reservoir B through a 3600 m long pipe of diameter 600 mm. The flow is due to gravity and the difference in surface water levels in A and B is 13 m. Reservoir A is now required to supply water also to a third reservoir C, the water surface of which is 15 m below that of A. The discharge to C is to be made from a 1200 m...
Water is flowing through a 600mm diameter horizontal pipe n = 0.013 and 1000m in length....
Water is flowing through a 600mm diameter horizontal pipe n = 0.013 and 1000m in length. A gage pressure downstream has a reading of 16 kPa and another gage in between the ends of the pipe reads 20 kPa while on the upstream side reads 30 kPa. a. Determine the total head loss of the pipe b. Determine the velocity of flow in m/s. c. Determine the rate of discharge in liter per second.
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
2. For the following pipe system find the discharge in each pipe if the difference in...
2. For the following pipe system find the discharge in each pipe if the difference in water surface elevation Az between the two tanks A and B is 40 m. Neglect minor losses. Pi friction 0.012 0.025 0.015 0.02 Length (m) 200 400 150 300 Diameter (cm 30 15 25 20 4 4
Open with Google Docs ▼ Question 3 Calculate the flow rate of water in a pipe of 30 cm diameter placed in an inclined position where a venturi meter is inserted, having a throat diameter of 15...
Open with Google Docs ▼ Question 3 Calculate the flow rate of water in a pipe of 30 cm diameter placed in an inclined position where a venturi meter is inserted, having a throat diameter of 15 cm. The difference of pressure between the main and throat is measured by a liquid of s.g. 0.6 in an inverted U-tube which gives a reading of 30 cm. The loss of head between the main and throat is 0.2 times the kinetic...
In a 100 mm diameter horizontal pipe, a venturimeter of 0.5 contraction ratio has been fitted....
In a 100 mm diameter horizontal pipe, a venturimeter of 0.5 contraction ratio has been fitted. The head of water on the meter when there is no flow is 3 m (gauge). Find the rate of flow for which the throat pressure will be 2m of water absolute. Discharge coefficient for the meter is 0.97
CENTRE INDEX NUMBER SECTION B 30 marks] Calculate the discharge through a pipe of diameter 200 mm when the difference of pressure head between the ends of the pipe 500 m apart is 4 m of water. Take the value off= 0.009 in the formula hl= a) 19.5e/s b)2.0es e)03 m's d) 29.3 e/s 2. A scale 1:50 scale model of ship is towed through sea water at a speed of 1 ms. A force of 2 N is required...
Q2 A 200 mm diameter cast iron pipe with wall thickness of 15 mm is carrying water when the outlet is suddenly closed. Calculate the maximmum discharge if the pressure rise is not to exceed 180 kN/m2 (a) assuming the pipe is rigid; (b) allowing for hoop stress but not longitudinal stress in the pipe wall; (c) assuming the pipe to have expansion joints throughout its length. (K-2.1 × 109 N/m 2, E 100x 109 N/m2)
Q2 A 200 mm...
(a) A horizontal pipe, of constant internal diameter 500 mm, has a 90° bend (Figure Q3a). The discharge of water through the pipe is 0.15 ms and the entry pressure head is 28 m. Determine the magnitude and direction of the force exerted by the fluid on the bend. [9 marks] Figure Q3a
35. (a) A reservoir A discharges water to a lower reservoir B through a 3600 m long pipe of diameter 600 mm. The flow is due to gravity and the difference in surface water levels in A and B is 13 m. Reservoir A is now required to supply water also to a third reservoir C, the water surface of which is 15 m below that of A. The discharge to C is to be made from a 1200 m...
(b) Water flows under gravity between two reservoirs through a pipe of length 5000m. The diameter of the pipe is 0.2 m and the roughness size is 0.04 mm. The water levels in the two reservoirs are maintained with a difference of 50 m. Determine the discharge through the pipe. Neglect all minor losses. Use the attached Moody diagram for estimation of friction factor. (10 marks) (c) In (b), now include entry loss at the upper reservoir with loss coefficient...
2. For the following pipe system find the discharge in each pipe if the difference in water surface elevation Az between the two tanks A and B is 40 m. Neglect minor losses. Pi friction 0.012 0.025 0.015 0.02 Length (m) 200 400 150 300 Diameter (cm 30 15 25 20 4 4
Open with Google Docs ▼ Question 3 Calculate the flow rate of water in a pipe of 30 cm diameter placed in an inclined position where a venturi meter is inserted, having a throat diameter of 15 cm. The difference of pressure between the main and throat is measured by a liquid of s.g. 0.6 in an inverted U-tube which gives a reading of 30 cm. The loss of head between the main and throat is 0.2 times the kinetic...
In a 100 mm diameter horizontal pipe, a venturimeter of 0.5 contraction ratio has been fitted. The head of water on the meter when there is no flow is 3 m (gauge). Find the rate of flow for which the throat pressure will be 2m of water absolute. Discharge coefficient for the meter is 0.97
