Question

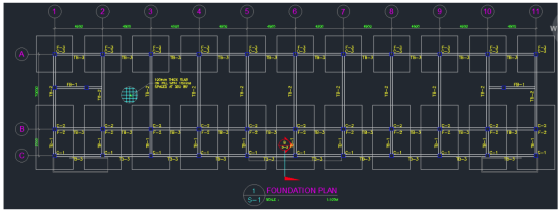

Compute the Concrete Volume of Footing Tie Beam. Dimensions of tie beam b=250mm x 400mm

1 2 3 4 5 6 7 8 10 11) 4500 4500 4501 ASCO 4500 4500 4500 4500 4500 W 20 16.64 UG t. Cuci La 2013 U А TB-3 TB-3 TB TB- TB-3 T8-3 T8-30 TB-3 TB-3 TB-3 FB-1 - 100min THCK SLAB ON FILL WITH 10mm SPACED AT 350 W FB-1 N FE T8-2_ T8-2 T8-2 T8-2 T8-2 2-81 T8-2 T8-2 B-2 HP A = C- C-2 В C-2 F-2 C-2 F-2 HP IC-?_ F-Z It C-2 F-2 E HA E Ic-2 F-2 TB-3 F-2 18- F-2 F-2 ТВ IB-3 F-2 B-3 IR F-2 IR TB- F-2 B-1 || EL"! B-1 B-1 1-A B B-1 16-1 B-1 P e 10-1 C-1 le-1 IC-1 С B-3 TP-3 B-3 TB-3 183 B-3 TB-3 19-3 TB-3 1 FOUNDATION PLAN S-1 SCALE 1:100M

Answer 1

the complete length of the footing tie beam is 936250mm

Length of all the beams in the x-direction =

calculating end to end distance of all beams in x direction=

[(30*4500)+(3*250)]+[4500+250+4500+250]=145250

Length of all the beams in the Y-direction =

Total length in y - length already included in x direction calculations

=11*[(70000+2500+250)]- (37*250)]= 791000

the complete length of the footing tie beam is 936250mm

the volume of concrete in footing tie beams is 936250*250*400 = 93625000000 mm^3
