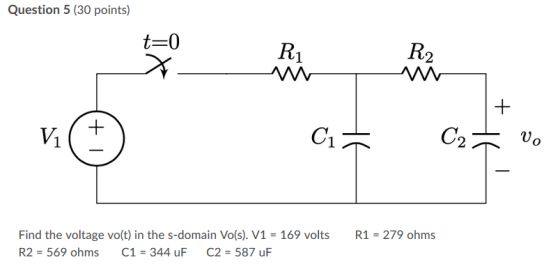

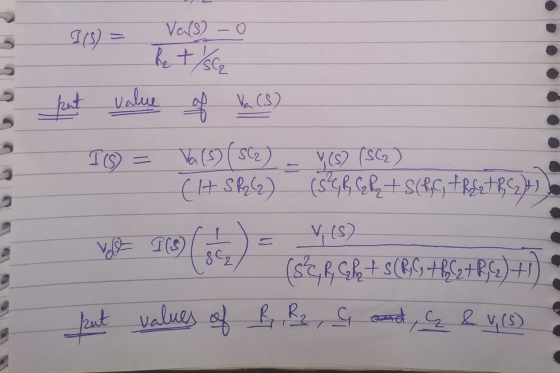

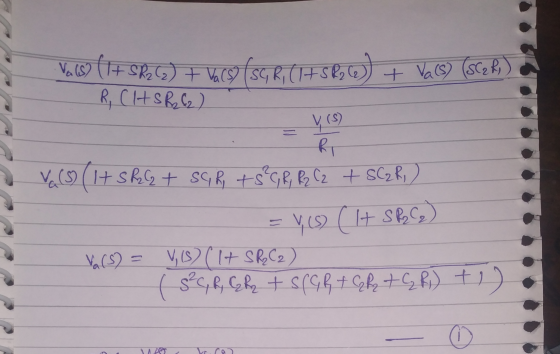

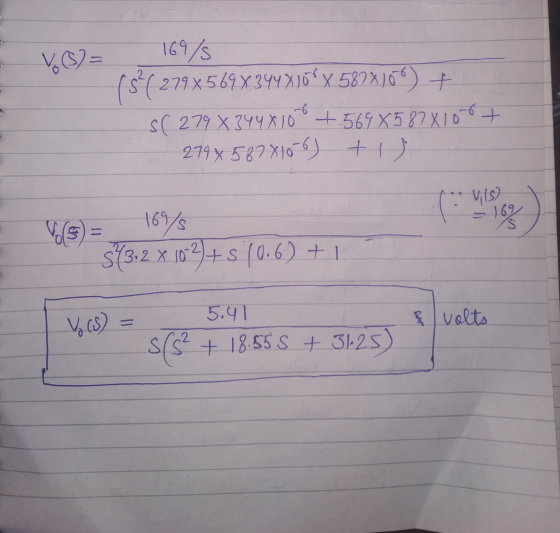

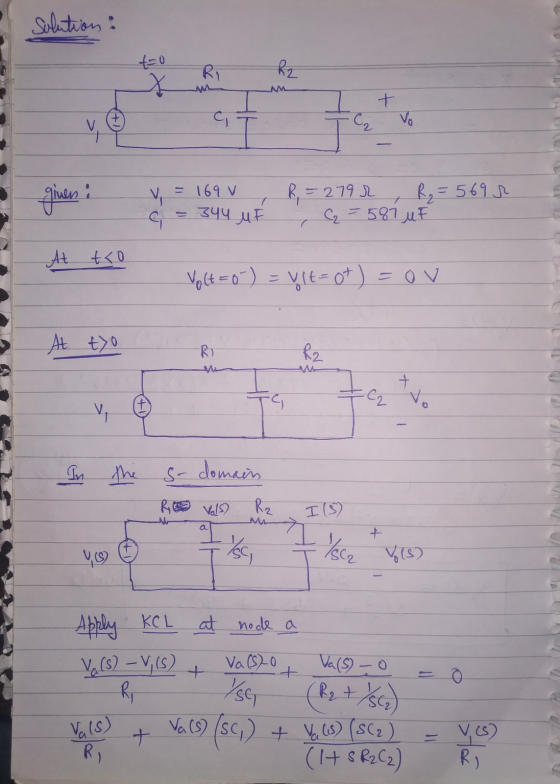

Question 5 (30 points) RO x + vo R1 = 279 ohms Find the voltage vo(t)...
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain...
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, ,R3, R4, C1, t, and s what is the s-domain equation for voltage at node out? In terms of Vo, RI, R2, R3, R4, CI, t, and s what is the equation for τ? If the voltage V1 at time-0 is 1 V R1-1...
For the circuit shown below: Preview In terms of Vo, R1, R2, R3, R4 C1, t, and s what is the time domain equation for the voltage at node out? Preview and s what is the s-domain equation the voltage...
For the circuit shown below: Preview In terms of Vo, R1, R2, R3, R4 C1, t, and s what is the time domain equation for the voltage at node out? Preview and s what is the s-domain equation the voltage at node out? In terms of Vo, RI, R2, R3,R4, C1, t, Preview and s what is the equation for τ? In terms ofVo, RI, R2, R3, R4, Cl, t, Ifthe voltage V1 at time-0 is 3 V RI=4 kQ,...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the freq...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the frequency domain equation the voltage at node out? Preview In terms of Vo. R1. R2. R3. R4. Cl.t. and s what is the equation for t? Preview Ifthe voltage vi at tune-0 is 3 V RI"? kQ....
R1 fR2) fC1) For the circuit shown below: In terms of Vo, RI, R2 CI, t, and s what is the time do...
R1 fR2) fC1) For the circuit shown below: In terms of Vo, RI, R2 CI, t, and s what is the time domain equation for V at node l? In terms of Vo, RI,R2, C1,t, and s what is the s-domain equation for V at node 1? In terms of Vo, R1, R2, C1, t, and s what is the equation for τ? If the voltage at time-0 is 7 V R 1-1 kQ, R2-1 kΩ and C 1-3 μF...
Question 8: 1. Redraw the circuit shown below with the s domain equivalent models, where V1(t)...
Question 8: 1. Redraw the circuit shown below with the s domain equivalent models, where V1(t) is a step function from 0 to 1V at t-0 2. Find transfer function in the s domain H( 3. Write the s-domain equation for Vout(s) if V1(s) is a 1V step function. 4. Write the equation of r of the circuit in terms of R's and C 5. Write the equation for the step response in the time domain. 6. You can either...
For the amplifier circuits in Figs.3 and 7: a. Write an expression for the output voltage,...
For the amplifier circuits in Figs.3 and 7:
a. Write an expression for the output voltage, vo, in terms of
the resistor symbols and the input voltage, vin.
---For the first circuit (Fig. 3), the feedback resistor is the
series combination of R2 and R3. Use both of these resistor symbols
in your expression.
-- For circuit 2 (Fig. 7), assume that vin = 5V and ignore
potentiometer R1 and C3.
b. Using resistor values and input voltage amplitudes, calculate...
Good morning, I need help with the following, they all relate to OP Amps. Thanks in advance. 2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circ...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
Please use either voltage for the battery, either the one stated on the question or in...
Please use either voltage for the battery,
either the one stated on the question or in diagram
Problem 7 (10 points) - - 9 An RC circuit is constructed from two resistors Ri 25 Ω and R2 50 12, two capacitors Ci = 30 uF and c2 = 40 uF, a 45.0 V battery and a switch. At time t = 0 sec the charge on the two ca- pacitors is zero and the current in the circuit is zero....
For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, ,R3, R4, C1, t, and s what is the s-domain equation for voltage at node out? In terms of Vo, RI, R2, R3, R4, CI, t, and s what is the equation for τ? If the voltage V1 at time-0 is 1 V R1-1...
For the circuit shown below: Preview In terms of Vo, R1, R2, R3, R4 C1, t, and s what is the time domain equation for the voltage at node out? Preview and s what is the s-domain equation the voltage at node out? In terms of Vo, RI, R2, R3,R4, C1, t, Preview and s what is the equation for τ? In terms ofVo, RI, R2, R3, R4, Cl, t, Ifthe voltage V1 at time-0 is 3 V RI=4 kQ,...
QUESTION 1 5 points Save Answer A resistor R = 2k Ohms has a voltage V = 15 Volts. What is the current I through the resistor? Express your answer in mA. QUESTION 2 5 points Save Answer Three resistors are connected in series: R1 10k Ohms, R2 = 17k Ohms, R3 = 32k Ohms. A DC voltage source ( Volts) is connected across the three resistors. Determine the current I in mA. 7 QUESTION 3 5 points Save Answer...
For the circuit shown below In terms of Vo. RI. R2, R3. R4 Cİ.t and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, R3 R4, C1,t, and s what is the frequency domain equation the voltage at node out? Preview In terms of Vo. R1. R2. R3. R4. Cl.t. and s what is the equation for t? Preview Ifthe voltage vi at tune-0 is 3 V RI"? kQ....
R1 fR2) fC1) For the circuit shown below: In terms of Vo, RI, R2 CI, t, and s what is the time domain equation for V at node l? In terms of Vo, RI,R2, C1,t, and s what is the s-domain equation for V at node 1? In terms of Vo, R1, R2, C1, t, and s what is the equation for τ? If the voltage at time-0 is 7 V R 1-1 kQ, R2-1 kΩ and C 1-3 μF...
Question 8: 1. Redraw the circuit shown below with the s domain equivalent models, where V1(t) is a step function from 0 to 1V at t-0 2. Find transfer function in the s domain H( 3. Write the s-domain equation for Vout(s) if V1(s) is a 1V step function. 4. Write the equation of r of the circuit in terms of R's and C 5. Write the equation for the step response in the time domain. 6. You can either...
For the amplifier circuits in Figs.3 and 7:
a. Write an expression for the output voltage, vo, in terms of
the resistor symbols and the input voltage, vin.
---For the first circuit (Fig. 3), the feedback resistor is the
series combination of R2 and R3. Use both of these resistor symbols
in your expression.
-- For circuit 2 (Fig. 7), assume that vin = 5V and ignore
potentiometer R1 and C3.
b. Using resistor values and input voltage amplitudes, calculate...
Good morning, I need help with the following, they all relate to
OP Amps. Thanks in advance.
2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
Please use either voltage for the battery,
either the one stated on the question or in diagram
Problem 7 (10 points) - - 9 An RC circuit is constructed from two resistors Ri 25 Ω and R2 50 12, two capacitors Ci = 30 uF and c2 = 40 uF, a 45.0 V battery and a switch. At time t = 0 sec the charge on the two ca- pacitors is zero and the current in the circuit is zero....
