A physical pendulum consists of 0.56 m long sticks joined together as shown in the figure....

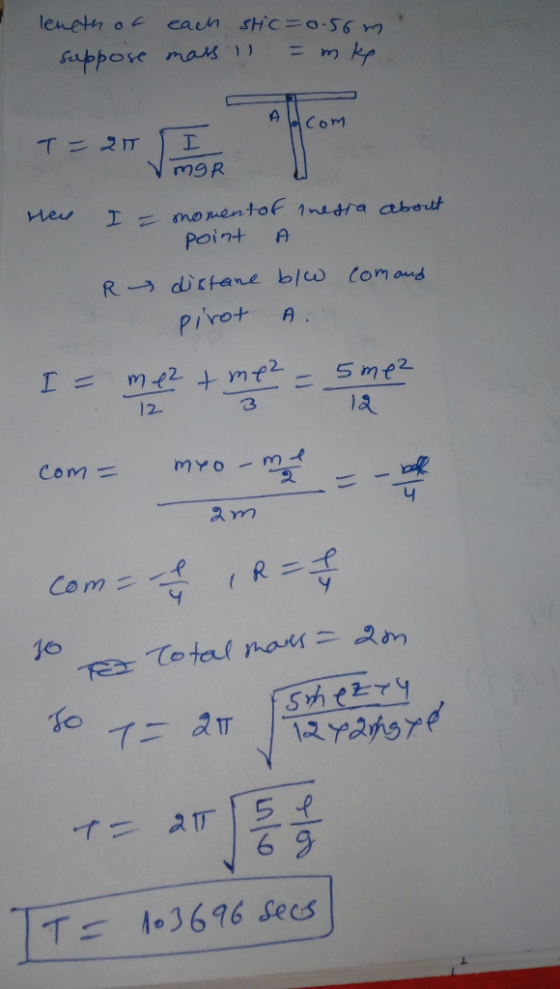

A physical pendulum consists of 0.56 m long sticks joined together as shown in the figure. What is the pendulum's period of oscillation about a pin inserted through point A at the center of the horizontal stick?
Homework Answers
Add Answer to:
A physical pendulum consists of 0.56 m long sticks joined
together as shown in the figure....
Q23 A physical pendulum consists of a uniform meter stick that is pivoted at a small...
Q23 A physical pendulum consists of a uniform meter stick that is pivoted at a small hole drilled through the stick at point O, which is at distance x from the center of mass of the stick, as shown in Figure 13. The period of oscillation is 2.5 s. What is the value of x? L/2 L/2 A) 0.056 nm B) 0.123 m C) 0.215 m D) 0.079 mm E) 0.432 m
A physical pendulum consists of a meter stick that is pivoted at a small hole drilled...
A physical pendulum consists of a meter stick that is pivoted at a small hole drilled through the stick a distance x from the 50 cm mark. The period of oscillation is observed to be 2.9 s. Find the distance x. m
The Physical Pendulum Points:3 A uniform stick of length L 1.0 m, width w 10.0 cm,...
The Physical Pendulum Points:3 A uniform stick of length L 1.0 m, width w 10.0 cm, and mass M = 1.9 kg oscillates as a physical pendulum and pivots about point O as shown in the Figure. what is the period of the pendulum if x, the distance from the pivot point to the center of gravity of the pendulum, is equal to 0.30 m? し2 L/2 0.4977s Tries 2/10 Previous Tries Determine the distance x for which the period...
The pendulum in the figure consists of a uniform disk with radius r = 11.0 cm...
The pendulum in the figure consists of a uniform disk with radius r = 11.0 cm and mass 400 g attached to a uniform rod with length L = 410 mm and mass 250 g. (a) Calculate the rotational inertia of the pendulum about the pivot point. (b) What is the distance between the pivot point and the center of mass of the pendulum? (c) Calculate the period of oscillation.
The Physical Pendulum. A pendulum is formed by hanging a 60cm long stick of mass m...
The Physical Pendulum. A pendulum is formed by hanging a 60cm long stick of mass m from a pivot, as shown at left. Find the angular acceleration of the pendulum when the pendulum is displaced by a small angle θ, and show that the motion is simple harmonic motion in the limit of small oscillations. Find the period of the pendulum in this limit.
A. (10 points) A physical pendulum consists of a uniform rod of mass m and length...
A. (10 points) A physical pendulum consists of a uniform rod of mass m and length L pivoting by its end as shown. If the rod makes 14 complete oscillations in 17 seconds, what is the length of the rod? Solve completely symbolically before inserting values. B. (10 points) Now consider a uniform rod of mass m and length L pivoting the rod about a point L/5 from its end. What is the period of the rod? Solve completely symbolically....
A. (10 points) A physical pendulum consists of a uniform rod of mass m and length...
A. (10 points) A physical pendulum consists of a uniform rod of mass m and length L pivoting by its end as shown. If the rod makes 14 complete oscillations in 17 seconds, what is the length of the rod? Solve completely symbolically before inserting values. B. (10 points) Now consider a uniform rod of mass m and length L pivoting the rod about a point L/5 from its end. What is the period of the rod? Solve completely symbolically....
Figure 3 Uniform disk Uniform rod 3) Figure 3 illustrates a physical pendulum comprising a uniform disk having mass M and radius R and a rod having the length R and mass M. The disk is pivotally m...
Figure 3 Uniform disk Uniform rod 3) Figure 3 illustrates a physical pendulum comprising a uniform disk having mass M and radius R and a rod having the length R and mass M. The disk is pivotally mounted with a friction-less horizontal axis of rotation that extends through the center of mass of the disk. The rod is fixedly attached to the edge of the disk and it extends vertically downward when the pendulum is in a state of static...
Consider a simple pendulum that is 1.05 m long. It swings (oscillates) on a planet where...
Consider a simple pendulum that is 1.05 m long. It swings (oscillates) on a planet where gravity is 1/3 the value of gravity on the Earth. What is the pendulum's period of oscillation?
Q23 A physical pendulum consists of a uniform meter stick that is pivoted at a small hole drilled through the stick at point O, which is at distance x from the center of mass of the stick, as shown in Figure 13. The period of oscillation is 2.5 s. What is the value of x? L/2 L/2 A) 0.056 nm B) 0.123 m C) 0.215 m D) 0.079 mm E) 0.432 m
The Physical Pendulum Points:3 A uniform stick of length L 1.0 m, width w 10.0 cm, and mass M = 1.9 kg oscillates as a physical pendulum and pivots about point O as shown in the Figure. what is the period of the pendulum if x, the distance from the pivot point to the center of gravity of the pendulum, is equal to 0.30 m? し2 L/2 0.4977s Tries 2/10 Previous Tries Determine the distance x for which the period...
A. (10 points) A physical pendulum consists of a uniform rod of mass m and length L pivoting by its end as shown. If the rod makes 14 complete oscillations in 17 seconds, what is the length of the rod? Solve completely symbolically before inserting values. B. (10 points) Now consider a uniform rod of mass m and length L pivoting the rod about a point L/5 from its end. What is the period of the rod? Solve completely symbolically....
A. (10 points) A physical pendulum consists of a uniform rod of mass m and length L pivoting by its end as shown. If the rod makes 14 complete oscillations in 17 seconds, what is the length of the rod? Solve completely symbolically before inserting values. B. (10 points) Now consider a uniform rod of mass m and length L pivoting the rod about a point L/5 from its end. What is the period of the rod? Solve completely symbolically....
Figure 3 Uniform disk Uniform rod 3) Figure 3 illustrates a physical pendulum comprising a uniform disk having mass M and radius R and a rod having the length R and mass M. The disk is pivotally mounted with a friction-less horizontal axis of rotation that extends through the center of mass of the disk. The rod is fixedly attached to the edge of the disk and it extends vertically downward when the pendulum is in a state of static...
