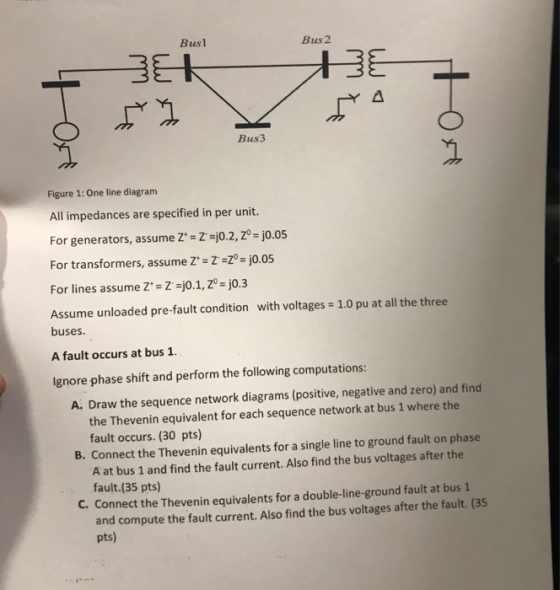

Busl Bus2 Bus3 Figure 1: One line diagram All impedances are specified in per unit. For...

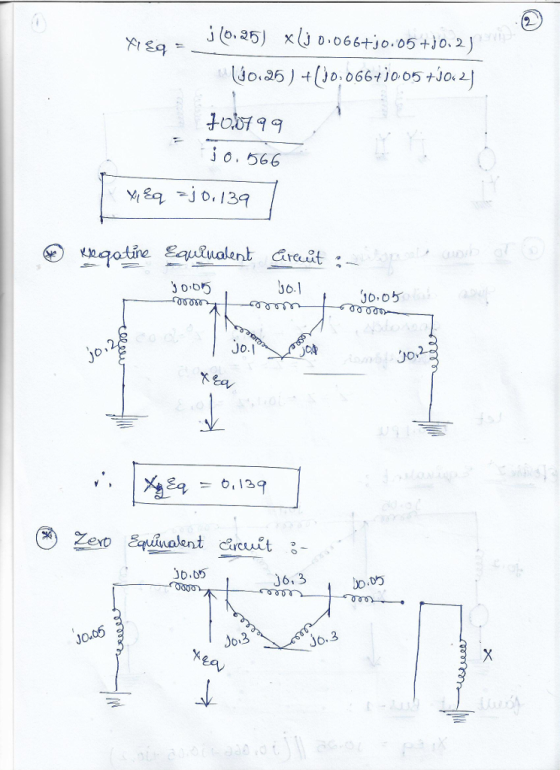

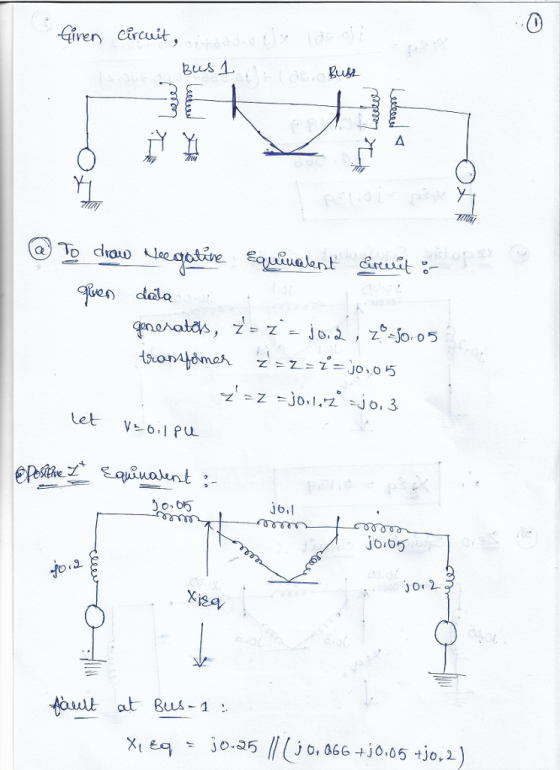

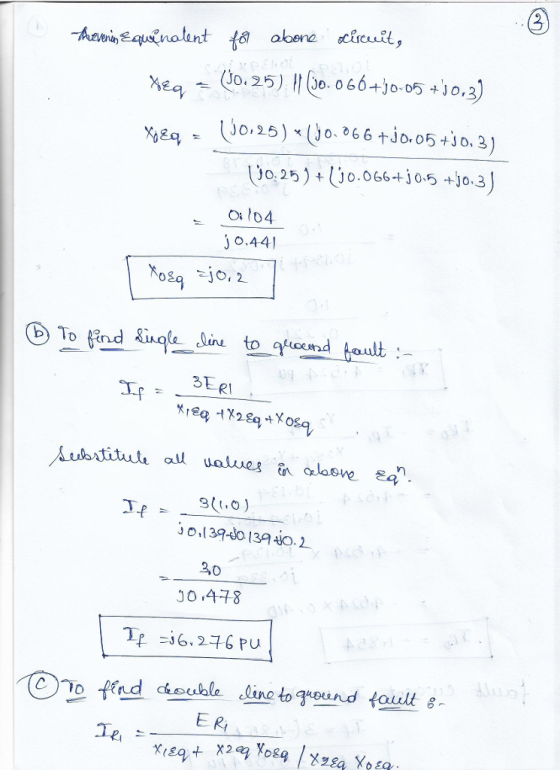

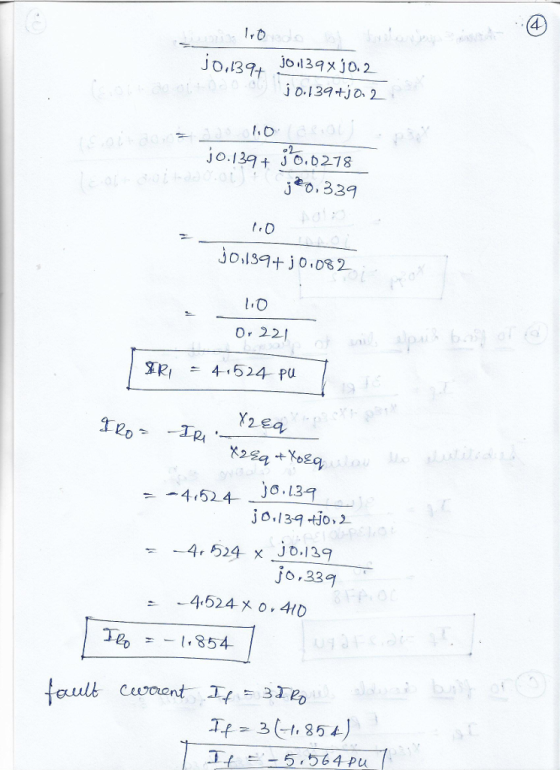

Problem5 1 pu The per-unit line impedances between buses 1-6 in the system shown above ane 1-2 0....
Problem5 1 pu The per-unit line impedances between buses 1-6 in the system shown above ane 1-2 0.01+j0.05 0.006 j0.08 0.008+j0.04 0.02+j0.1 0.003+j0.02 2-3 4-5 5-6 Fill in the following tables for the cases when there is a three-phase ground fault at the indicated bus. Here I is the current through breaker B and V is the voltage at bus k fault at bus 1 111 fault at bus
Problem5 1 pu The per-unit line impedances between buses 1-6 in...
The one-line diagram of a three-bus power system is shown in Figure 4. All impedances are...
The one-line diagram of a three-bus power system is shown in
Figure 4. All impedances are
expressed in per unit on a common MVA base. All resistances and
shunt capacitances are
neglected. Information on each component in this system is given
below:
• Each generator is represented by an emf
behind the sub-transient reactance of j0.045
and their neutrals are connected to the
ground.
• Line 1-2 has reactance of j0.88
• Line 2-3 has reactance of j0.65
• Line...
A single line diagram of a power system is shown in Fig. 2. The system data with equipment ratings and assumed sequence reactances are given the following table. The neutrals of the generator and A-Y...
A single line diagram of a power system is shown in Fig. 2. The system data with equipment ratings and assumed sequence reactances are given the following table. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn 0.05 per unit on the motor base. Assume that Pre-fault voltage is takin as VF-1.0 ,0° per unit and Pre- fault load current and Δ-Y transformer phase shift are neglected In the...
Calculate the per-unit, subtransient fault currents for: a) a bolted single line to ground short circuit...
Calculate the per-unit, subtransient fault currents for:
a) a bolted single line to ground short circuit from from
phase to a ground at bus 3. Also calculate the per-unit line to
ground voltages at faulted bus 3, and the line currents.
b) a bolted line to line fault from phase b to c at bus 3.
Also calculate the per-unit line to ground voltages at faulted bus
3.
c) a bolted double lime to ground from phase b to c...
Bus A Bus B R1 TI ine 1 20% 80% line 2 T2 R2 110 kV 11 kV The fault is located at point F, which ...
Bus A Bus B R1 TI ine 1 20% 80% line 2 T2 R2 110 kV 11 kV The fault is located at point F, which is 20% of the total line 2 length from Bus B Fault MVA 1524.20471 Three-phase fault level in MVA at bus A SPFL (kA) 8 MVA1 MVA2 X1 (96 X2 (96) R1 (2) R2 (Q) z' (Q) Zo (2) Rf (Q) Single phase to ground fault level (kA) at bus A Transformer 1 MVA...
The single-line diagram of a four-bus system and its bus impedance matrix are shown below BUS...
The single-line diagram of a four-bus system and its bus impedance matrix are shown below BUS 2 0.25 j0.2 0.125 0.25 0.4 BUS 3 BUS 1 BUS 4 j0.1 0.1 j0.2 j0.2 ground is the reference node) 0.25 0.2 0.16 0.14 0.2 0.23 0.15 0.151 ZBUs =기0.16 0.15 0.196 0.1 0.14 0.151 0. 0.195 A solid three-phase fault occurs at bus 2 of the network. (a) Calculate the initial symmetrical RMS current in the fault. (b) Determine the voltages during...
The single line diagram of a power network is shown in the figure. Bus#1 is a slack bus. The sche...
The single line diagram of a power network is shown in the figure. Bus#1 is a slack bus. The scheduled powers for bus#2 and bus#3 are given. The impedances shown in the figure are all in per-unit considering a power base of 100 MVA. 30 400 MW 320 MVAr Slack V-1400.0125 jo.os 3 300 MW 270 MVAr A. Use the Gauss Seidel technique to determine voltages at bus#2 & bus#3. (Start with an initial guess 140 for both buses). [Only...
2. A single-line diagram of the power system considered is shown in Figure P2a, where negative-...
2. A single-line diagram of the power system considered is shown in Figure P2a, where negative- and zero-sequence reactances are also given. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn = 0.05 per unit on the motor base. The per-unit zero-, positive and negative-sequence networks on a 100-MVA is shown in Figure P26, 13.8-kV base in the zone of the generator. a. Reduce the sequence networks to their...
Figure 1 Single line diagram b2 b3 b1 b4 grid Τι 13 A power system single line diagram is shown...
Figure 1 Single line diagram b2 b3 b1 b4 grid Τι 13 A power system single line diagram is shown in Figure 1. The single line diagram shows a synchronous generator G connected to a large 50 Hz grid via its unit transformer T and a network of three transmission lines. Relevant details of the grid, transformer, generator and overhead lines are provided in Tables I,II,II & IV respectively. A double line to ground fault occurs at bus 3 Questions....
The one line diagram of a three-phase power system is shown in Fig.8. Impedances are marked...
The one line diagram of a three-phase power system is shown in
Fig.8. Impedances are marked in per unit on a 100 MW, 400 kV base.
The Load at Bus 2 is S2 = 15.93 MW - j33.4Mvar, and at Bus 3 is S3
= 77 MW + j14 Mvar. It is required to hold the voltage at Bus 3 at
400 kV, Angle 0 degs. Working in per unit, determine the voltages
at Buses 2 and 1.
Q8: The...
Problem5 1 pu The per-unit line impedances between buses 1-6 in the system shown above ane 1-2 0.01+j0.05 0.006 j0.08 0.008+j0.04 0.02+j0.1 0.003+j0.02 2-3 4-5 5-6 Fill in the following tables for the cases when there is a three-phase ground fault at the indicated bus. Here I is the current through breaker B and V is the voltage at bus k fault at bus 1 111 fault at bus
Problem5 1 pu The per-unit line impedances between buses 1-6 in...
The one-line diagram of a three-bus power system is shown in
Figure 4. All impedances are
expressed in per unit on a common MVA base. All resistances and
shunt capacitances are
neglected. Information on each component in this system is given
below:
• Each generator is represented by an emf
behind the sub-transient reactance of j0.045
and their neutrals are connected to the
ground.
• Line 1-2 has reactance of j0.88
• Line 2-3 has reactance of j0.65
• Line...
A single line diagram of a power system is shown in Fig. 2. The system data with equipment ratings and assumed sequence reactances are given the following table. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn 0.05 per unit on the motor base. Assume that Pre-fault voltage is takin as VF-1.0 ,0° per unit and Pre- fault load current and Δ-Y transformer phase shift are neglected In the...
Calculate the per-unit, subtransient fault currents for:
a) a bolted single line to ground short circuit from from
phase to a ground at bus 3. Also calculate the per-unit line to
ground voltages at faulted bus 3, and the line currents.
b) a bolted line to line fault from phase b to c at bus 3.
Also calculate the per-unit line to ground voltages at faulted bus
3.
c) a bolted double lime to ground from phase b to c...
Bus A Bus B R1 TI ine 1 20% 80% line 2 T2 R2 110 kV 11 kV The fault is located at point F, which is 20% of the total line 2 length from Bus B Fault MVA 1524.20471 Three-phase fault level in MVA at bus A SPFL (kA) 8 MVA1 MVA2 X1 (96 X2 (96) R1 (2) R2 (Q) z' (Q) Zo (2) Rf (Q) Single phase to ground fault level (kA) at bus A Transformer 1 MVA...
The single-line diagram of a four-bus system and its bus impedance matrix are shown below BUS 2 0.25 j0.2 0.125 0.25 0.4 BUS 3 BUS 1 BUS 4 j0.1 0.1 j0.2 j0.2 ground is the reference node) 0.25 0.2 0.16 0.14 0.2 0.23 0.15 0.151 ZBUs =기0.16 0.15 0.196 0.1 0.14 0.151 0. 0.195 A solid three-phase fault occurs at bus 2 of the network. (a) Calculate the initial symmetrical RMS current in the fault. (b) Determine the voltages during...
The single line diagram of a power network is shown in the figure. Bus#1 is a slack bus. The scheduled powers for bus#2 and bus#3 are given. The impedances shown in the figure are all in per-unit considering a power base of 100 MVA. 30 400 MW 320 MVAr Slack V-1400.0125 jo.os 3 300 MW 270 MVAr A. Use the Gauss Seidel technique to determine voltages at bus#2 & bus#3. (Start with an initial guess 140 for both buses). [Only...
2. A single-line diagram of the power system considered is shown in Figure P2a, where negative- and zero-sequence reactances are also given. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn = 0.05 per unit on the motor base. The per-unit zero-, positive and negative-sequence networks on a 100-MVA is shown in Figure P26, 13.8-kV base in the zone of the generator. a. Reduce the sequence networks to their...
Figure 1 Single line diagram b2 b3 b1 b4 grid Τι 13 A power system single line diagram is shown in Figure 1. The single line diagram shows a synchronous generator G connected to a large 50 Hz grid via its unit transformer T and a network of three transmission lines. Relevant details of the grid, transformer, generator and overhead lines are provided in Tables I,II,II & IV respectively. A double line to ground fault occurs at bus 3 Questions....
The one line diagram of a three-phase power system is shown in
Fig.8. Impedances are marked in per unit on a 100 MW, 400 kV base.
The Load at Bus 2 is S2 = 15.93 MW - j33.4Mvar, and at Bus 3 is S3
= 77 MW + j14 Mvar. It is required to hold the voltage at Bus 3 at
400 kV, Angle 0 degs. Working in per unit, determine the voltages
at Buses 2 and 1.
Q8: The...
