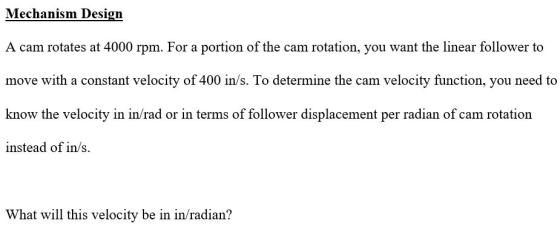

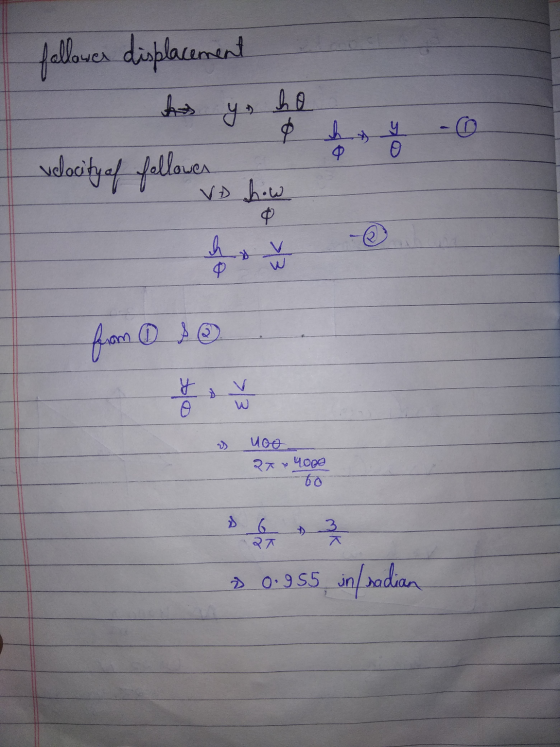

Mechanism Design A cam rotates at 4000 rpm. For a portion of the cam rotation, you...
5. An inverted crank sider mechanism is shown below. The crank length is 20 cm. The...
5. An inverted crank sider mechanism is shown below. The crank length is 20 cm. The length of the ground link is 50 cm. The crank rotates at a constant angular velocity of 2000 rpm (ccw) The crank shaft and the follower are considered massless in this problem. The slider as a coupler has a mass of 0.25 kg with a mass center as A3, and a mass moment of inertia of 0.125 kg-m i) Conduct the kinematical analysis by...
DYNAMICS An internal combustion engine slider-crank mechanism is shown in the figure. Crank AB rotates in...
DYNAMICS
An internal combustion engine slider-crank mechanism is shown in the figure. Crank AB rotates in selected clockwise positive direction as shown. Piston position is Y=AD. e(t) is angular position of the crank, ó(t) is angular velocity of the crank, ő is angular acceleration of the crank, y Р D 150 mm А e B - - X 50 mm 5) Crank AB rotates starting from rest with a constant angular acceleration of 0.25 rad/sec? ( = 0.25 rad/sec? )...
An internal combustion engine slider-crank mechanism is shown in the figure. Crank AB rotates in selected...
An internal combustion engine slider-crank mechanism is shown in the figure. Crank AB rotates in selected clockwise positive direction as shown. Piston position is Y=AD. e(t) is angular position of the crank, ó(t) is angular velocity of the crank, ő is angular acceleration of the crank, 4) Crank AB rotates starting from rest with a constant angular acceleration of 0.25 rad/sec? ( = 0.25 rad/sec² ) clockwise in positive 0 direction as shown Perform computer simulations using above formulas to...
i need help asap Problem 3 (20 points): The modified sinusoidal acceleration function for the rise...
i
need help asap
Problem 3 (20 points): The modified sinusoidal acceleration function for the rise function in the double dwell cam design is show in the following figure. A B/2 0B/8 1) Suppose the rise is from 7/8 B to 7, what is the value for B? ( 2 points) 2) The acceleration function in zone D Ses B) is sin ( 41 (-1)), derive the jerk function in zone D. (2 points) 3) What is the value of...
Whal are the position, welocity and acceleration of the obiecf afer 1.00 seconds? ivi) (5 marks) 300 rad/s 13. 600...
Whal are the position, welocity and acceleration of the obiecf afer 1.00 seconds? ivi) (5 marks) 300 rad/s 13. 600 A 50 mm 170 mm Consider the slider-crank mechanism above. The crank rotates at a constant angular velocity of 300 rad/second. (0 What is the velocity of B relative to A. V? (4 marks) () Draw a half scale diagram of the mechanism itself Show on the diagram the line of the velocity of B relative to A (1 mark)...
Problem # 2 Will rate PHY 231 II1 Class Test Fall 2017 This is Class Test...
Problem # 2
Will rate
PHY 231 II1 Class Test Fall 2017 This is Class Test 3 (6 PM to 8 PM on 26th October 2017). Answer only 6. Each problem carries the same oints. Total point is 30 (5x6). You have to show the every step to solve the problem (2 points ex).1 point or correct formula. 1 point for correct figure and 1 point accuracy. 1) An airplane propeller is rotating at 2200 rpm (rev/min), (a) Compute the...
QUESTION 6 Зро Design a second-order IIR digital low-pass filter using Butterworth approximation....
QUESTION 6 Зро Design a second-order IIR digital low-pass filter using Butterworth approximation. Use the bilinear transformation to convert the analogue fiter to a digital one (choose the sampling period T- 2 s and the cut-off frequency as 1 rad/'s). Express the digital transfer function of the filter H(z) as: In the box below, provide the numerical answer for b1. [Note: Don't normalise the transfer func on, i.e. b0 # 1). r98111acontentid1837836_1&step QUESTION 7 Windowing based FIR filter design techniques...
You are the designer and you have been asked to design a speed reducer (gearbox) that will take p...
power = 3 kW
if need any more information please ask !!!
You are the designer and you have been asked to design a speed reducer (gearbox) that will take power from the shaft of an electric motor rotating at 1500 rpm and deliver it to a machine that is to operate at approximately at 200 rpm Assume that you have decided to use spur gears to transmit the power [A power equal to the last one digits of your...
QUESTION 1 Characterise the following systems as being either causal on anticausal: yn)-ePyn-1)+u...
QUESTION 1 Characterise the following systems as being either causal on anticausal: yn)-ePyn-1)+u/n), where u/h) is the unit step and B is an arbitrary constant (B>0), Take y-1)-0. Answer with either causal or 'anticausal only QUESTION 2 For the following system: yn) -yn-1Va -x(n), for a 0.9, find y(10), assuming y(n) - o, for ns -1.Hint: find a closed form for yin) and use it to find the required output sample. (xin)-1 for n>-0) QUESTION 3 A filter has the...
Please do this in Matlab. Not sure if you need this code: e cofunction [x, er,...
Please do this in Matlab.
Not sure if you need this code:
e cofunction [x, er, n] = FixedPoint(g, x1, maxtol, maxitr)
if nargin < 4, maxitr = 25; end
if nargin < 3, maxtol = 1e-3; end
k = 0 ;
er = 1;
x = x1;
while er >= maxtol && k < maxitr
k=k+1;
xold = x;
x=g(x);
er=abs((x-xold)/x);
fprintf('iter = %i, x = %e, er = %e ', k,x,er);
end
n=k;
if n ==...
5. An inverted crank sider mechanism is shown below. The crank length is 20 cm. The length of the ground link is 50 cm. The crank rotates at a constant angular velocity of 2000 rpm (ccw) The crank shaft and the follower are considered massless in this problem. The slider as a coupler has a mass of 0.25 kg with a mass center as A3, and a mass moment of inertia of 0.125 kg-m i) Conduct the kinematical analysis by...
DYNAMICS
An internal combustion engine slider-crank mechanism is shown in the figure. Crank AB rotates in selected clockwise positive direction as shown. Piston position is Y=AD. e(t) is angular position of the crank, ó(t) is angular velocity of the crank, ő is angular acceleration of the crank, y Р D 150 mm А e B - - X 50 mm 5) Crank AB rotates starting from rest with a constant angular acceleration of 0.25 rad/sec? ( = 0.25 rad/sec? )...
An internal combustion engine slider-crank mechanism is shown in the figure. Crank AB rotates in selected clockwise positive direction as shown. Piston position is Y=AD. e(t) is angular position of the crank, ó(t) is angular velocity of the crank, ő is angular acceleration of the crank, 4) Crank AB rotates starting from rest with a constant angular acceleration of 0.25 rad/sec? ( = 0.25 rad/sec² ) clockwise in positive 0 direction as shown Perform computer simulations using above formulas to...
i
need help asap
Problem 3 (20 points): The modified sinusoidal acceleration function for the rise function in the double dwell cam design is show in the following figure. A B/2 0B/8 1) Suppose the rise is from 7/8 B to 7, what is the value for B? ( 2 points) 2) The acceleration function in zone D Ses B) is sin ( 41 (-1)), derive the jerk function in zone D. (2 points) 3) What is the value of...
Whal are the position, welocity and acceleration of the obiecf afer 1.00 seconds? ivi) (5 marks) 300 rad/s 13. 600 A 50 mm 170 mm Consider the slider-crank mechanism above. The crank rotates at a constant angular velocity of 300 rad/second. (0 What is the velocity of B relative to A. V? (4 marks) () Draw a half scale diagram of the mechanism itself Show on the diagram the line of the velocity of B relative to A (1 mark)...
Problem # 2
Will rate
PHY 231 II1 Class Test Fall 2017 This is Class Test 3 (6 PM to 8 PM on 26th October 2017). Answer only 6. Each problem carries the same oints. Total point is 30 (5x6). You have to show the every step to solve the problem (2 points ex).1 point or correct formula. 1 point for correct figure and 1 point accuracy. 1) An airplane propeller is rotating at 2200 rpm (rev/min), (a) Compute the...
QUESTION 6 Зро Design a second-order IIR digital low-pass filter using Butterworth approximation. Use the bilinear transformation to convert the analogue fiter to a digital one (choose the sampling period T- 2 s and the cut-off frequency as 1 rad/'s). Express the digital transfer function of the filter H(z) as: In the box below, provide the numerical answer for b1. [Note: Don't normalise the transfer func on, i.e. b0 # 1). r98111acontentid1837836_1&step QUESTION 7 Windowing based FIR filter design techniques...
power = 3 kW
if need any more information please ask !!!
You are the designer and you have been asked to design a speed reducer (gearbox) that will take power from the shaft of an electric motor rotating at 1500 rpm and deliver it to a machine that is to operate at approximately at 200 rpm Assume that you have decided to use spur gears to transmit the power [A power equal to the last one digits of your...
QUESTION 1 Characterise the following systems as being either causal on anticausal: yn)-ePyn-1)+u/n), where u/h) is the unit step and B is an arbitrary constant (B>0), Take y-1)-0. Answer with either causal or 'anticausal only QUESTION 2 For the following system: yn) -yn-1Va -x(n), for a 0.9, find y(10), assuming y(n) - o, for ns -1.Hint: find a closed form for yin) and use it to find the required output sample. (xin)-1 for n>-0) QUESTION 3 A filter has the...
Please do this in Matlab.
Not sure if you need this code:
e cofunction [x, er, n] = FixedPoint(g, x1, maxtol, maxitr)
if nargin < 4, maxitr = 25; end
if nargin < 3, maxtol = 1e-3; end
k = 0 ;
er = 1;
x = x1;
while er >= maxtol && k < maxitr
k=k+1;
xold = x;
x=g(x);
er=abs((x-xold)/x);
fprintf('iter = %i, x = %e, er = %e ', k,x,er);
end
n=k;
if n ==...
