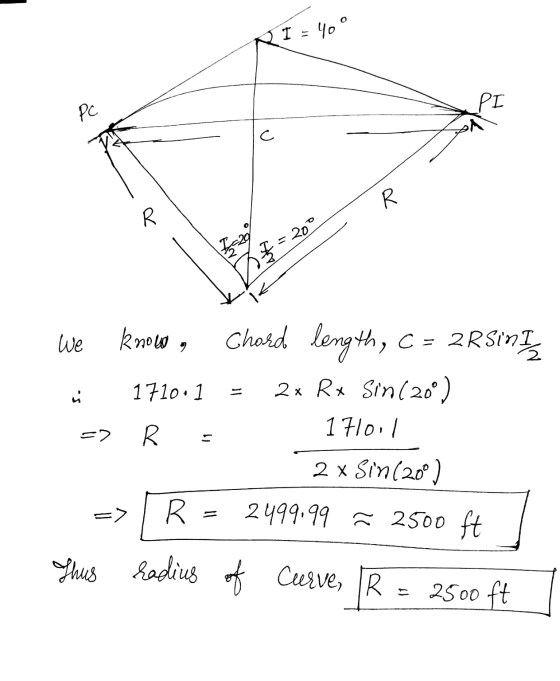

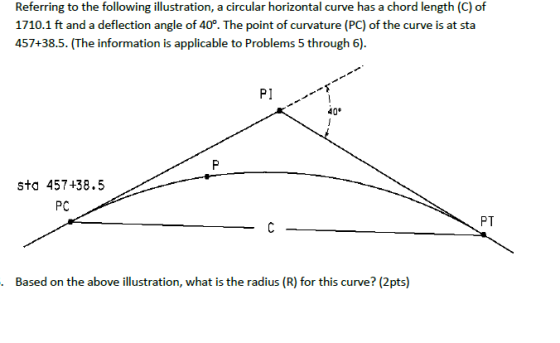

Referring to the following illustration, a circular horizontal curve has a chord length (C) of 1710.1...
HomewUI A circular-horizontal curve to the right has the following characteristics: Δ or l = 8"24...
HomewUI A circular-horizontal curve to the right has the following characteristics: Δ or l = 8"24°00" PI @ Sta. 64+27.46 Dare = 20000" Coordinates of the PI are 1234.56N & 2468.10E R 2864.79 ft The Azimuth of the back tangent is 76 26'30" T = 210.38 ft. (Azimuth from PC to PI) L =420 ft. Draw a sketch and calculate the following: a) The station of the POC b) The coordinates of the PC c) The station of the PT...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI Station: 12+40.00 R-572.96 feet Deflection angle A-12.30 What is the Station of PT? PI PC PT Part B. An existing highway has a historic site located at the PT of an existing curve with a PI located at Station 80+00, an extemal angle of 65°, and a radius of 1,200 ft. The curve must be relocated, moving the PI to Station 78+00. The external...
Question 5 A circular horizontal curve with radius of 1,430 ft and an intersection angle of...
Question 5 A circular horizontal curve with radius of 1,430 ft and an intersection angle of 14°30' has its point of intersection (PI) at station 572+00. The forward tangent is to be shifted parallel to itself and 10 ft to the left. If the point of curve (PC) remains the same place, what is the radius of the shifted curve? [10] sta 672+00 Pt PC PI' 114 30 10 ft PT PT li 0 not to scale
" U pts.) A horizontal curve links two roadway tanrents that deflect at 40 degrees. It...
" U pts.) A horizontal curve links two roadway tanrents that deflect at 40 degrees. It is degree curvature equals 6, answer the below questions. 1. What is the curve's radius? (1 pt.) 2. What is the length of curve? (1 pt.) 3. What is the length of the long chord? (1 pt.) Select a station for the curve's Pl and answer the below questions. 4. What is the station of the PC? (1 pt.) 5. What is the station...
Name: Grade: /10 Dec 3, 2018 w ..CA-Horizontal Curve VI FORT WAYNE Tabulate R or D,...
Name: Grade: /10 Dec 3, 2018 w ..CA-Horizontal Curve VI FORT WAYNE Tabulate R or D, T, L, E, M, PC, PT, deflection angles, and incremental chords to lay out the circular curves at ful stations (100 ft) for the Highway curve with R 1200 ft, I-30°00, and PI station 45+ 50.00 ft. Station Chord Defl. Increment Defl. Angle
1. Given the following horizontal curve data, answer questions a d. R-800 ft, 30°. BC Station Δ 1...
1. Given the following horizontal curve data, answer questions a d. R-800 ft, 30°. BC Station Δ 14+67.21; a. The curve length for the above horizontal curve b. With a theodolite on the BC, what is the deflection angle from PI to station 16+50? c. What is the chord length from station 15+50 to 16+50? d. Holding the PI at the same point, if the radius of the above was changed to 900 ft, what would the new BC stationing...
6:47 1 4 Search <Back Hw#3-2019.doc 15- 10. A horizontal curve is designed for a two-lane...
6:47 1 4 Search <Back Hw#3-2019.doc 15- 10. A horizontal curve is designed for a two-lane road in mountainous terrain. The following data are known. Intersection angle: 40 degrees Tangent length: 436.76 feet Station of Pl: 2700+10.65 fs- 0.12 e- 0.08 Determine the following. (a) Design speed (b) Station of the PC (c) Station of the PT (d) Deflection angle and chord length to the first even 100 ft station. 15-11. A proposed highway has two tangents of bearings N...
5. For a horizontal curve, A=82'30', the station of the PC is 6+14.00, and terrain conditions...
5. For a horizontal curve, A=82'30', the station of the PC is 6+14.00, and terrain conditions require the minimum radius permitted by the specifications of, 100 ft. (are definition). Calculate (15 points): a. The stationing of PI and PT, and the external (E) and middle ordinate distances (M) and chord length (LC) for this curve. b. Compute sub-deflection angles and sub-chords to stake out this curve. Use quarter-stations 1251 (Note: In the example we solved together in class, we used...
Q1) Q 2 ) Exaplin why LiDAR has difficulty determining break lines when scanning the ground ?? 5. Given: the radius...
Q1)
Q 2 ) Exaplin why LiDAR has difficulty determining break lines
when scanning the ground ??
5. Given: the radius of the curve was 1000.00 ft, and A = 45 00'00', Drawing is not to scale. A total station instrument is setup at the PC, backsighting the PI, and 0 set. Determine the angle right (nearest second) and horizontal chord length (nearest 01 ft) to layout station 77+00.00. Assume 77+00.00 is on the curve. 20 pts PT PI POC...
ON2ohtal curves .The deflecti n angle used when sighting back on the curve during a move up was w...
Please complete the chart and explain how to solve number 16.
Thank you.
oN2ohtal curves .The deflecti n angle used when sighting back on the curve during a move up was wrong, causing the curve to get wasn't enough, and the construction equipment removed the stakes. Using the wrong backsight when laying out a curve by QUESTIONS AND PROBLEMS Calculate the missing curve parts in the following Table. Curve# 1 of Curve E M.O. LC 1 18°54' 357.25 2 2930...
HomewUI A circular-horizontal curve to the right has the following characteristics: Δ or l = 8"24°00" PI @ Sta. 64+27.46 Dare = 20000" Coordinates of the PI are 1234.56N & 2468.10E R 2864.79 ft The Azimuth of the back tangent is 76 26'30" T = 210.38 ft. (Azimuth from PC to PI) L =420 ft. Draw a sketch and calculate the following: a) The station of the POC b) The coordinates of the PC c) The station of the PT...
Part A. The following information is for a proposed horizontal curve in a new subdivision: PI Station: 12+40.00 R-572.96 feet Deflection angle A-12.30 What is the Station of PT? PI PC PT Part B. An existing highway has a historic site located at the PT of an existing curve with a PI located at Station 80+00, an extemal angle of 65°, and a radius of 1,200 ft. The curve must be relocated, moving the PI to Station 78+00. The external...
Question 5 A circular horizontal curve with radius of 1,430 ft and an intersection angle of 14°30' has its point of intersection (PI) at station 572+00. The forward tangent is to be shifted parallel to itself and 10 ft to the left. If the point of curve (PC) remains the same place, what is the radius of the shifted curve? [10] sta 672+00 Pt PC PI' 114 30 10 ft PT PT li 0 not to scale
" U pts.) A horizontal curve links two roadway tanrents that deflect at 40 degrees. It is degree curvature equals 6, answer the below questions. 1. What is the curve's radius? (1 pt.) 2. What is the length of curve? (1 pt.) 3. What is the length of the long chord? (1 pt.) Select a station for the curve's Pl and answer the below questions. 4. What is the station of the PC? (1 pt.) 5. What is the station...
Name: Grade: /10 Dec 3, 2018 w ..CA-Horizontal Curve VI FORT WAYNE Tabulate R or D, T, L, E, M, PC, PT, deflection angles, and incremental chords to lay out the circular curves at ful stations (100 ft) for the Highway curve with R 1200 ft, I-30°00, and PI station 45+ 50.00 ft. Station Chord Defl. Increment Defl. Angle
1. Given the following horizontal curve data, answer questions a d. R-800 ft, 30°. BC Station Δ 14+67.21; a. The curve length for the above horizontal curve b. With a theodolite on the BC, what is the deflection angle from PI to station 16+50? c. What is the chord length from station 15+50 to 16+50? d. Holding the PI at the same point, if the radius of the above was changed to 900 ft, what would the new BC stationing...
6:47 1 4 Search <Back Hw#3-2019.doc 15- 10. A horizontal curve is designed for a two-lane road in mountainous terrain. The following data are known. Intersection angle: 40 degrees Tangent length: 436.76 feet Station of Pl: 2700+10.65 fs- 0.12 e- 0.08 Determine the following. (a) Design speed (b) Station of the PC (c) Station of the PT (d) Deflection angle and chord length to the first even 100 ft station. 15-11. A proposed highway has two tangents of bearings N...
5. For a horizontal curve, A=82'30', the station of the PC is 6+14.00, and terrain conditions require the minimum radius permitted by the specifications of, 100 ft. (are definition). Calculate (15 points): a. The stationing of PI and PT, and the external (E) and middle ordinate distances (M) and chord length (LC) for this curve. b. Compute sub-deflection angles and sub-chords to stake out this curve. Use quarter-stations 1251 (Note: In the example we solved together in class, we used...
Q1)
Q 2 ) Exaplin why LiDAR has difficulty determining break lines
when scanning the ground ??
5. Given: the radius of the curve was 1000.00 ft, and A = 45 00'00', Drawing is not to scale. A total station instrument is setup at the PC, backsighting the PI, and 0 set. Determine the angle right (nearest second) and horizontal chord length (nearest 01 ft) to layout station 77+00.00. Assume 77+00.00 is on the curve. 20 pts PT PI POC...
Please complete the chart and explain how to solve number 16.
Thank you.
oN2ohtal curves .The deflecti n angle used when sighting back on the curve during a move up was wrong, causing the curve to get wasn't enough, and the construction equipment removed the stakes. Using the wrong backsight when laying out a curve by QUESTIONS AND PROBLEMS Calculate the missing curve parts in the following Table. Curve# 1 of Curve E M.O. LC 1 18°54' 357.25 2 2930...
