Question

(c) larger thanTJUosot US)」- xael)」 (a) smaller than T. (b) equal to T. Two incompressible fluids are placed in a U-tube as shown in the figure to the right. Both ends of the tube are open. The tube has a cross sectional area A 0.02 m2. One fluid is water (light gray), with density of p 1000 kg/m3. The second fluid is oil (black), with Po-950 kg/m3. The column of water is observed to be a distance h 0.23 m above the point where the water meets the oil. How high d does the oil rise above the water? Ai (a) 5.00 m (b) 0.21 m (c) 0.005 m (d) 0.034 m (e) 0.012 m

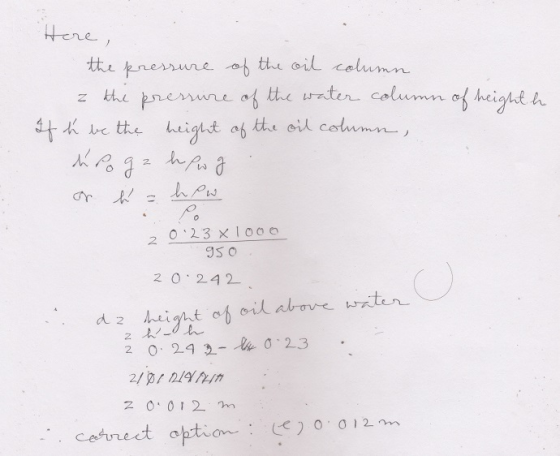

Answer 1
